| SPECIFICATIONS |
| PHYSICAL CHARACTERISTICS |
| Dimension | 319.6*216*24.3 mm |
| Weight | 1500g |
| Display / Touch Panel | Type: IPSSize: 12.2 inch 16:10 Resolution: 1920*1200 Brightness: 650nit （Optional: 280nit ,SLR sunlight visible film）10 point capacitive screen, G+G, Corning gorilla hardness above 7H, scratch resistant, support 930 handwriting |
| Battery | Removable Li-polyment Battery7.4V/6300mAh (Support hot plug)8.5hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )Built in Li-polyment Battery7.4V/1000mAh1hour ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default ) |

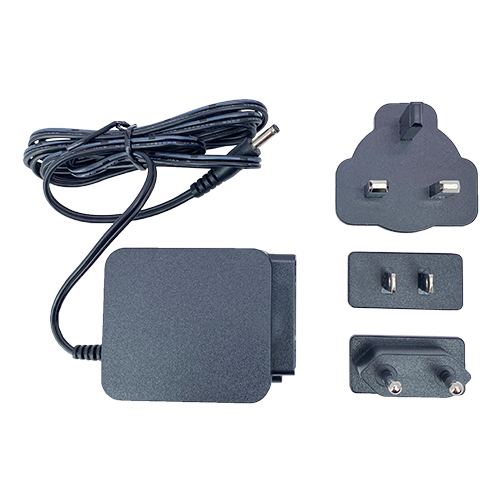

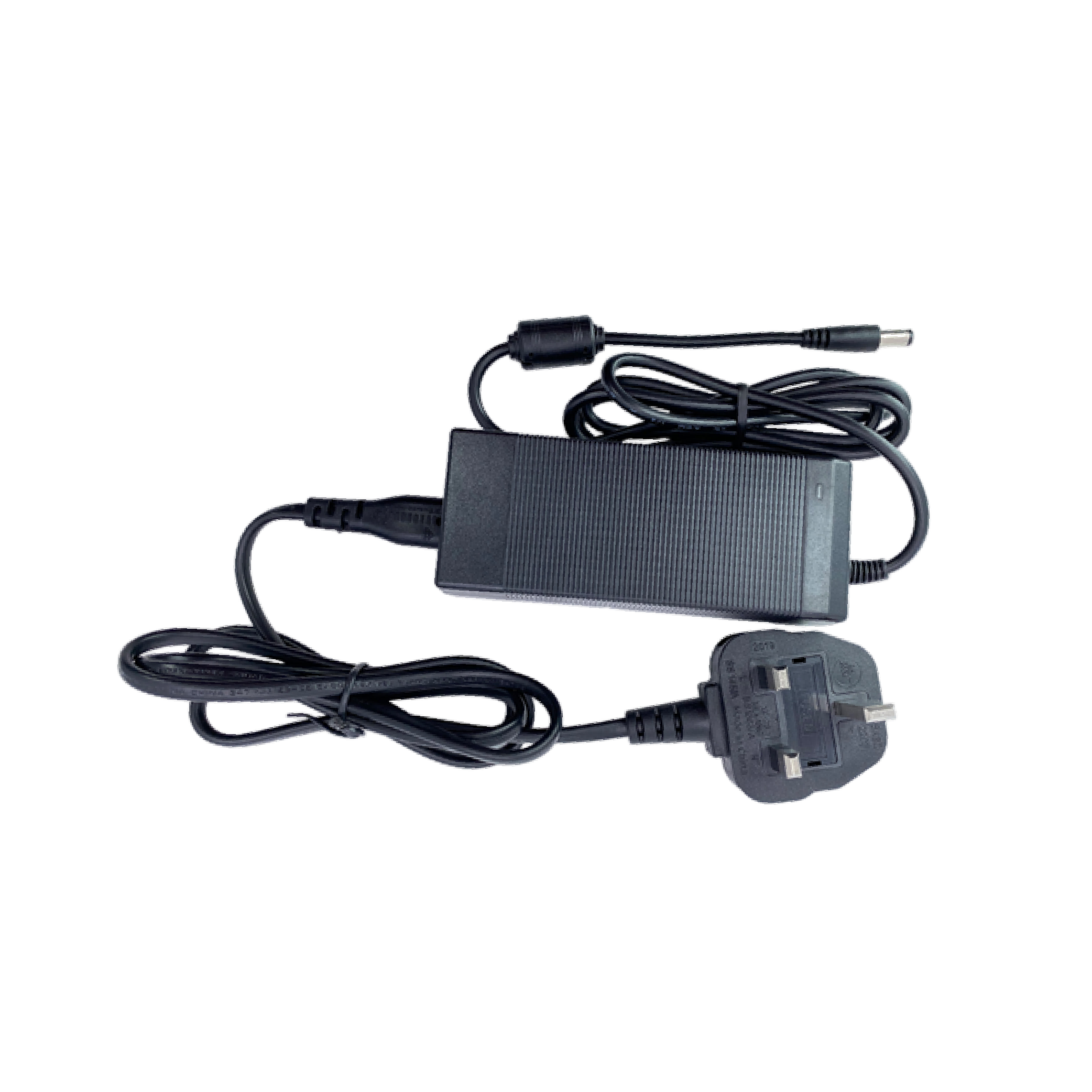

| Power Adapter | 12V4A∮4.0mm Adapter（EU） Optional:(EU, US, UK, AU) Choose one of four |
| Speaker | 8Ω/1W Waterproof BOX Speaker *2 |
| I/O Interfaces | USB 2.0 *1 (4pin) （Host）for windows （0.5A）,USB 3.0 *2Type C *1（USB3.0, Charging, Audio and Video）∮3.5mm standard earphone jack *1TF Card *1 max：512GSIM Card *1DC 19V/3.42A ∮4mm Power connector *1，HDMI 2.0a mini *1DB9 (RS232) *1， DB9 (RS485) *1，RJ45 (100Mbps) *112PIN Pogo Pin (Support Vehicle Mount, Docking Charger and Keyboard) *1USB (Reserved interface of mainboard)Serial port (Reserved interface of mainboard) |
| Buttons | Power *1Volume Adjustment Key (+) *1Volume Adjustment Key (-) *1P1 Key *1 (Windows home )P2 Key *1 (Control panel)F Key *1 (Barcode scanner) (Back of machine) |
| Camera | Front 5.0MP (MIPI) Rear 8.0MP (MIPI) |
| PERFORMANCE CHARACTERSTICS |
| CPU | Intel JASPER LAKE N5100 processor, 4-core 4-thread, embedded 4 MB SmartCache, TDP 6W, max frequency 2.8GHz |
| Operating System | Windows 11 Pro（Optional:Home/IOT） |
| Storage | RAM 8GB ROM 128GB EMMCOptional: 4GB/16GB Optional: 64G/256G/512G |
| USER ENVIRONMENT |
| Operating Temp. | -20℃ to 60℃ |
| Storage Temp. | -30℃ to 70℃ |
| Humidity | 95% Non-Condensing |
| Drop Specifications | MIL-STD-810G: 1.22m drop |
| IP Protective Level | IP65,CE-NB,MIL-STD-810G,CCC,FCC,Battery: UN38.3, MSDS, aviation, marine report, IEC62133 |
| DATA COMMUNICATION |
| WWAN | 2G/3G/4G:MeiG 750 VELTE-FDD: B1/3/5/7/8/20LTE-TDD: B40WCDMA: B1/5/8GSM: 900/1800China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, JapanOptional, South America or North America module5G: Optional,SRM825N M.2，52*30*2.3mm，5G Sub-6GHz，SA&NSA:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 5G SA&NSA:LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32LTE-TDD:B34/B38/B39/B40/B41/B42WCDMA:B1/B5/B85G SA&NSA:LTE-FDD:B1/B3/B5/B8/B28LTE-TDD:B34/B38/B39/B40/B41WCDMA:B1/B8N1/N28/N41/N78/N79 |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.0 (BLE) class1 Transmited distance：10m |
| GPS | Support GPS, Glonass |
| DATA CAPTUER |
| Barcode Scanning (optional) | Honeywell N3680Optical resolution: 5milScanning speed: 50 times/sSupport coding system: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| RFID HF/ NFC (optional) | Support 14443A protocol under ISO/IEC, reading distance: 3-5cm, NXP300 |
| ACCESSORIES |

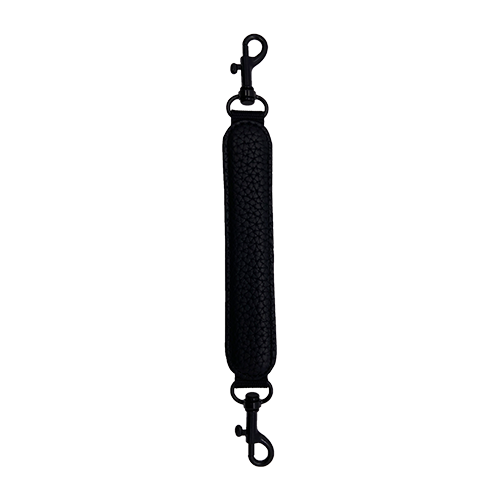

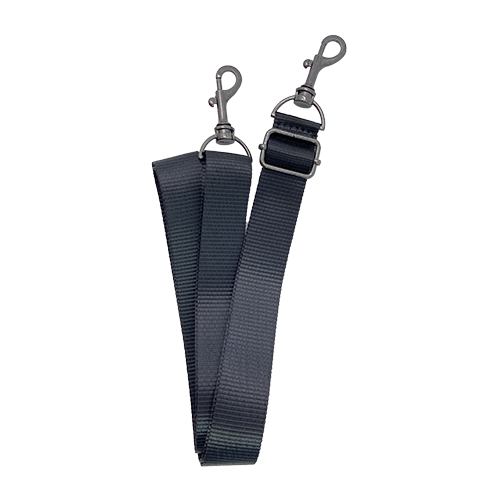

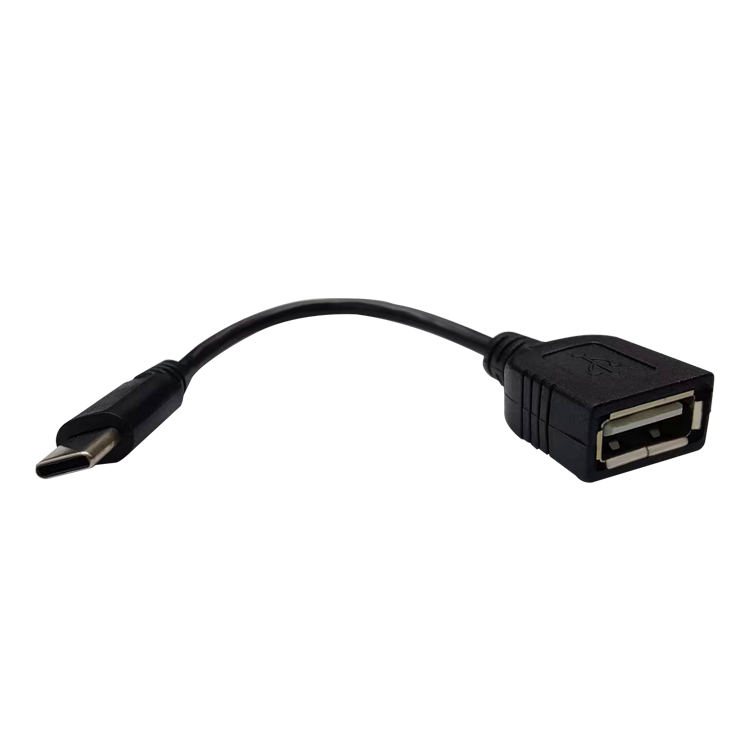

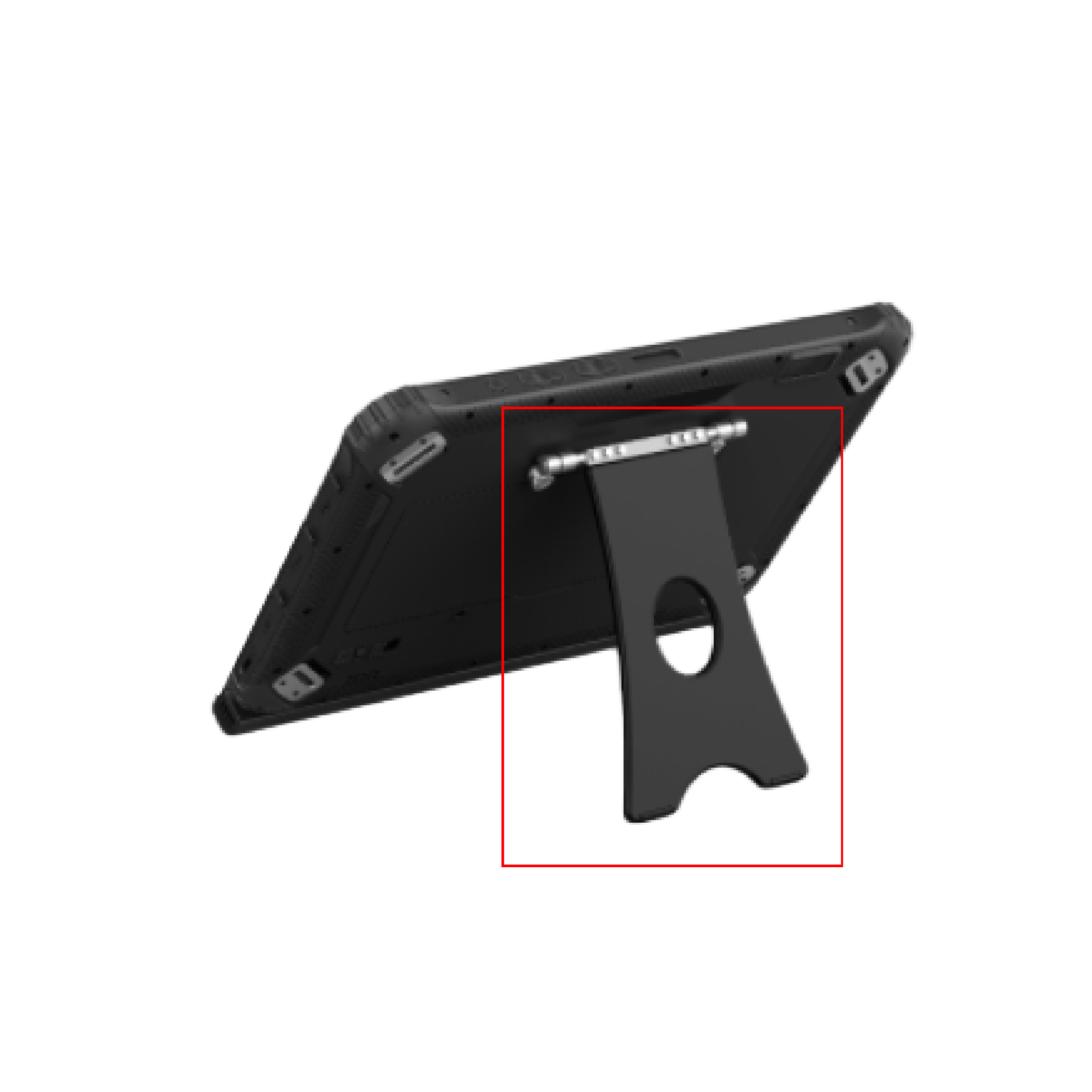

| Standard | 1xHand-strap,1xCarry Handle strap,1xOTG Cable,1xStandard Adaptor,1xHolder Bracket |

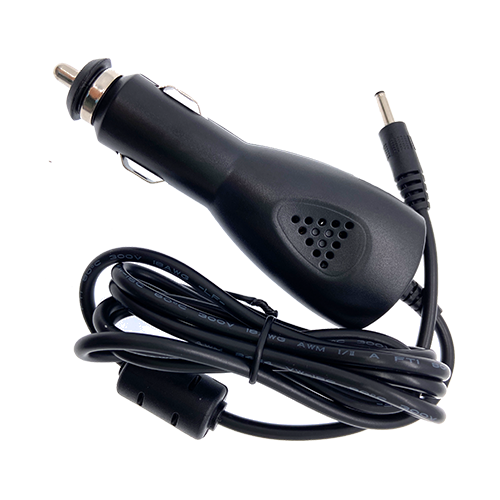

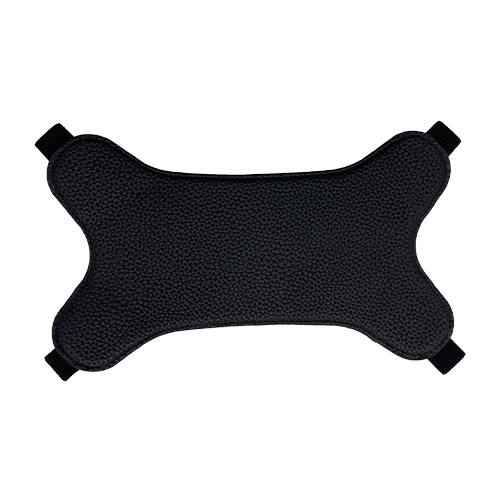

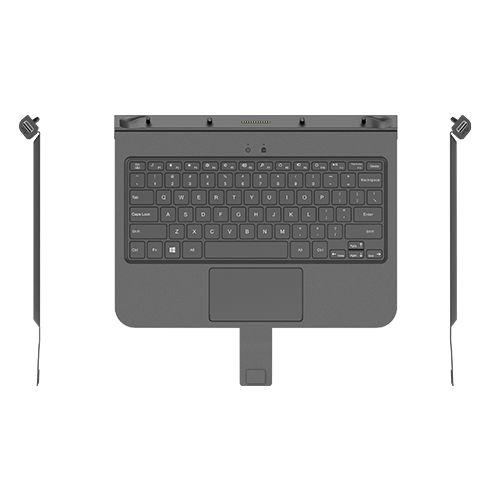

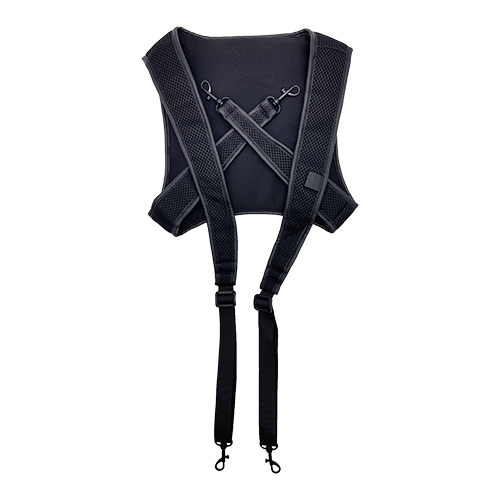

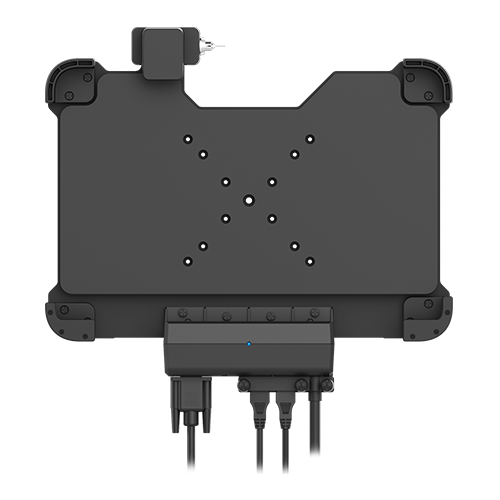

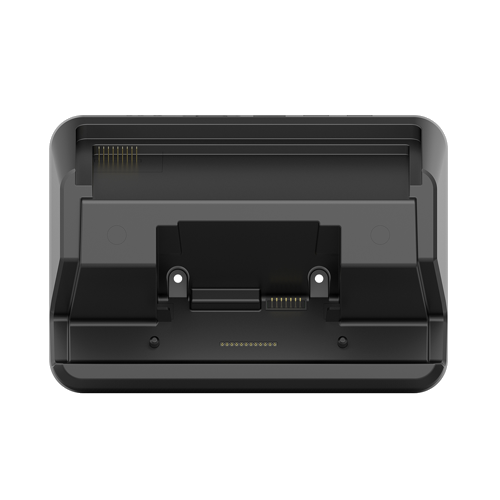

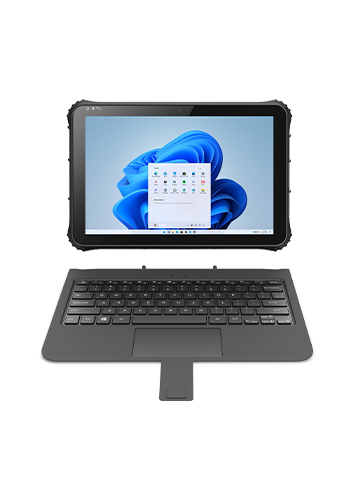

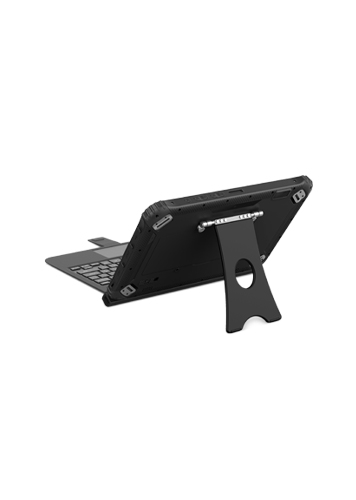

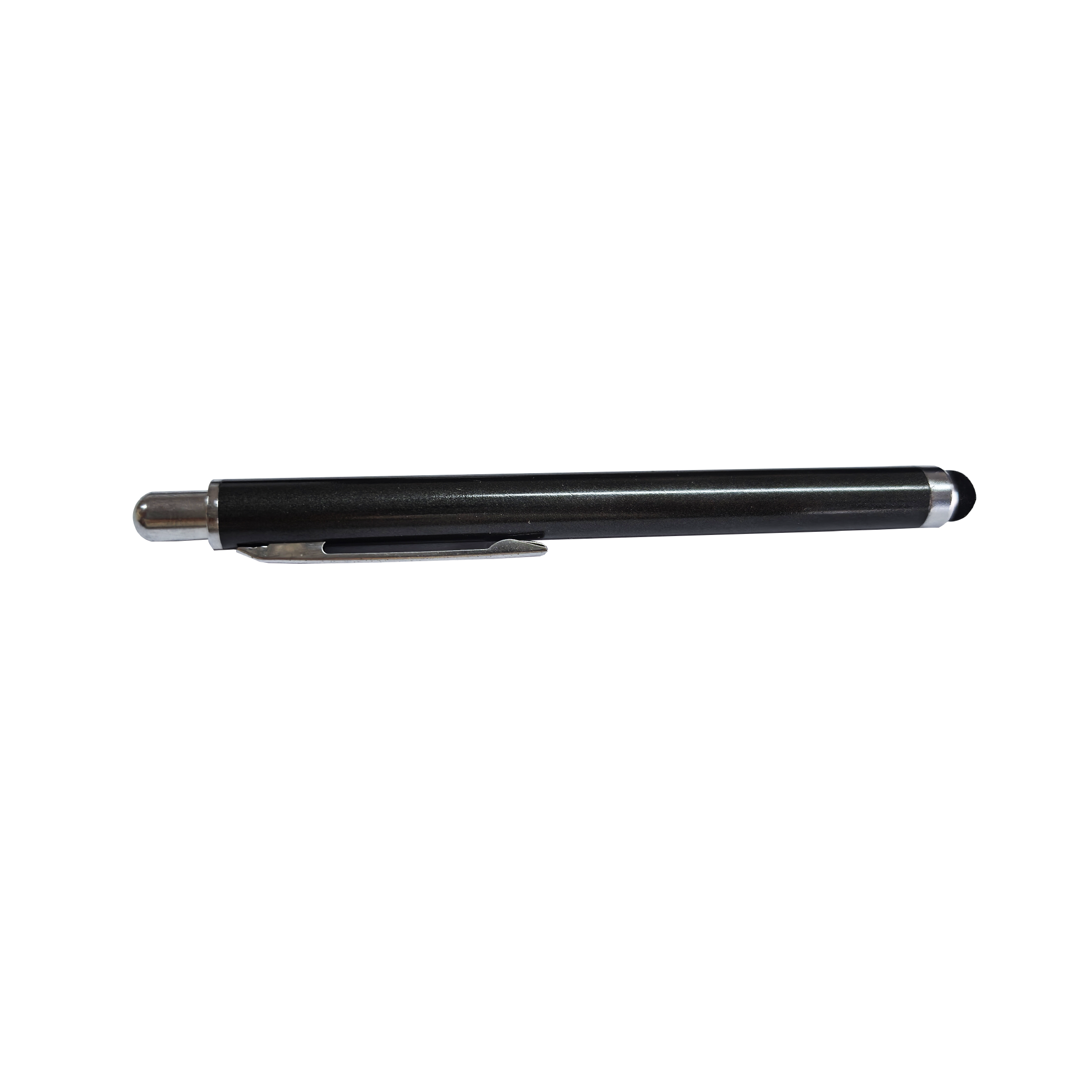

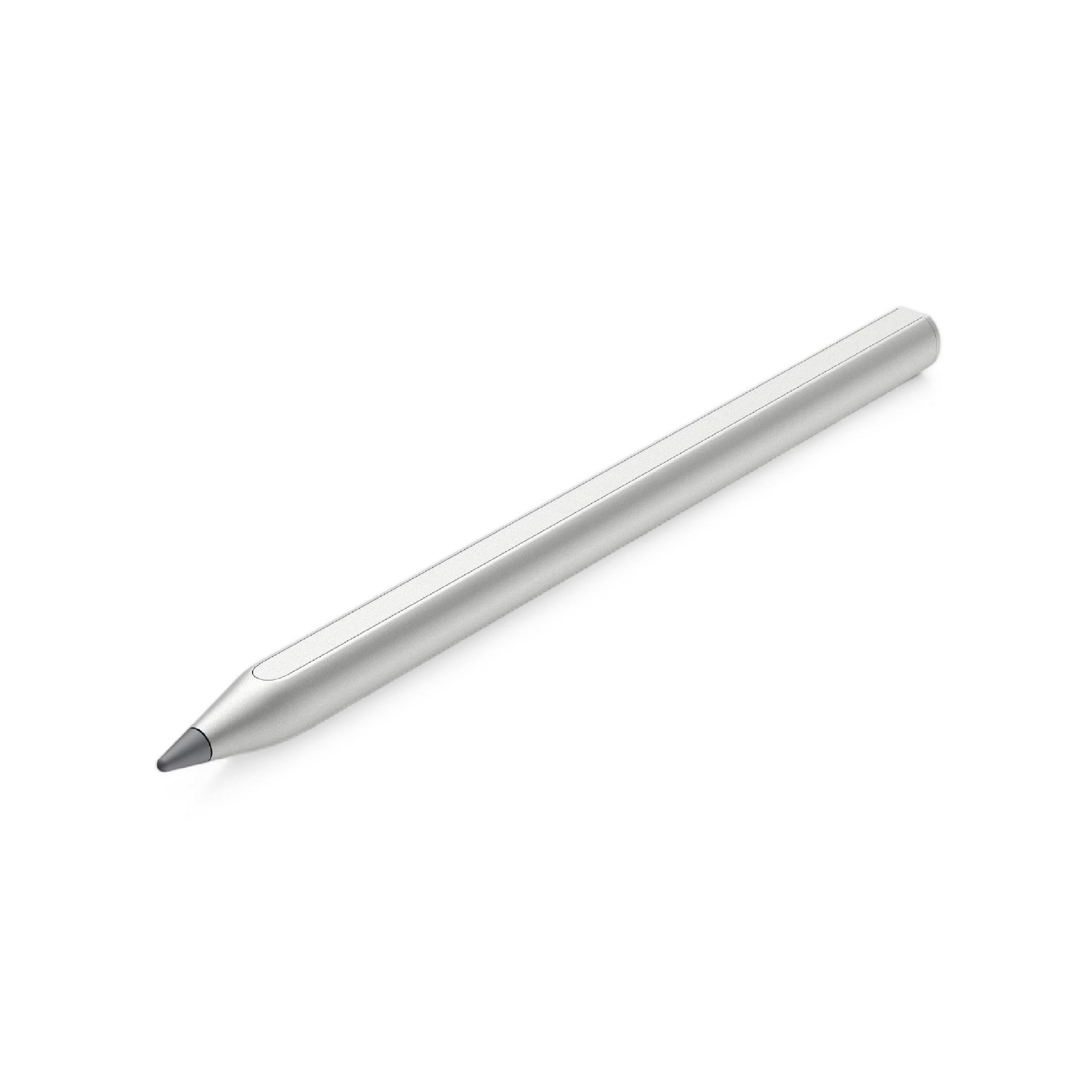

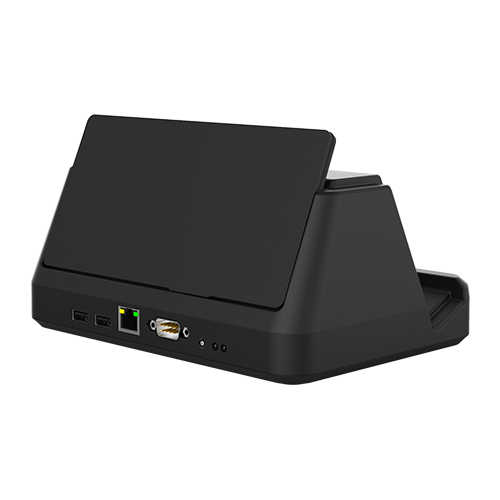

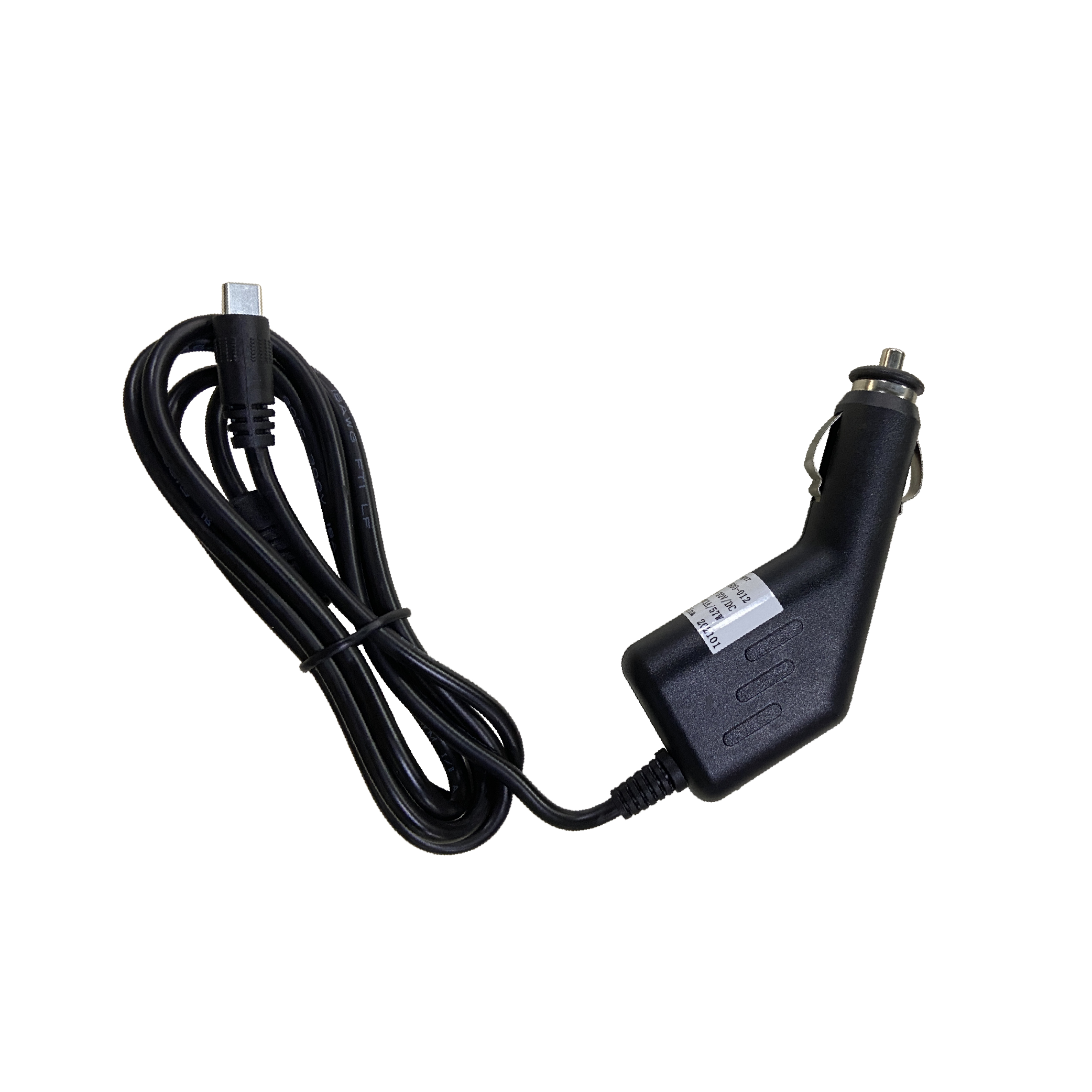

| Optional | Spare Replace Battery,Shoulder girdle,Vehicle bracket holder,Car charger,Active capacitive pen,Hand writing pen,Docking Charger,Back Straps,Leather Removable keyboard |
