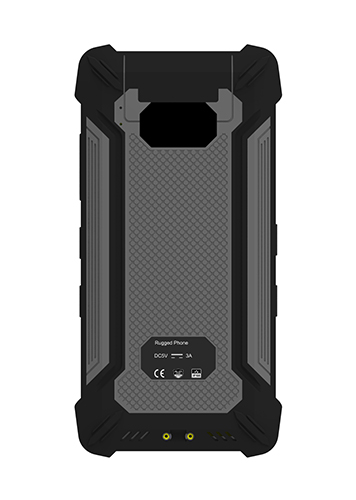

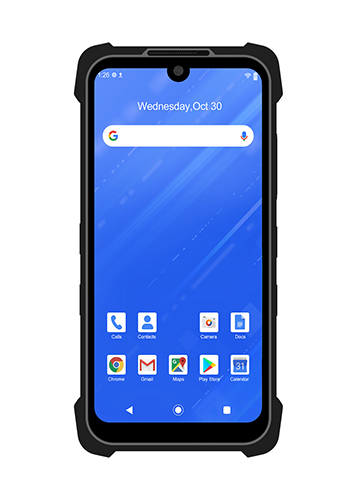

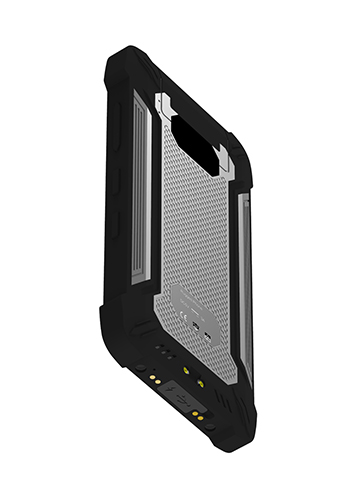

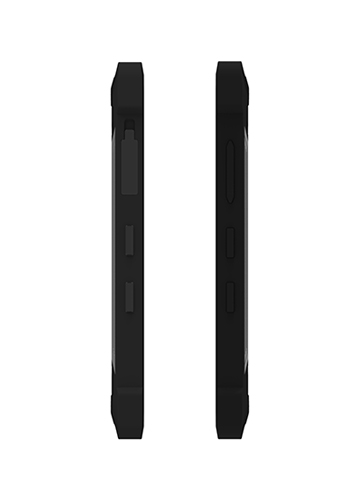

S50A

Industrial Rugged Handheld PDA

Extremely Fast, Full-Features to Deliver the Best Service

The S50A with multiple features such as high configuration,shortcut keys, barcode scanning, long-lasting battery life, etc.The excellent performance makes it ideally deployed in diverse scenarios. S50A creates the ultimate ultra-rugged full-touch computer for all workers inside and outside the four walls-smartphone experience for maximum simplicity and the ultimate in rugged construction. Its lightweight design gives the user the perfect combination of durability, comfort, convenience and portability.

Features
Specification
Accessories
Download

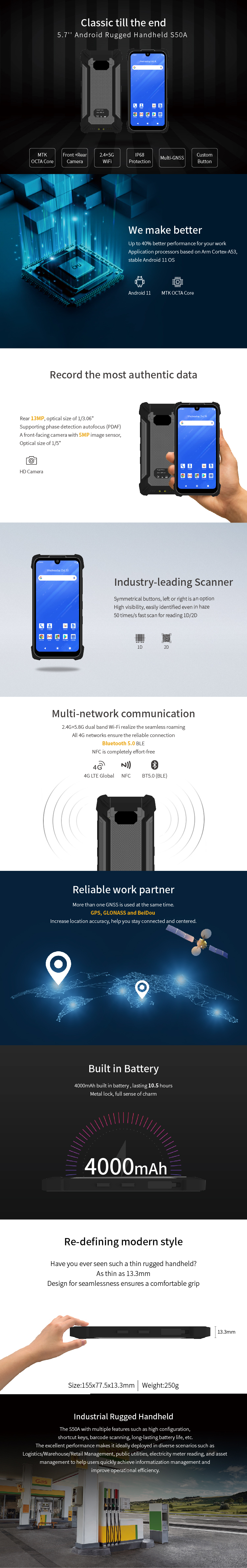

S50A详情页_画板 1.jpg

SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	15577.713.3mm
Weight	240±20g
Display / Touch Panel	5.7 inch; 720*1520; 450nits10 Point Touch, Support stylus
Battery	4000mAh; 3.8V, Charging time: 2H30minUsage time: about 14H(50% volume, 60% brightness, playing local 1080P video)
Power Adapter	Charger (5V 2A)Optional:(EU, US, UK, AU) Choose one of four
Speaker	8Ω 1.0 Watt
I/O Interfaces	1. Type-C 1; OTG2. SIM Card Slot2 or SIM+TF Card SlotBottom pogopin*4
Buttons	V+ -, Power, SOS, Scan,Customized Button
Camera	Front: 5MP; Rear: 13MP; Flash light
Multi-Media(Hardware Decoding)	1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
PERFORMANCE CHARACTERSTICS
CPU	Unisoc T616 (T7250) Octa Core; 1.8GHz, Unisoc T606 Optional
Operating System	Android 13
Storage	4GB+64GB, (8GB+128GB Optional)
USER ENVIRONMENT
Operating Temp.	-25℃ to 50℃
Storage Temp.	-40℃ to 60℃
Humidity	Relative Humidity (93±3)% RH
Drop Specifications	Dropping Resistance 1.5 meters
IP Protective Level	Anti-dust & Waterproof IP65 , MIL-STD-810G, ISO-9001 , CE, FCC, 3C
DEVELOPMENT ENVIRONMENT
SDK	Dingdata Software Development Kit
Language	Java
Environment	Android Studio or Eclipse
DATA COMMUNICATION
WWAN	4G LTE,3G WCDMA,GSM4G Fre:FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20TDD-LTE: B38/B39/B40/B41WCDMA: B1/B2/B5/B8GSM: B2/B3/B5/B8
WIFI	802.11a/b/g/n/ac Wireless Internet Wireless AP( Mobile AP )2.4G, 5G
Bluetooth	5.0 Version
GPS	BDS, GPS, GLONASS
DATA CAPTUER
Barcode Scanning (optional)	NLS-N1
RFID HF（NFC）	13.56 MHz, Model: PN553
ACCESSORIES

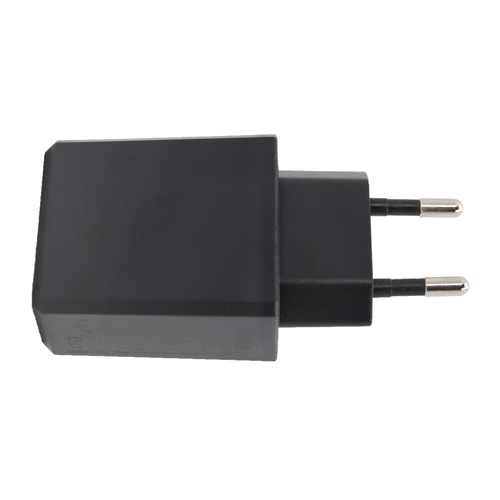

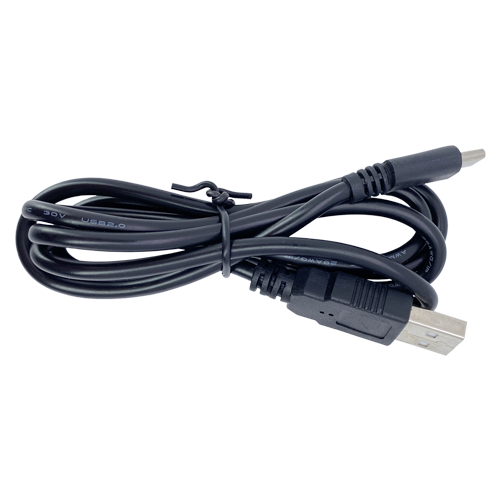

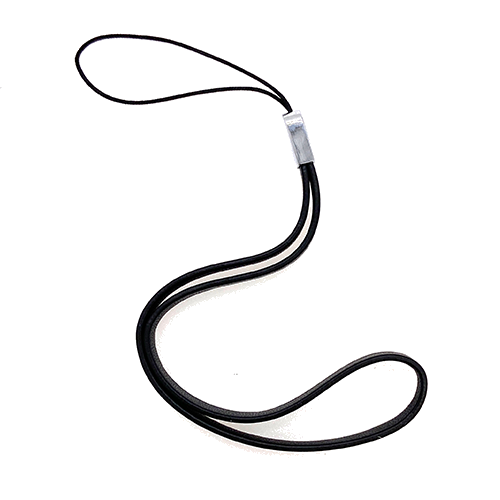

Standard		1xUSB Cable,1xPower Adapter,1xHand-strap

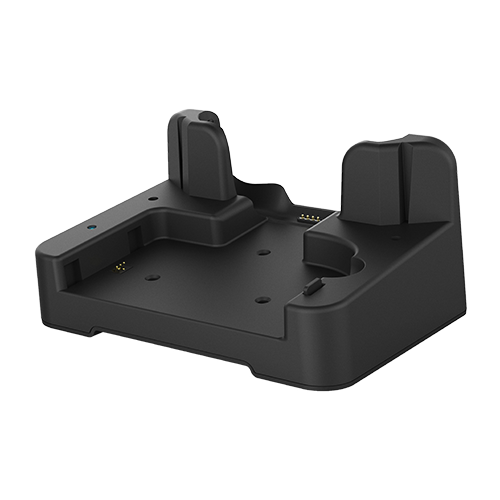

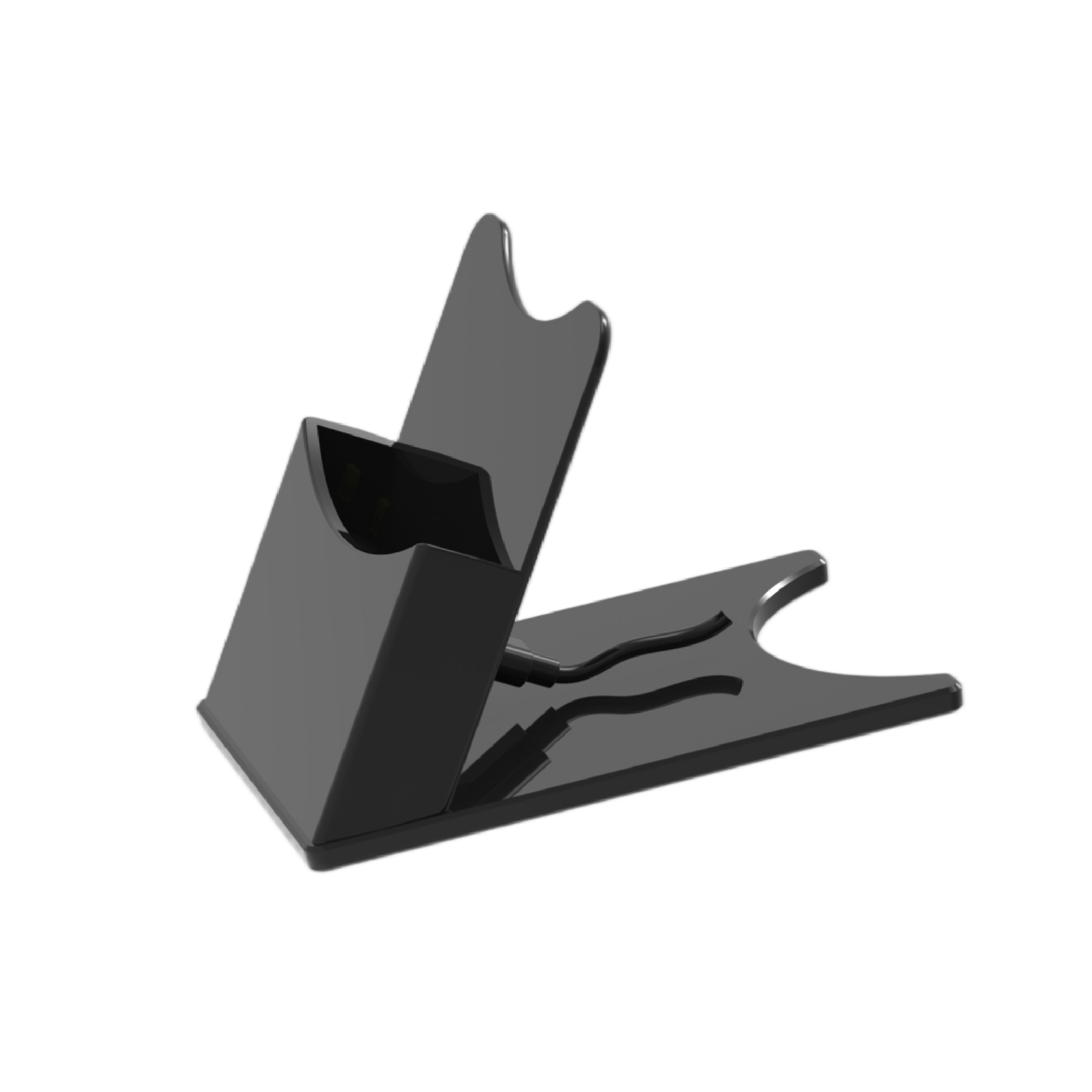

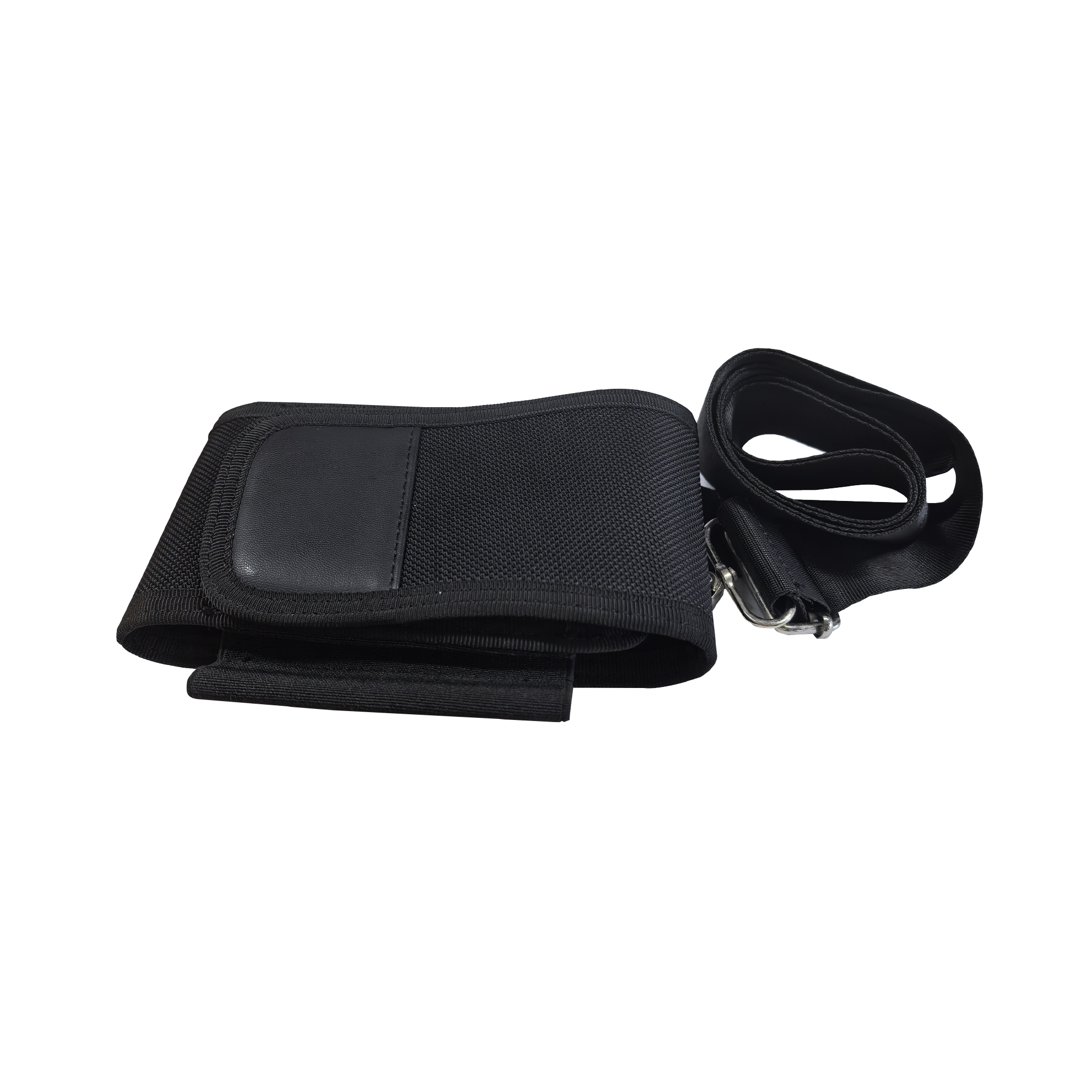

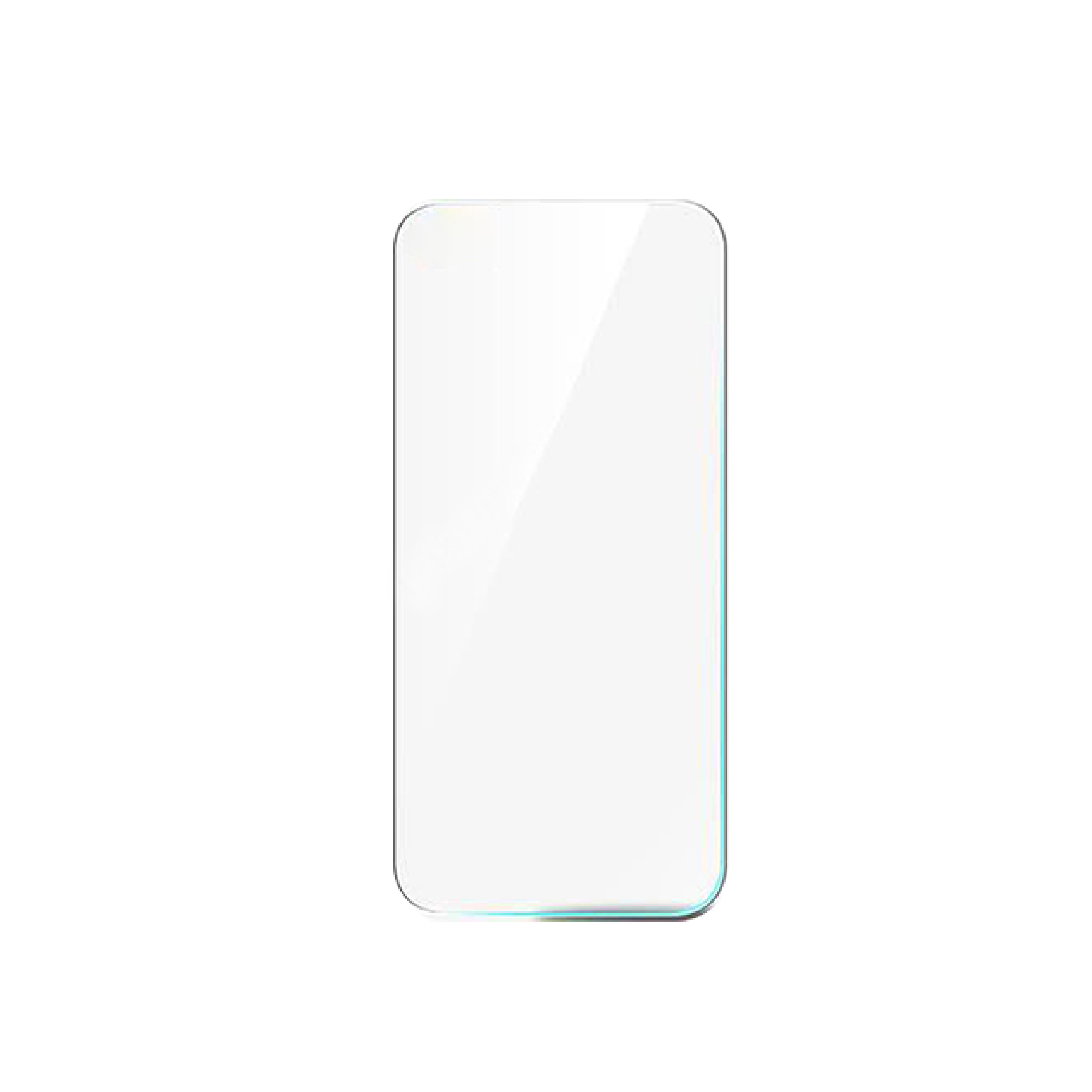

Optional		Docking Charger,Leather protective case,TP protective film
