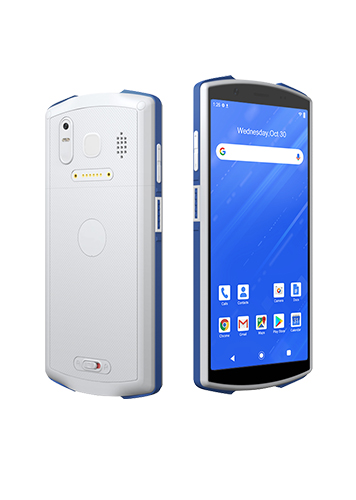

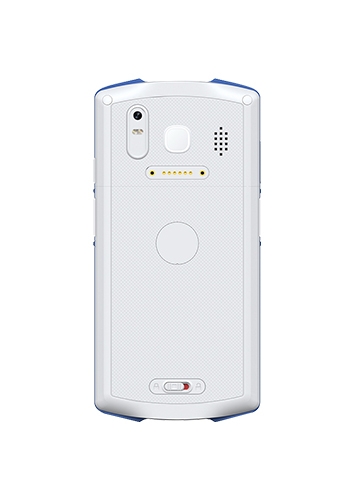

DN60M DN60M DN60M DN60M

DN60M

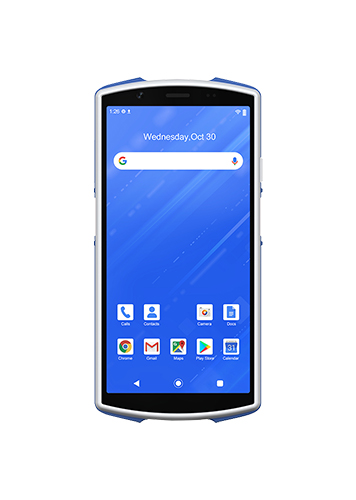

Design for medical industry,the white angel of handheld terminal

Full-Features to Deliver the Best Service

DN60M is a elligent terminal equipment for medical industry application, especially fungi-proofing materials has adopt for the body. Supporting a variety of communication methods,the data of medical are delived by a lot of ways at real time. According to medical demand,it will add the nameplate of user.1D/2D scanning engine with millisecond response speed can accurately identify various complex barcodes. With NFC module,it supports muti scene use,and the card reading distance is 3cm-5cm. It come with all of the features you'd expect.DN60M is equipped with a  Octa-core 2.2Ghz Processor so that you can enjoy an uninterrupted preference. It features Android 13 OS. The incredible speed and smooth performance that make multi-tasking really easy.A super larger memory of ROM lets you download and save more data.

DN60M
DN60M
DN60M
DN60M
  • Features
  • Specification
  • Accessories
  • Download



SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension164.5*79.4*12.3mm
Weight<265g(Depends on device function configuration)
Display / Touch Panel5.93 " IPS color display,resolution 720x1440, 450cd/m2, Supports multi-touch
ExpansionsMicro SD/TF port (Max up to 256G)
BatteryRechargeable polymer battery (3.8V4200MAh)Standby time >350 hoursSupport fast charge, removable batteryCharging time < 1.5H,(Use the standard fast charging source adapter and data cable)
Power Adapter待定Optional:(EU, US, UK, AU) Choose one of four
AudioSpeaker (mono), Microphone, receiver
I/O InterfacesType-C USB x 1, OTG, Nano SIM card
Buttons/KeysPower button, Volume +/- button,Scan button × 2
CameraRear camera:13MP HD camera,2MP auxiliary camera Support auto focus, Flash, Anti-shake, Macro shootingFront camera:8MP front camera(optional)
PERFORMANCE CHARACTERSTICS
CPUCortex-A76/A55 Octa-core 64-bit    2.2GHz high-performance processor
Operating SystemAndroid 13/GMS
Storage4GB+64GB (Optional 6GB+128GB)
USER ENVIRONMENT
Operating Temp.-20℃ to 50℃
Storage Temp.-40℃ to 70℃
Humidity5%RH to 95%RH(non-condensing)
Drop Specifications6 sides can bear impact from 1.2m drop to cement floor in the range of operating temperature
IP Protective LevelIP67
DEVELOPMENT ENVIRONMENT
SDKSoftware Development Kit
LanguageJava
EnvironmentAndroid Studio or Eclipse
DATA COMMUNICATION
WWANGSM: B2/3/5/8WCDMA: B1/2/4/5/8/6/19CDMA: BC0/BC1TDS: 34/39TDD: 34/39/38/40/41FDD: B1/2/3/4/5/7/8/12/17/18/19/20/26/28AB5G:N1/N3/N5/N8/N20/N28/N38/N41/N77/N78/N79
WIFIDual frequency 2.4GHz/5GHz, support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol
BluetoothSupport BT 5.0Transmission distance 5-10 meters
GNSSSupport Gps, Galileo, Glonass, Beidou
DATA CAPTUER
Barcode Scanning (optional)Honeywell:N6602-W21D Symbologies:UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc. Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc..2D Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc.
Fingerprint (optional)Support fingerprint unlocking
RFID HF-NFC (optional)Frequency:13.56MHZProtocol:Support ISO14443A/B, 15693 agreement.Range: 0-5cm
ACCESSORIES
Standard1xHand straps; 1xProtective film; 1xAdaptor with USB cable
OptionalReplacement battery,Leather protective case,Docking Charger
Standard_Accessories

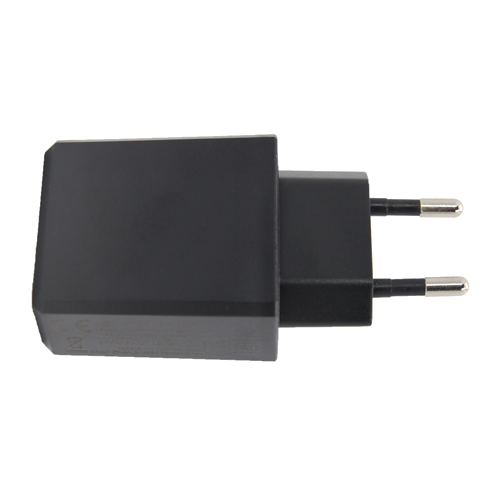

Adapter

Adapter

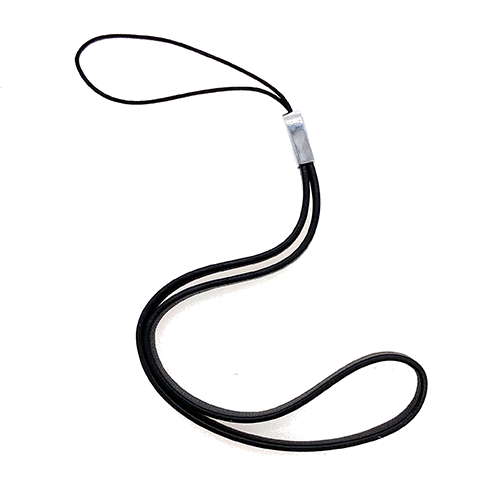

Hand-strap

Hand-strap

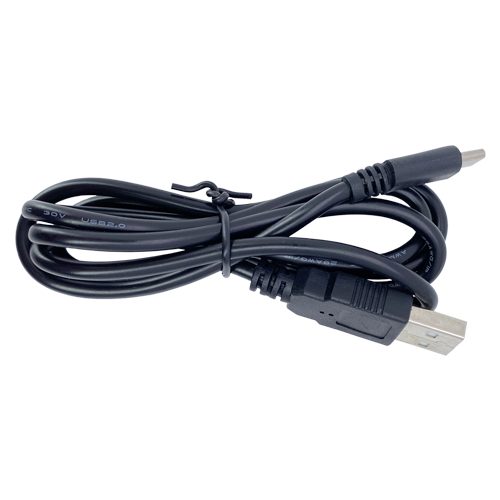

USB Cable

USB Cable


Optional_Accessories

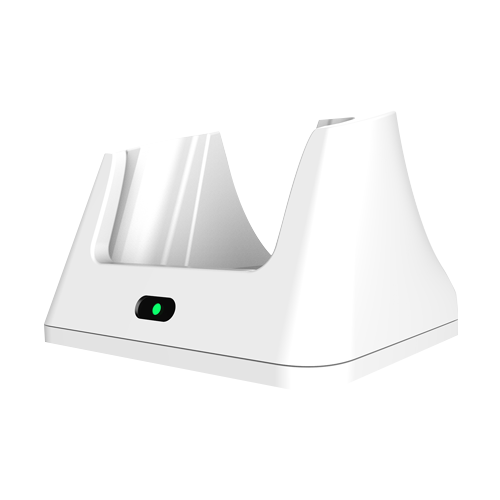

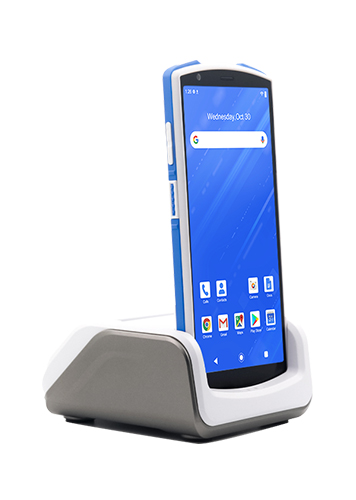

Docking Charger

Docking Charger

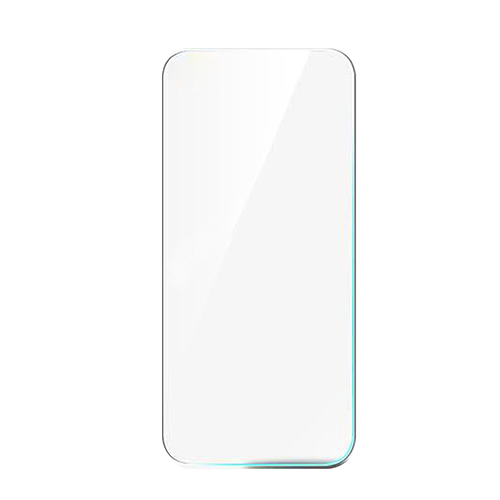

Protective screen film

Protective screen film

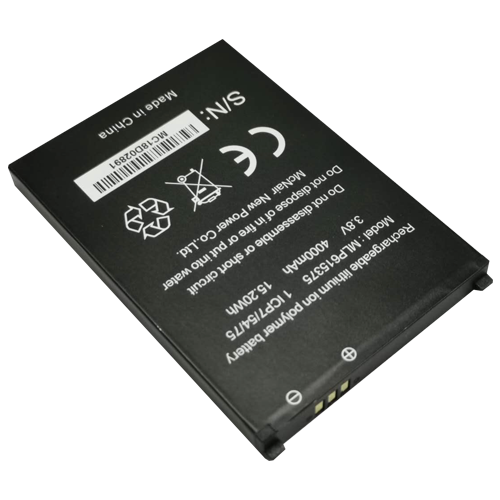

Spare Battery

Spare Battery
