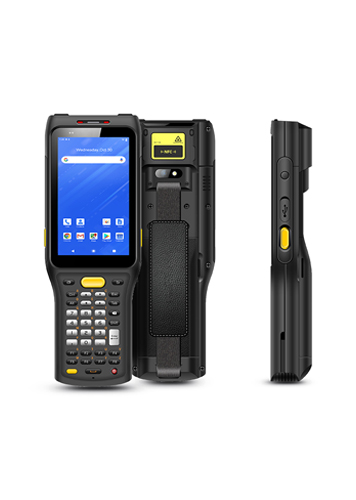

4 inch with keyboard Rugged RFID UHF Handheld Terminal

Full-Features to Deliver the Best Service

The display of DN61U is one of the most boastful features of the handset. It comes with a 4 inch screen that has a 27/37/47 keys optional. It further assures you of a crystal clear and immersive experience. DN61U is equipped with a Octa-core 2.0Ghz Processor so that you can enjoy an uninterrupted preference. It features Android 13 OS. The incredible speed and smooth performance that make multi-tasking really easy.A super larger memory of ROM lets you download and save more data.A massive 11600mAh battery keeps your handheld going longer without constant charging. Supporting cradle charge,Type-C,fast charge. Small size but full function,high frequency,ultra high frequency dual frequency design.

DN61U
DN61U
DN61U
DN61U
  • Features
  • Specification
  • Accessories
  • Download



SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension202.0*72.5*32.0 mm
Weight738g (SE4850, UHF, pistol battery)
Display / Touch Panel4-inch high definition display, 800*480Multi-touch panel, gloves and wet hands supported
ExpansionsSupports up to 256 GB Micro SD card
Battery6400 mAh removable main battery, 5200 mAh optionalpistol batterv support QC3.0 and RTC: Buit in 100mAh backupbattery, supporting battery hot swap,improving reliability andensuring user data security
Power Adapter100-240V input, 5V 2A output, to be used with the DC-BK-TypeC data cable or fast charging power adapter, 100-240V input, 5V3A / 12V1.5A / 9V2A output, to be used with the DC-BK-TypeC data cableOptional:(EU, US, UK, AU) Choose one of four
Audio1 microphone; 2 speakers; receiver
I/O InterfacesUSB Type-C, USB 3.1, OTG, extended thimble1 slot for Micro SIM card, 1 slot for TF card

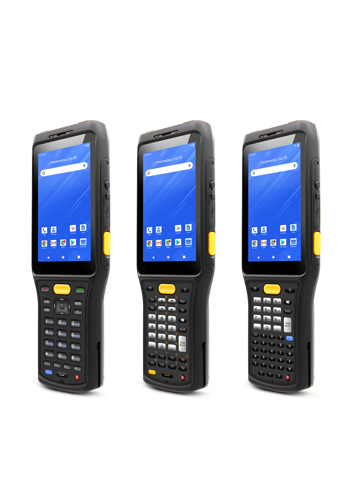

Buttons/KeysMain keyboard (Optional) : 27 keys / 37 keys / 47 keys;Side keys: 2 scan keys + 2 volume keys + 1 user-defined key
CameraRear 13 MP Autofocus with flash
PERFORMANCE CHARACTERSTICS
CPUQualcomm Snapdragon”662 Octa-core, 2.0 GHz
Operating SystemAndroid 13/GMS
Storage4 GB + 64 GB (Optional 3 GB + 32 GB)
USER ENVIRONMENT
Operating Temp.-20℃ to 50℃
Storage Temp.-40℃ to 70℃
Humidity5%RH to 95%RH(non-condensing)
Drop SpecificationsMultiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete acrossthe operating temperature range
IP Protective LevelIP65, IEC compliance
DEVELOPMENT ENVIRONMENT
SDKDingdata Software Development Kit
LanguageJava
EnvironmentAndroid Studio or Eclipse
DATA COMMUNICATION
WWAN4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 (Europe, Asia)4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38 (America)
WIFISupport 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band,IPV4, IPV6, 5G PA;
BluetoothBluetooth 5.1, transmission distance is 5 to 10m
GPSGPS/AGPS,GLONASS, BeiDou, Galileo, internal antenna
DATA CAPTUER
Barcode Scanning (optional)Zebra: SE4710/SE55/SE4750SR/SE4750MR/SE4750DP/SE4850Honeywell: N6603/N6703; Newland N1;1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US  PostNet, US Planet, UK Postal, Australian Postal, Japan Postal,Dutch Postal (KIX), etc.
RFID HF(NFC)Frequency : 13.56MHz,Protocol: ISO 14443A/B &15693,NFC-IP1,NFC-IP2 etc,  R/W Range: 0cm to 6cm

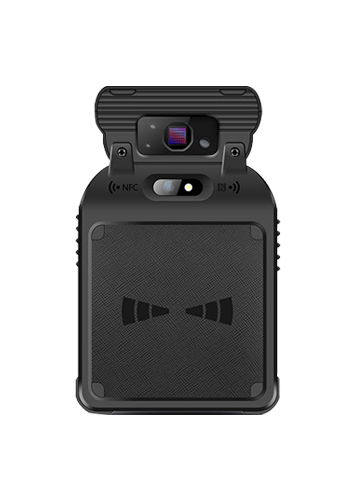

RFID UHF (optional)Engine:Impinj E710Frequency:865~868MHz or 920~925MHz/ 902~928MHzProtocol:EPC C1 GEN2/ISO 18000-6CAntenna :Circular Polarized AntennaR/W Range:Up to 20 m(tags and environment dependent)
ACCESSORIES
Standard1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable
OptionalHand strap; Charger Cradle; Protective film ; Pistol Grip Gun; Battery docking ,Rubber Bumper,etc
Standard_Accessories

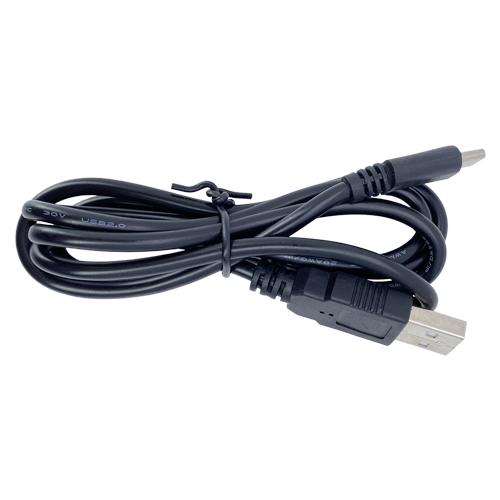

USB Cable

USB Cable

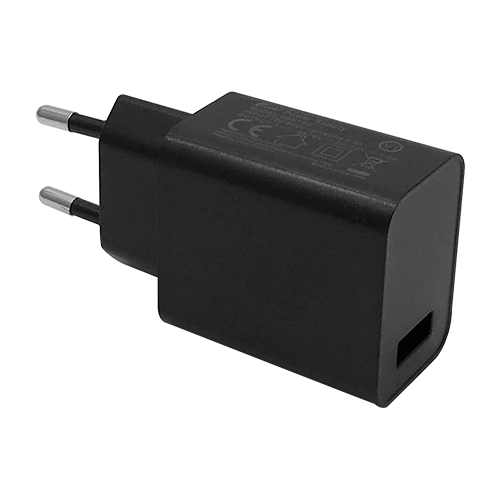

Adapter

Adapter

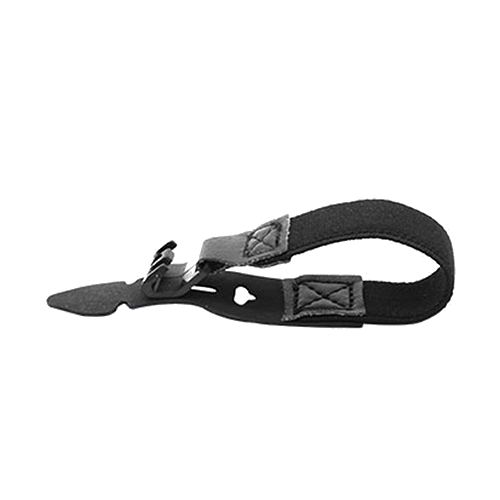

Hand-strap

Hand-strap


Optional_Accessories

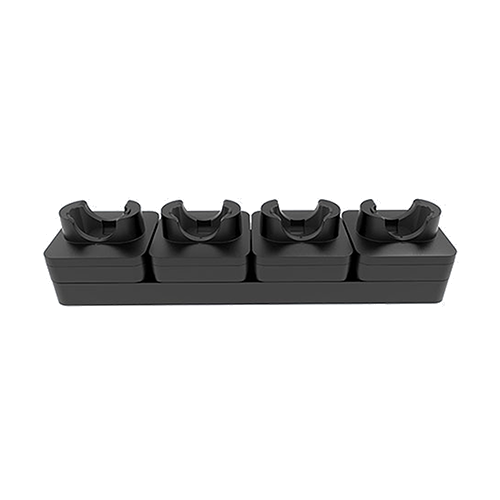

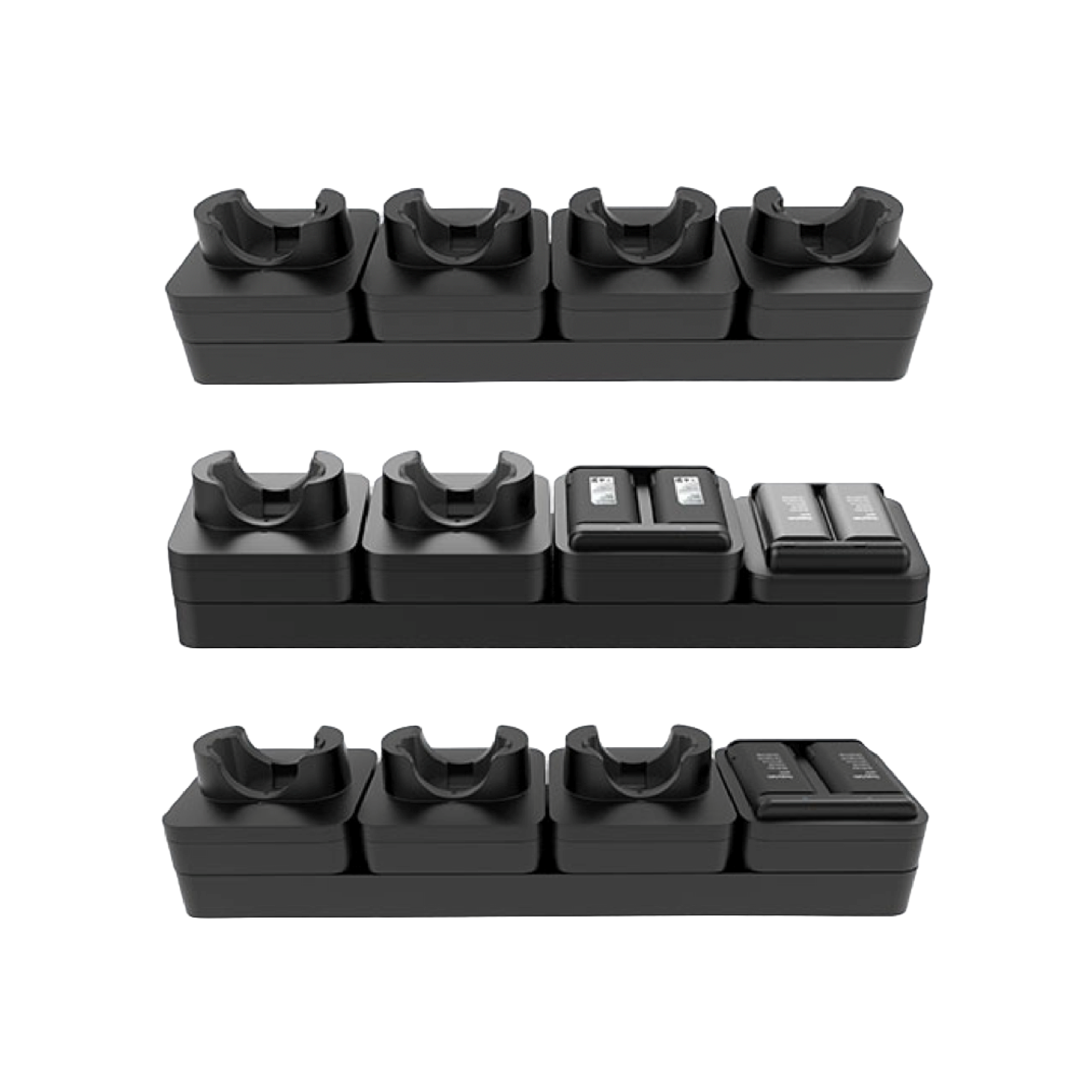

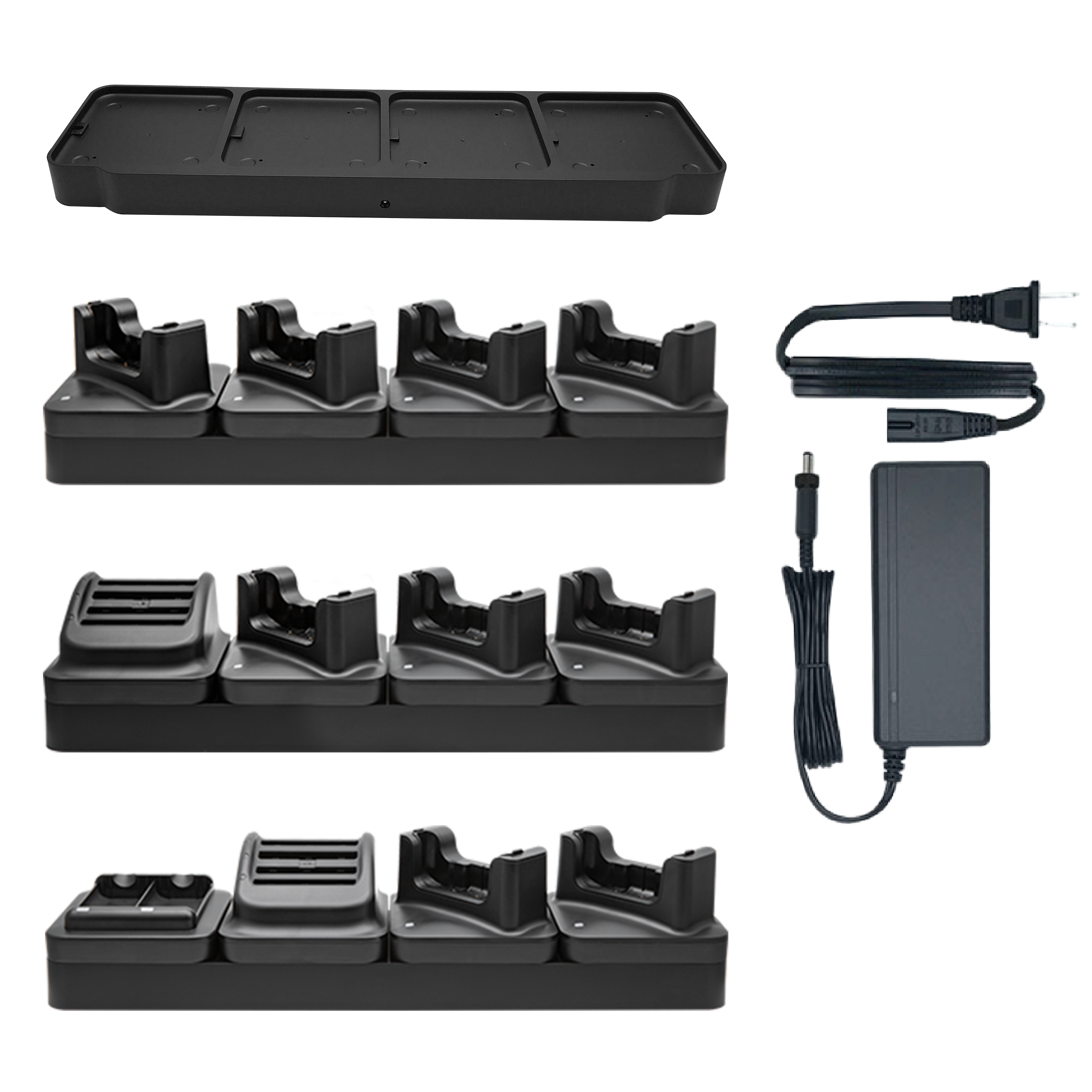

4 slot Docking Charger

4 slot Docking Charger

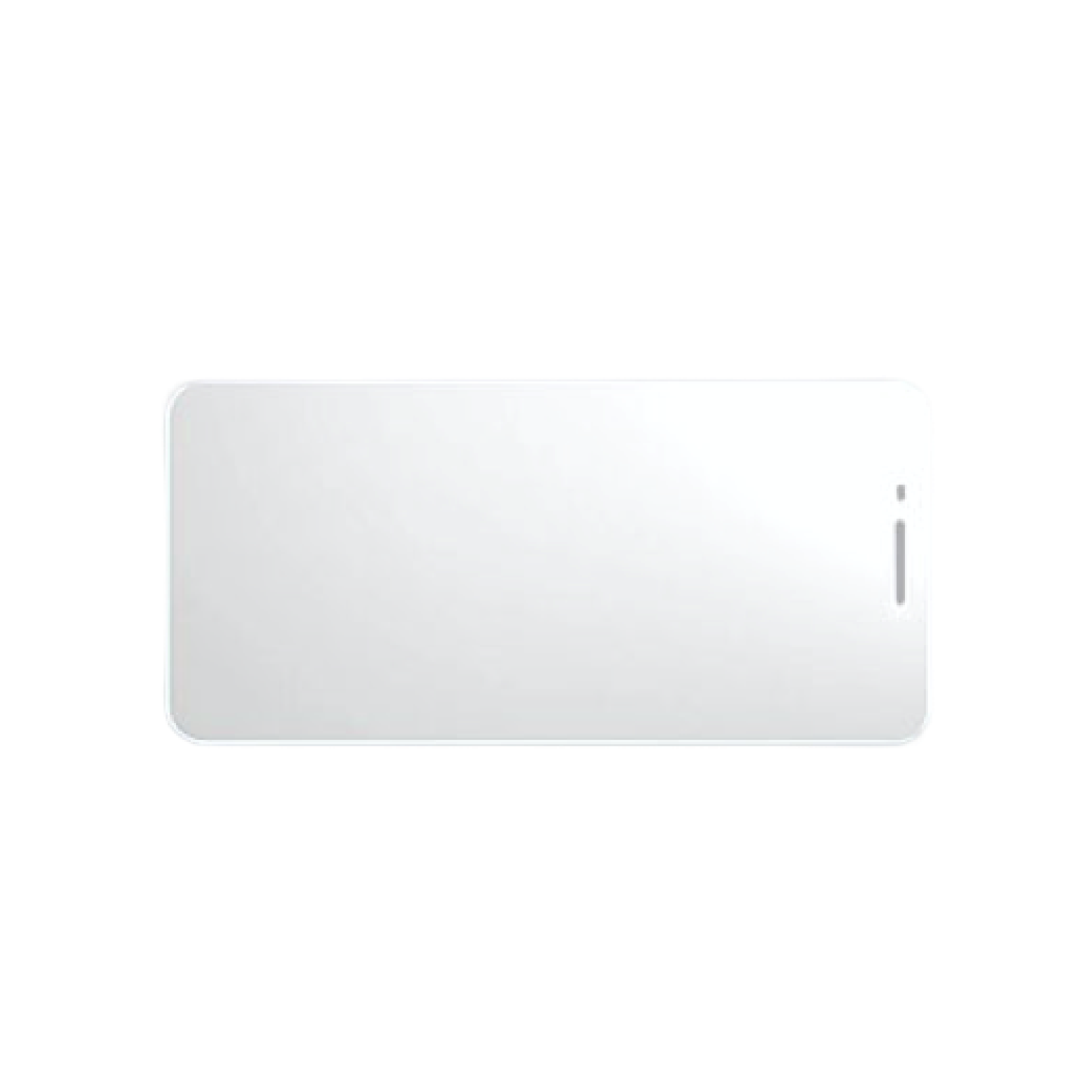

Screen Protector

Screen Protector

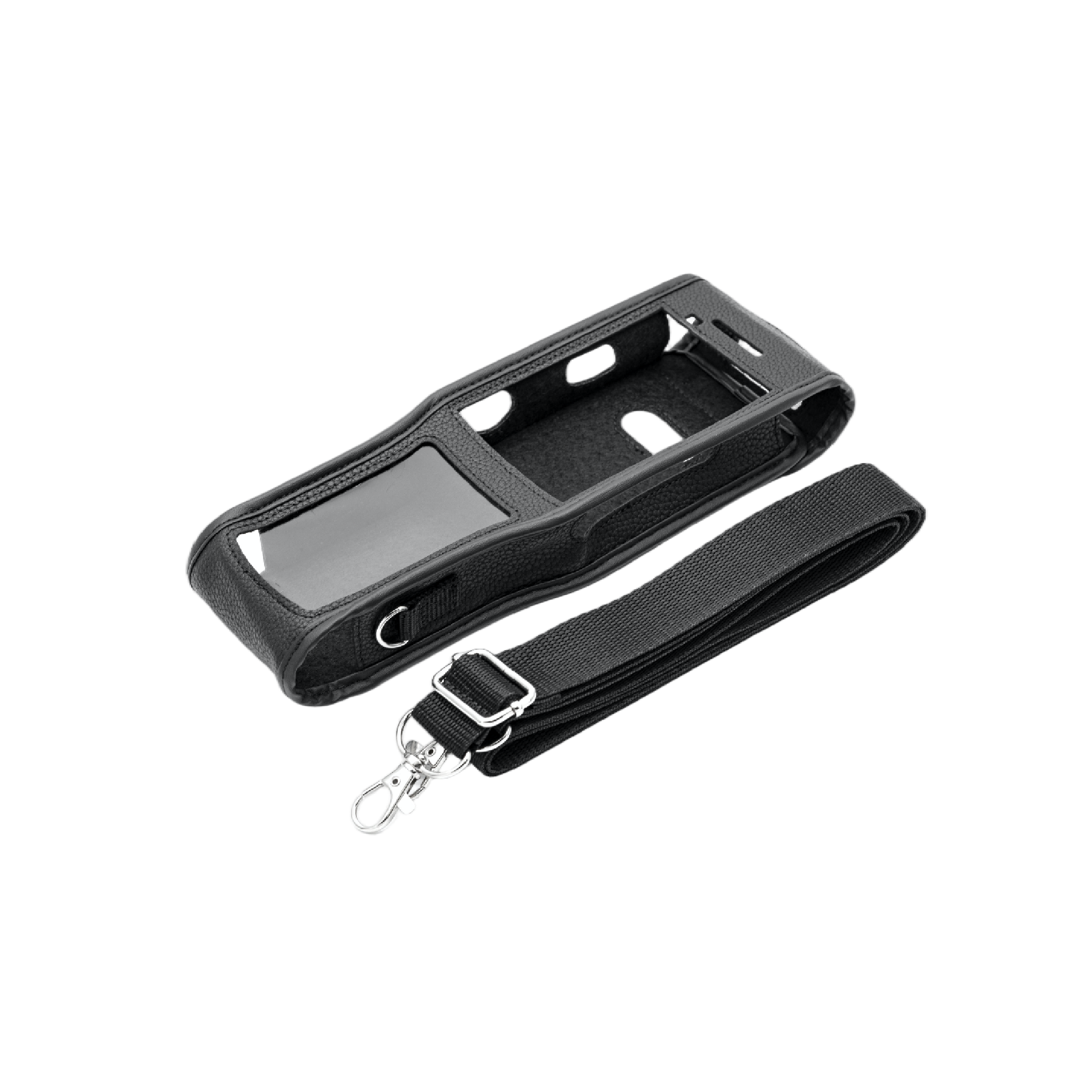

Leather case

Leather case

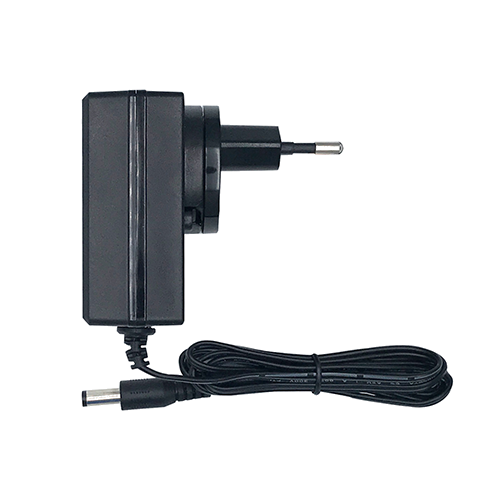

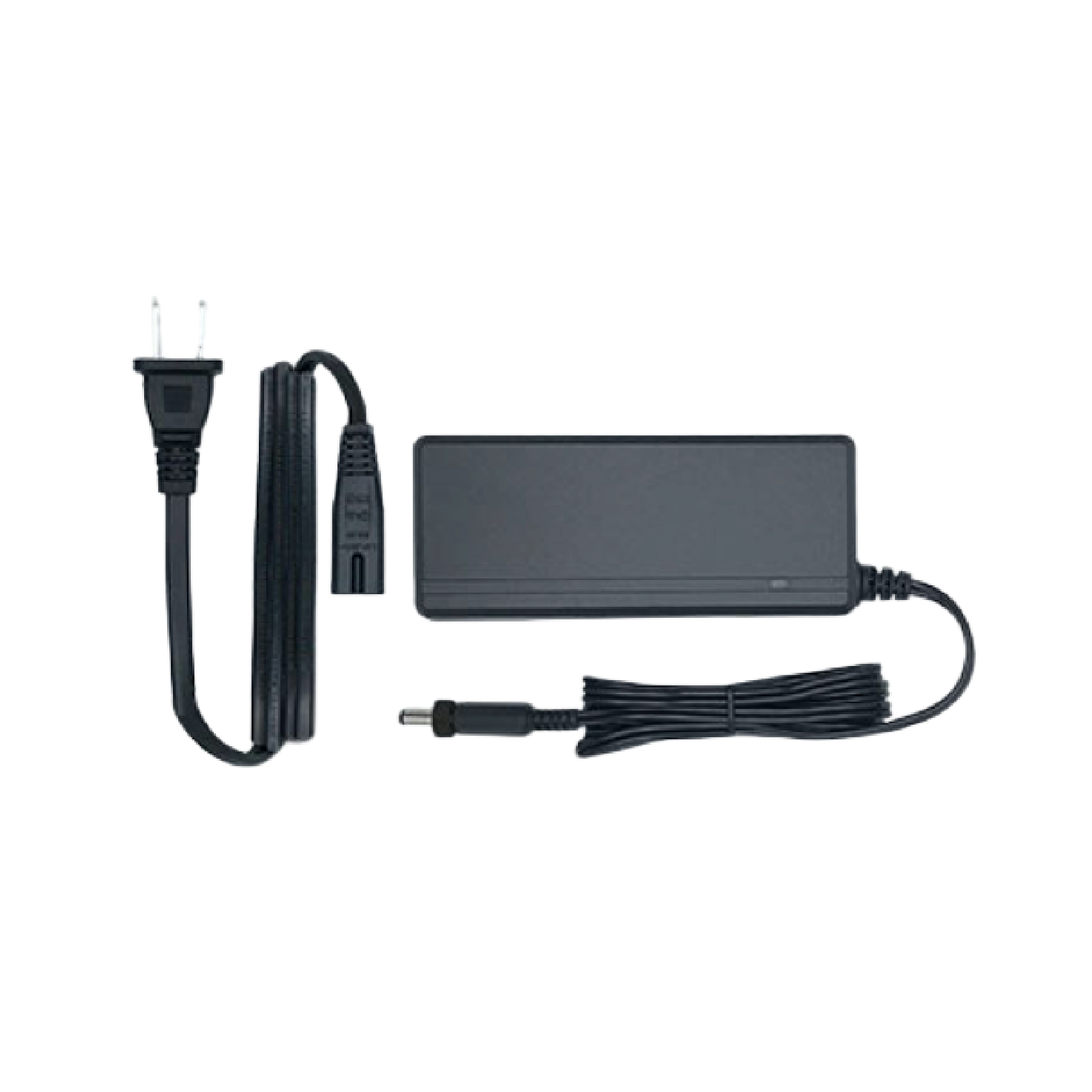

DCPWR-12V5A-XX

DCPWR-12V5A-XX

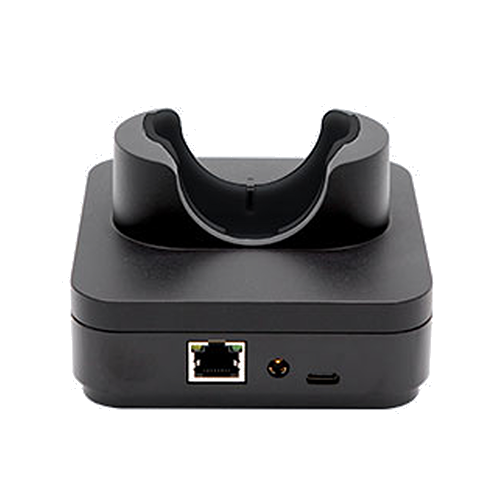

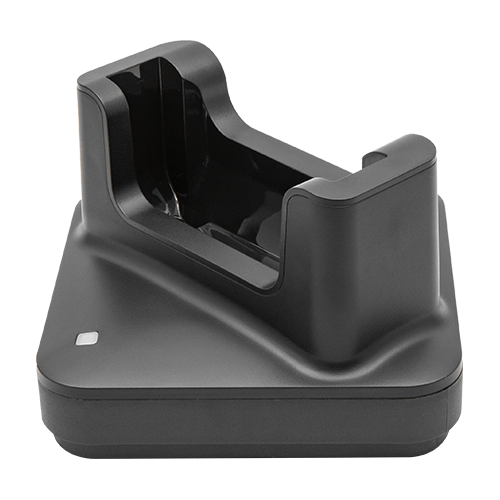

CRD-61F-RBC Docking

CRD-61F-RBC Docking

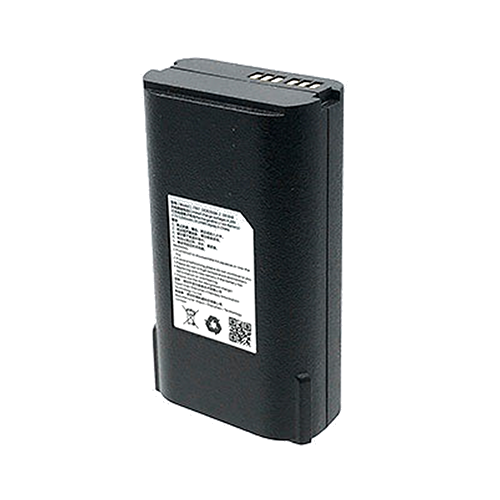

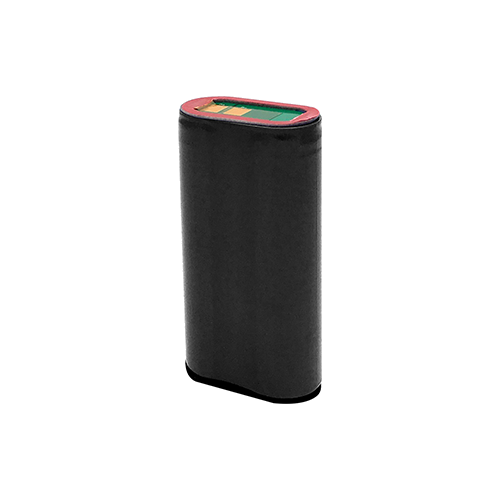

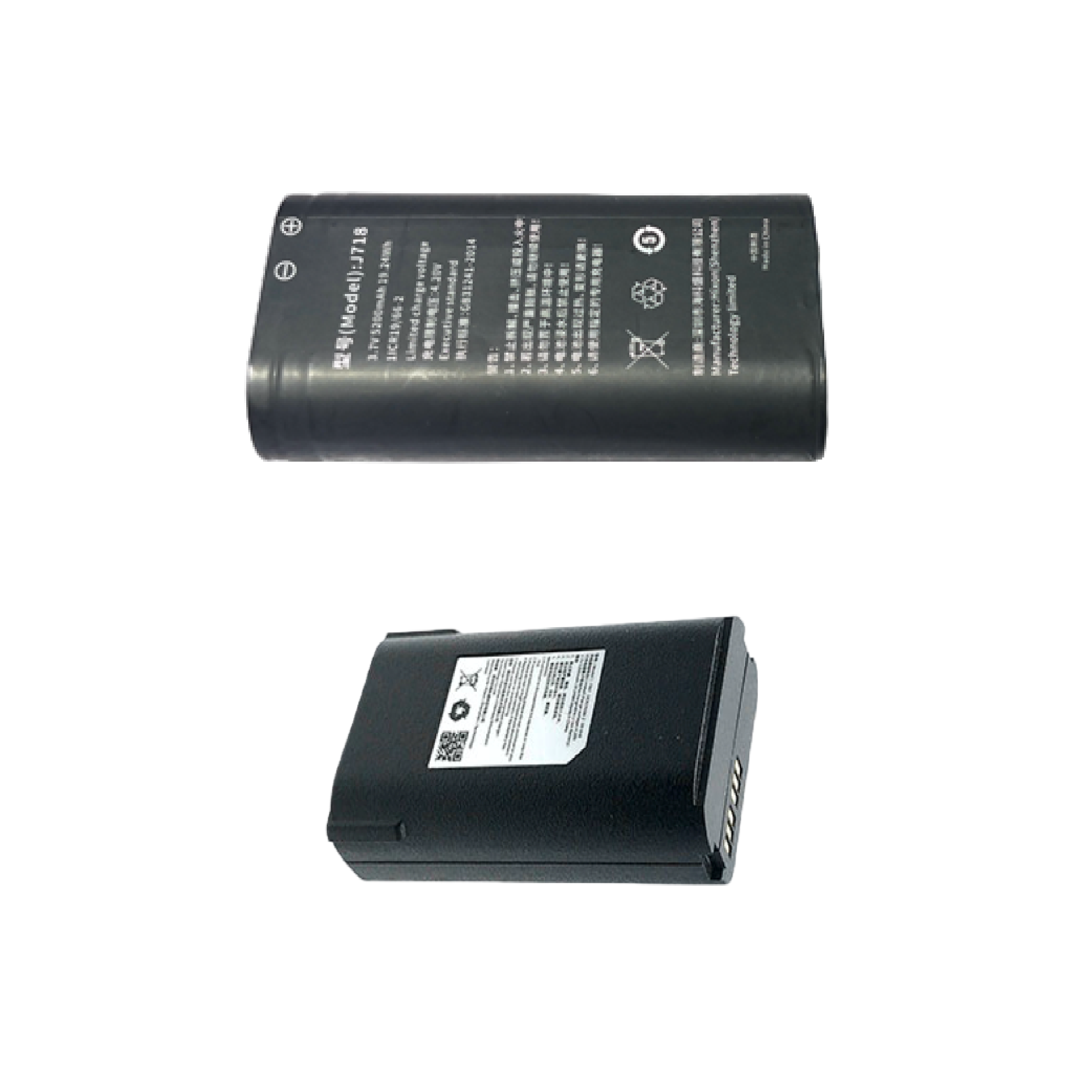

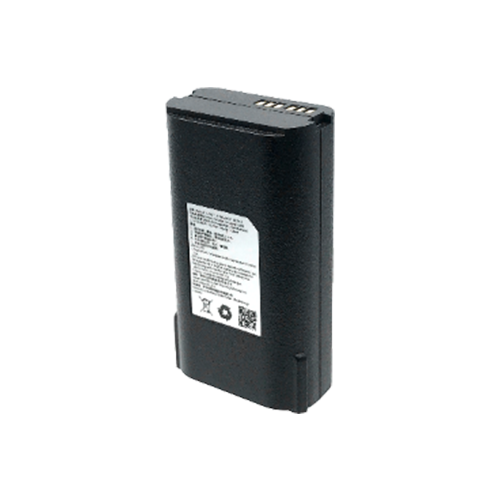

Main and Pistol battery

Main and Pistol battery

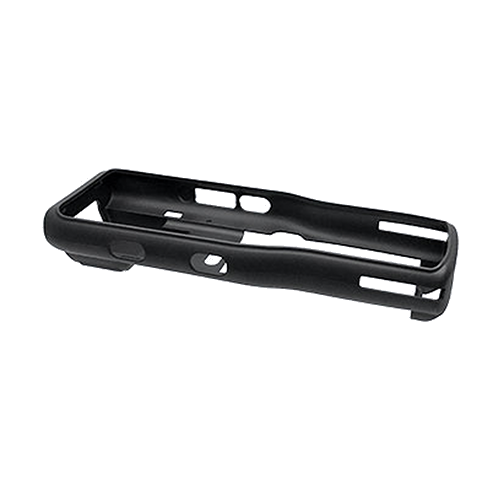

Rubber Bumper

Rubber Bumper

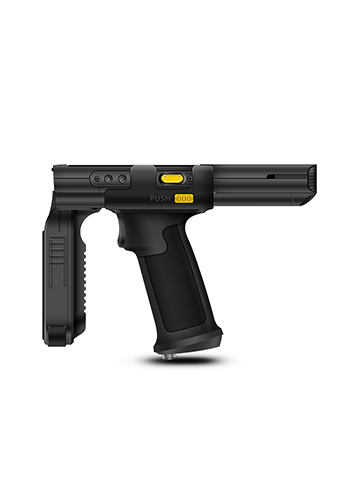

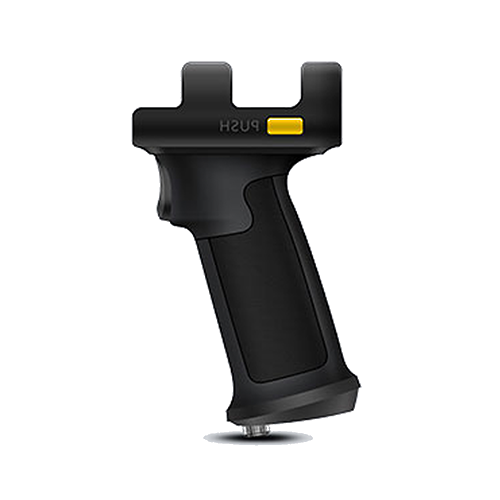

Pistol Grip

Pistol Grip

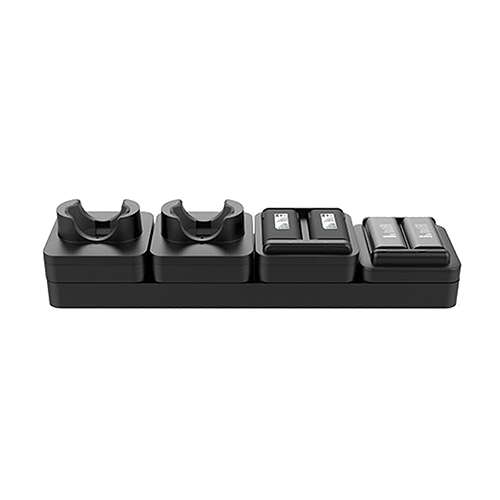

Docking Charger-2

Docking Charger-2

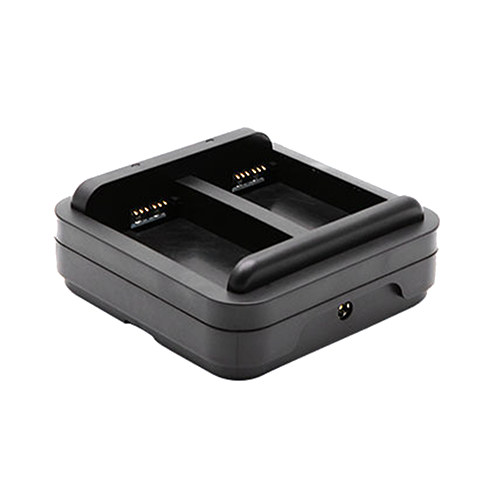

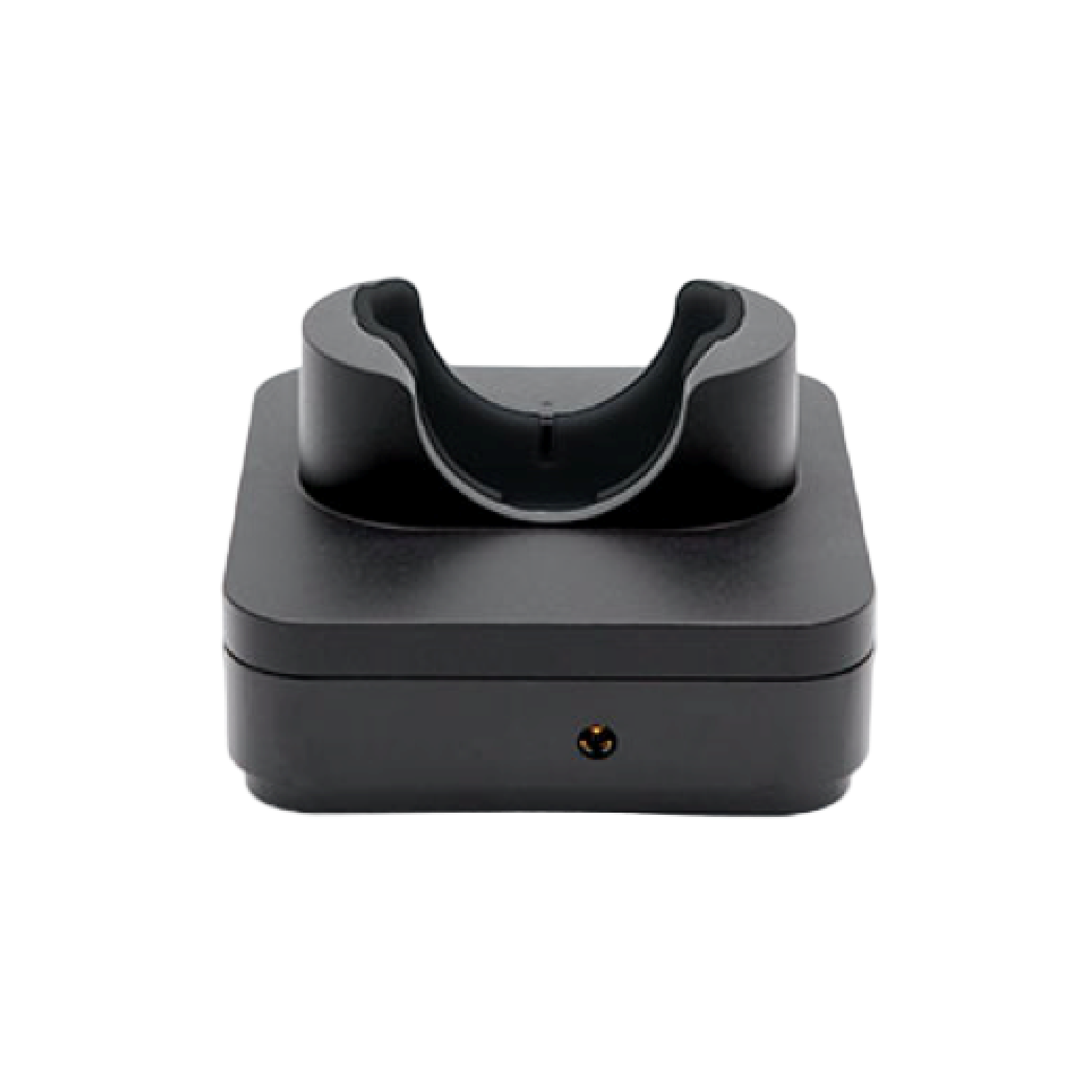

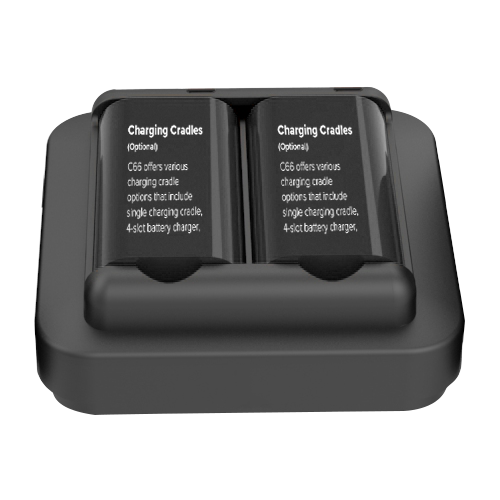

Battery docking-3

Battery docking-3

Docking Charging Adapter

Docking Charging Adapter
