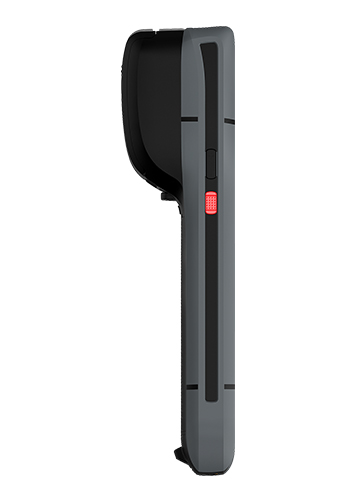

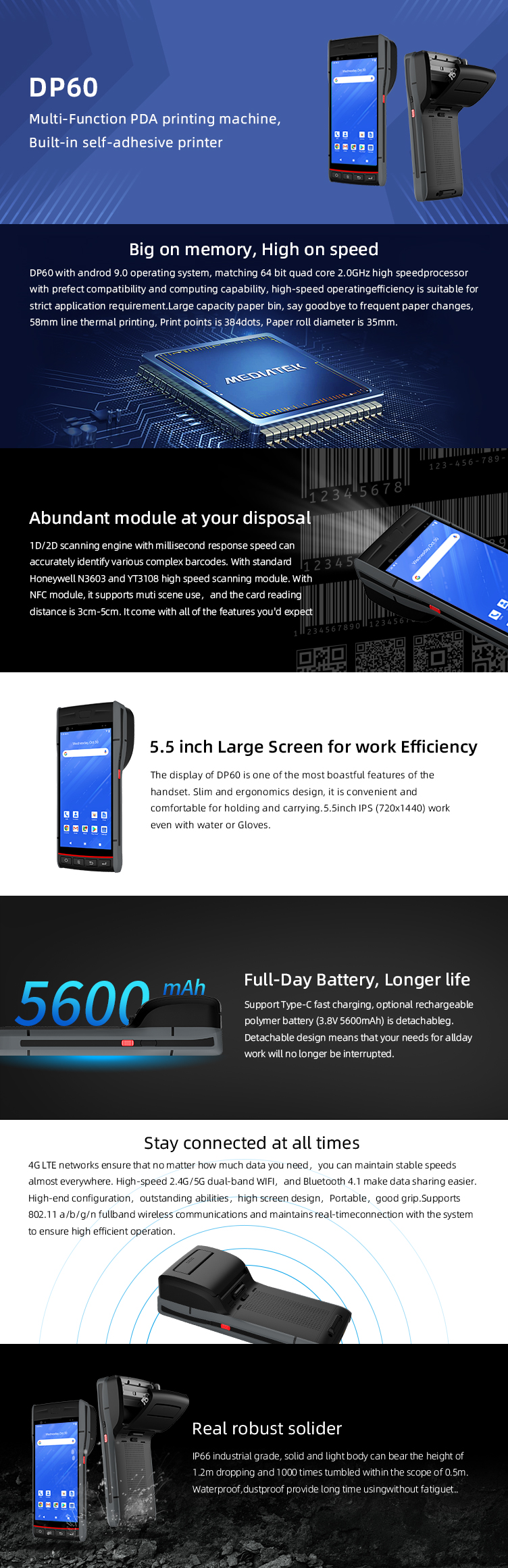

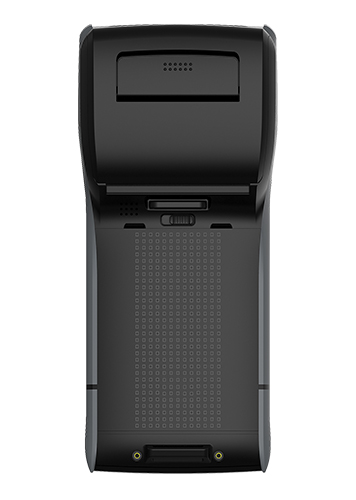

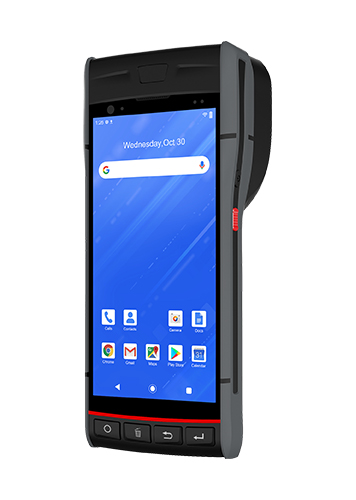

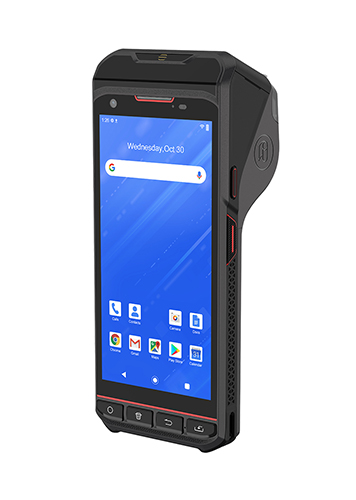

DP60
Multi-Function PDA printing machine, Built-in self-adhesive printer
Full-Features to Deliver the Best Service

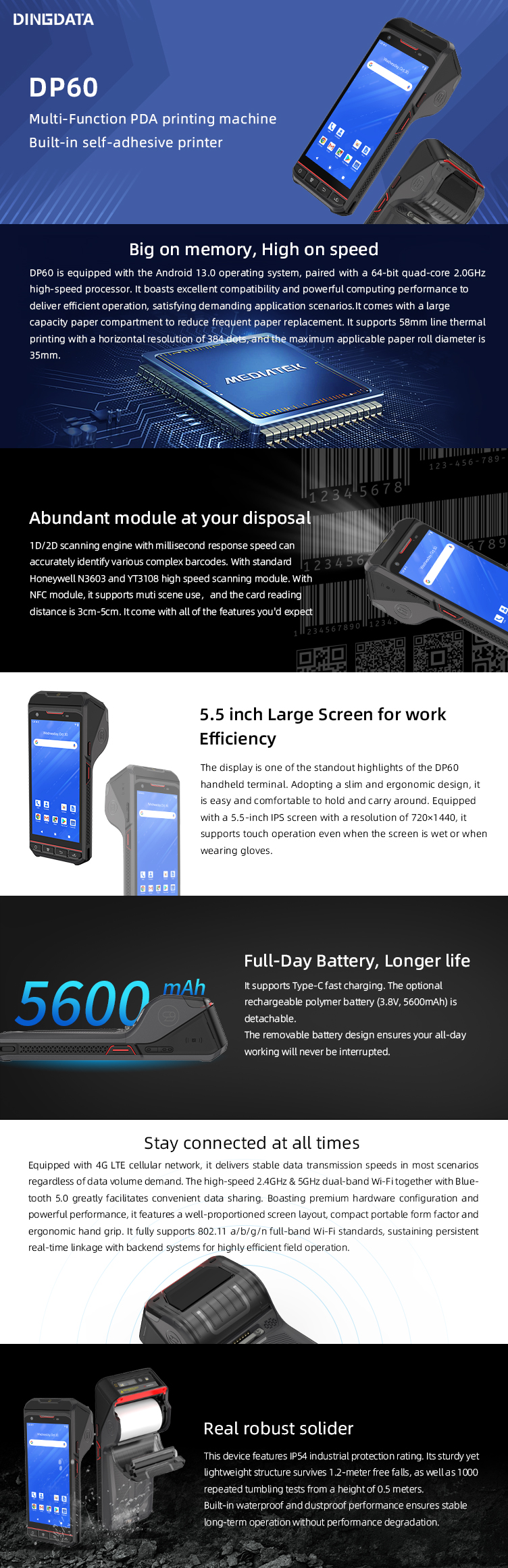

DP60 runs Android 13.0 OS, equipped with a 64-bit quad-core 2.0GHz high-speed processor. It delivers excellent compatibility and computing performance for efficient operation, meeting stringent application requirements.It features a large-capacity paper bin to reduce frequent paper replacement. It supports 58mm line thermal printing with a print resolution of 384 dots, compatible with paper rolls of maximum 35mm diameter.Type-C fast charging is supported; an optional detachable 3.8V 5600mAh rechargeable lithium polymer battery is available. The removable battery design ensures uninterrupted all-day field work.Rated IP54 industrial protection grade, the sturdy yet lightweight unit withstands 1.2m free drops, plus 1000 times tumbling within a 0.5m height range. Its waterproof and dustproof construction enables long-term stable operation without performance degradation.

| SPECIFICATIONS | |
| PHYSICAL CHARACTERISTICS | |
| Dimension | 179mm×74.5mm×22.5mm (the thinnest) 49.5mm (the printing part) |
| Weight | <500g (Depends on device function configuration) |

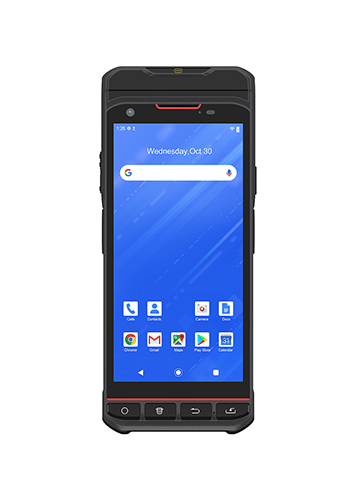

| Display | 5.5 inch IPS color display with resolution 720×1440Supports multi-touchScreen brightness:>500cd/m2 |
| Expansions | Micro SIM card x 1 , TF card × 1, PSAM×2(Optional) |

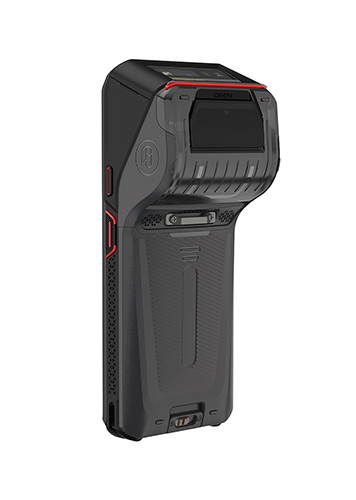

| Battery | Rechargeable polymer battery 7.6V 2800mAh (Equal to 3.8V 5600mAh) ,removableStandby time >350 hoursCharging time 3-4H, Using standard power adapter and data cable |
| Communication interface | Type-C USB x 1, OTG |
| Speaker volume | >93db (test distance 10cm) |
| Audio | Speaker (mono), Microphone, Receiver |
| main keys | Home key, Delete key, Back key,Confirm key |
| Side keys | Silicone keys: Power key, Volume +/- key, Scan key ×2 |
| Sensors | Gravity sensor, Light sensor, Proximity sensor, Vibration motor |
| PERFORMANCE CHARACTERSTICS | |
| CPU | MT6765X Octa core 64-bit 2.3GHz high-performance processor |
| Operating System | Android 13 |
| Storage | 4GB RAM + 64GB ROM , Micro SD(TF) Supports up to 256GB |
| USER ENVIRONMENT | |
| Operating Temp. | -10℃ to 55℃ |
| Storage Temp. | -40℃ to 70℃ |
| Humidity | 5%RH to 95%RH ( no-condensation ) |
| Drop Specifications | 6 sides Supports 1.2 meters drops on the marble within the operatingtemperature |
| Sealing | IP54 |
| DEVELOPMENT ENVIRONMENT | |
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| DATA COMMUNICATION | |
| WWAN | 2G:GSM(850/900/1800/1900mhz)3G:WCDMA(850/900/1900/2100mhz)4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 |
| WLAN | Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol |
| Bluetooth | Support Bluetooth 5.0+BLE Transmission distance 5-10 meters |
| GNSS | Support Gps, Galileo, Glonass, Beidou |
| DATA CAPTUER | |
| BARCODE READER(OPTIONAL) | |
| 1D/2D barcode | 2D Scanning engine : N6602-W2 |
| 1D Symbologies:UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc.2D Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc. | |
| Camera(Standard) | |
| Rear camera | 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting |
| Front camera | 2MP color camera |
| NFC (Optional) | |
| Frequency | 13.56MHz |
| Protocol | Support ISO14443A/B, 15693 agreement |
| Distance | 2cm-5cm |

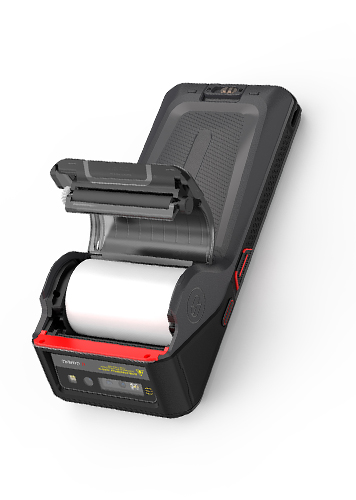

| Thermal Sticker Printer(Standard) | |
| Printing speed | 70mm/s |
| Print points | 384 dots |
| Paper slot | 58mm |
| Paper diameter | 35mm |
| Paper type | Support for Sticker / label Black mark printing |
| ACCESSORIES | |
| Standard | Adapter, Data cable, Protective film, Instruction manual |

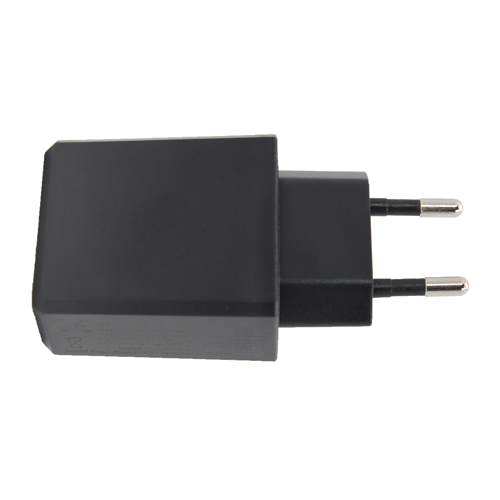

Adapter

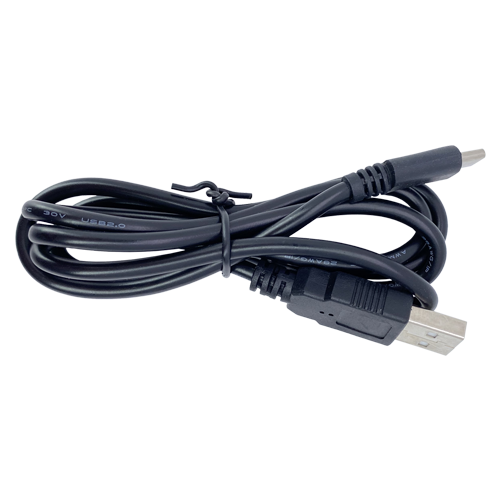

USB cable

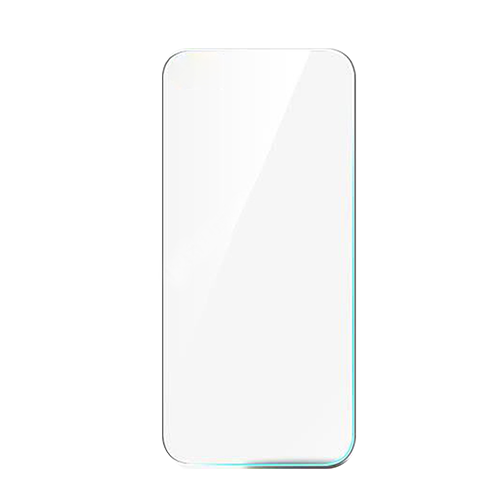

Protective screen film

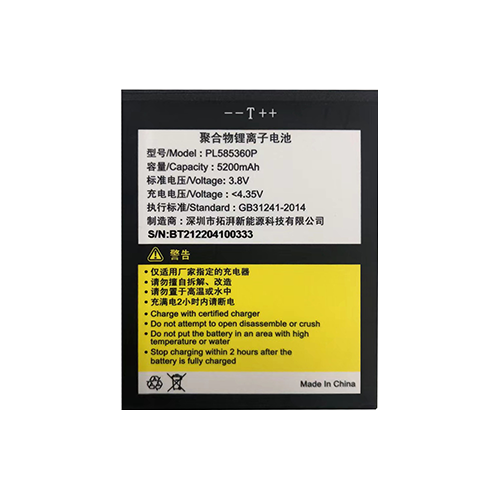

Spare Battery

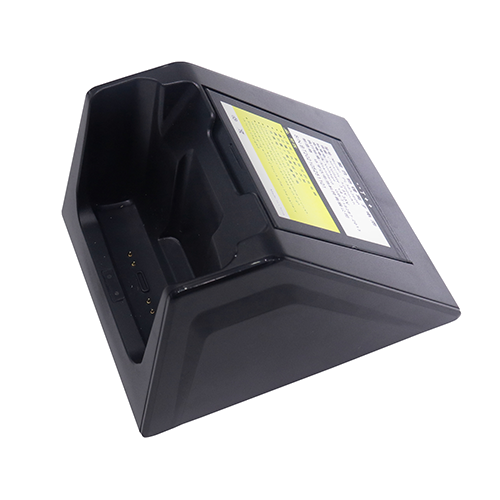

Docking charge
