| SPECIFICATIONS |
| PHYSICAL CHARACTERISTICS |
| Dimension | 183.1*88.6*24.1mm |
| Weight | Net Weight :470g (including battery&wrist strap) |

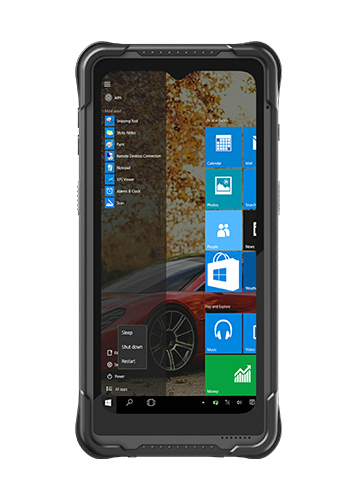

| Display / Touch Panel | Type: IPSSize: 6.5 inch full laminated TFT color full screen,Dropnotch 20:9Resolution: 720*1600Brightness: 400cd/cm²10 points Capacitive, G+FF, Corning Gorilla Glass, Hardness 6H or higher, scratch-resistant. |

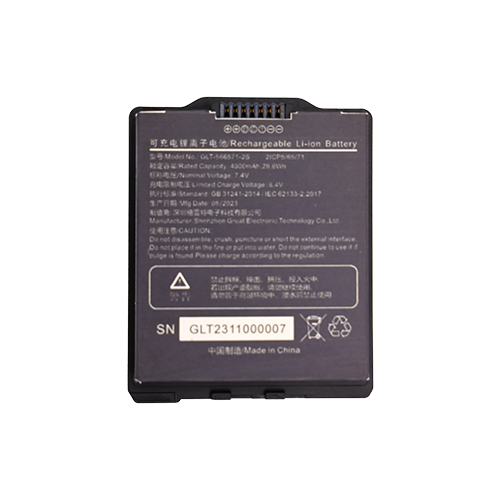

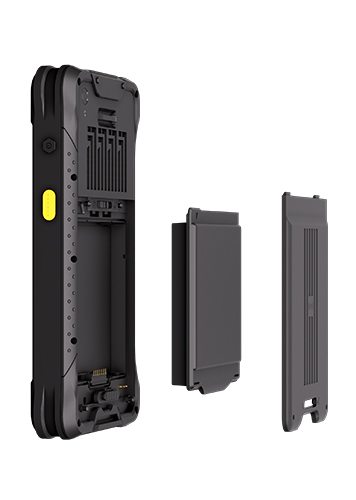

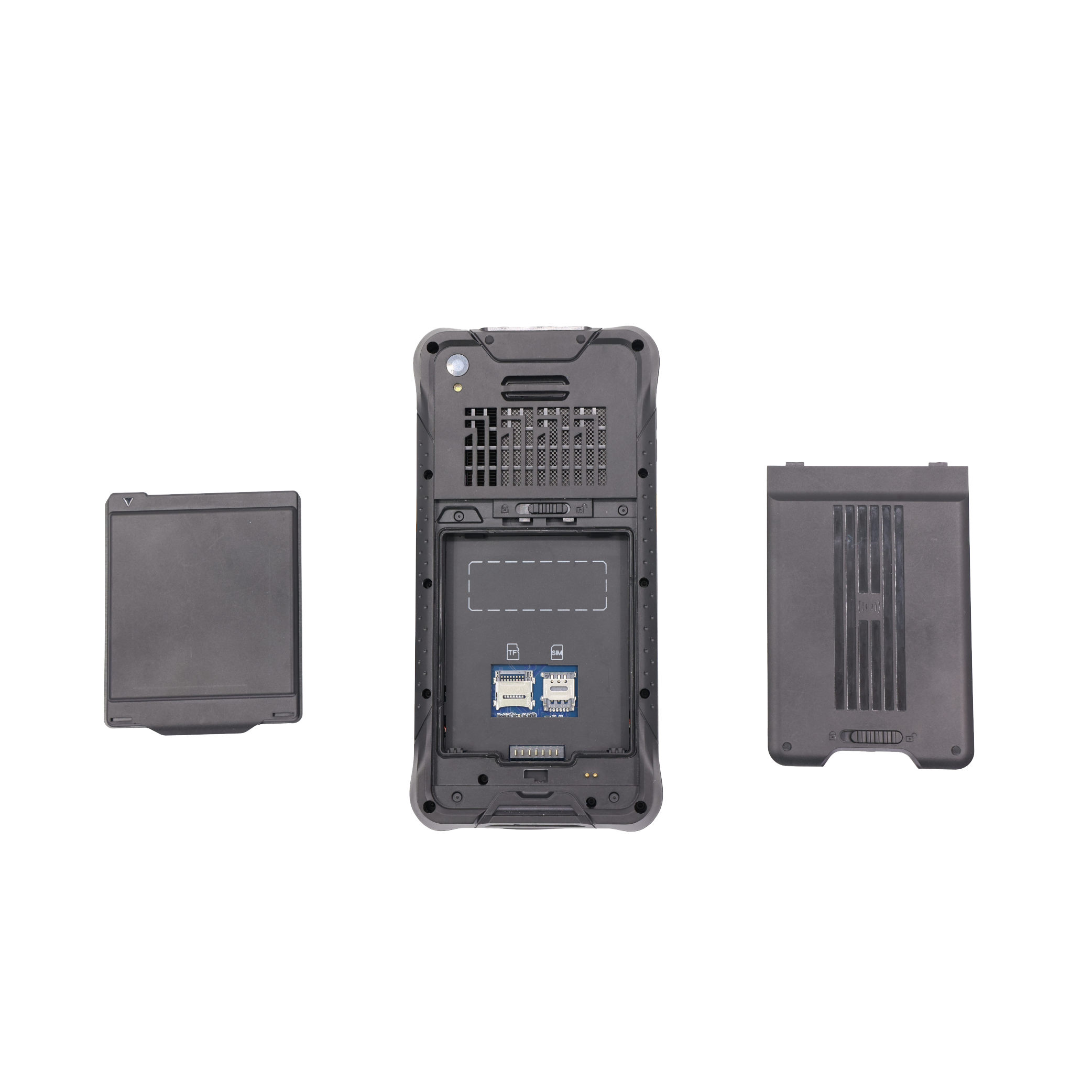

| Battery | External polymer lithium ion battery7.4V/4000mAh (same with 3.7V/8000mah capacity)About 6 hours(50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |

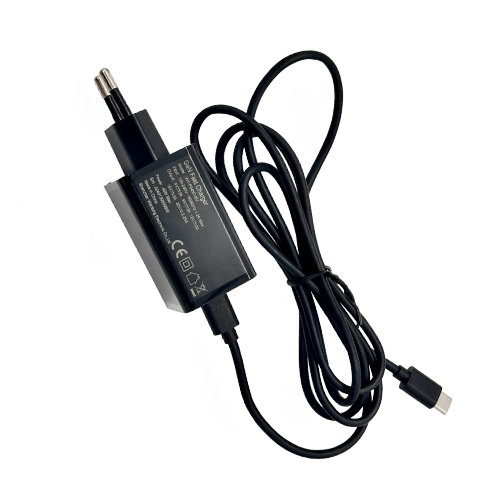

| Power Adapter | PD Fast Charge Adapter +Type-C Data Cable（1m）33W PD：5V~20V/0~1.5AOptional:(EU, US, UK, AU) Choose one of four |
| Speaker | Embedded 1Ω/1W speaker x 1 95dB@0.1m |
| I/O Interfaces | TYPE-C 2.0*1 OTG (Data transmission)Standard USB-A port/Data Transfer (3.0)TF card *1, Max: 512GBNano-SIM * 1Pogo Pin (Suitable docking charger ) |
| Buttons | Power *1Volume Adjustment Key (+) *1Volume Adjustment Key (-) *1Bar code scanning (left and right)*2 |
| Camera | Front 5MPRear 8MP, autofocus with flash |
| PERFORMANCE CHARACTERSTICS |
| CPU | Intel JASPER LAKE N5100Intel® UHD Graphics 620 |
| Operating System | Windows 11 Pro(Optional:Home/IOT) |
| Storage | RAM 8GB LPDDR4 + ROM 128GB EMMC |
| USER ENVIRONMENT |
| Operating Temp. | -20℃ to 60℃ |
| Storage Temp. | -30℃ to 70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |
| Drop Specifications | Drop test height:1.5m Composite wood floor working (Power-on state) |
| IP Protective Level | IP65, IEC compliance |
| DATA COMMUNICATION |
| WWAN | 2G/3G/4G:750VELTE FDD: B1/B3/B7/B8/B20 LTE TDD: B40WCDMA: B1/B5/B8GSM: 900/1800China (Unicom, Telecom, Mobile) Europe, Middle East, Africa, Taiwan, JapanOptional: 750-VA，LTE-FDD: B2/4/5/12/13/17/18/25/26 LTE-TOD:B41WCDMA: B2/4/5CDMA&EVDO: BC0/BC1GSM: 850/1900750-VSA,LTE-FDD: B2/4/5/7/8/28LTE-TOD:B40WCDMA: B2/5/8GSM:850/900/1900 |
| WIFI | WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G |
| Bluetooth | BT5.0 (BLE) class1 transmission distance:10m |
| GPS | GPS+GLONASS, accuracy of 5 m |
| DATA CAPTUER |
| Barcode Scanning (optional) | Honeywell N4680Optical resolution: 5milScanning speed: 30 times /sSupport code: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse" |
| RFID HF（NFC） (optional) | 13.56MHz, Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, reading distance: 3-5cm |
| ACCESSORIES |

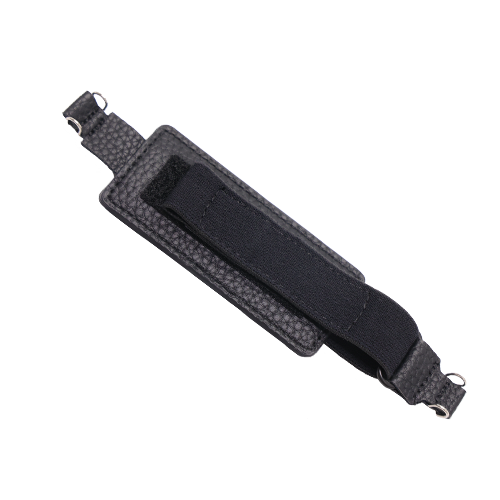

| Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable;1xHand strap; |

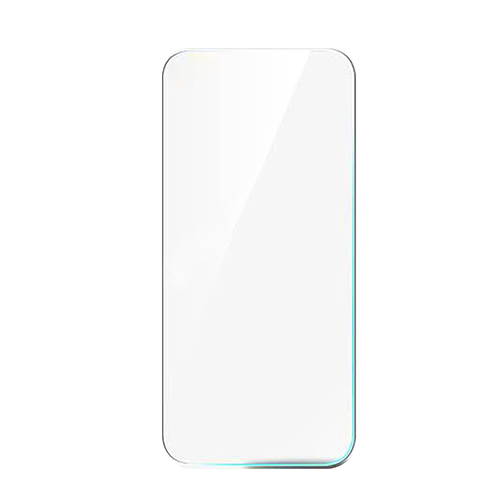

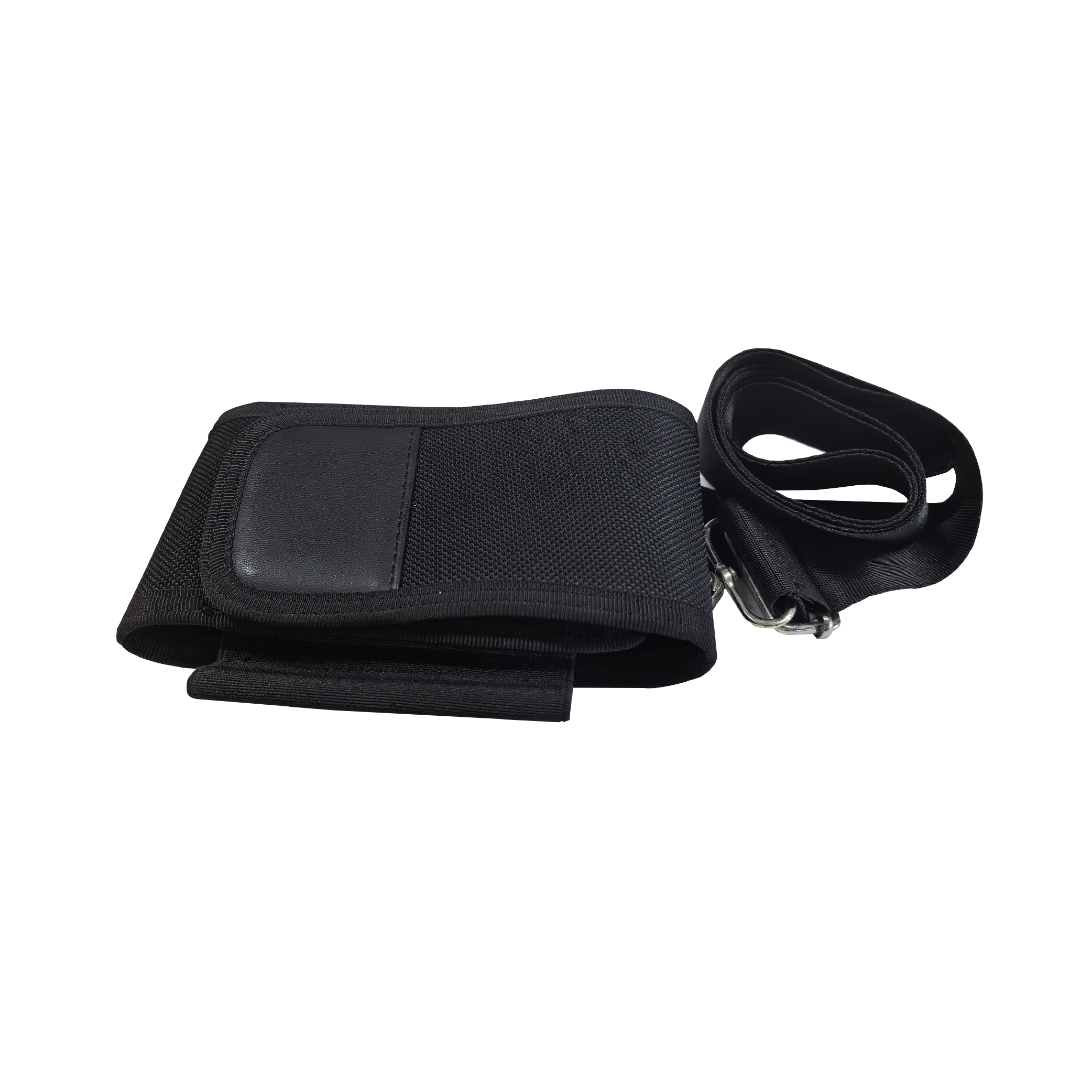

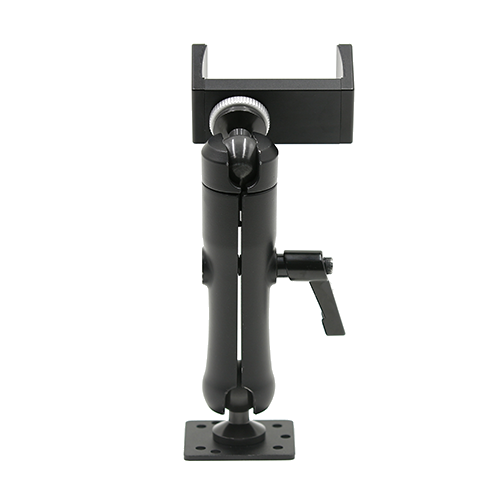

| Optional | Carrying case; Docking Cradle;Spare battery; TP Resist film; Vehicle Mount |
