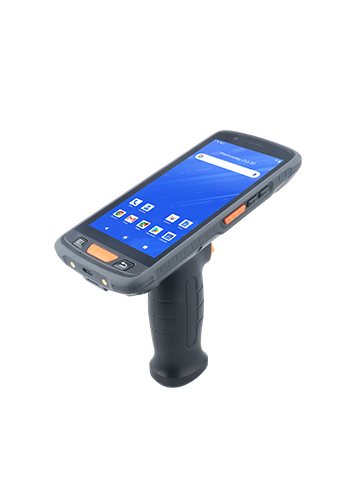

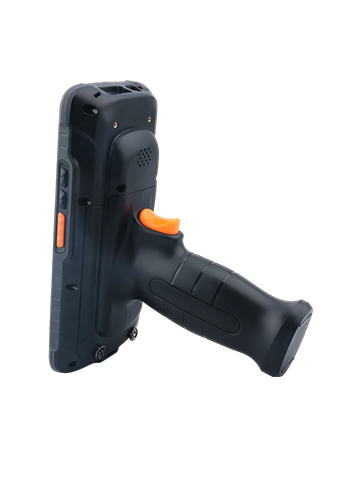

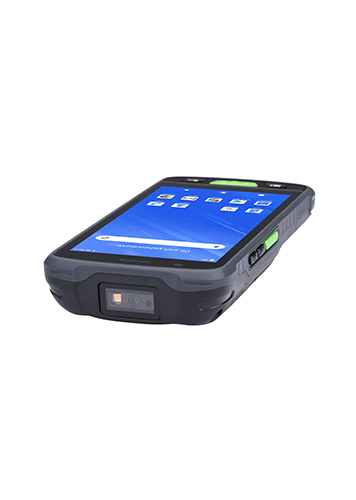

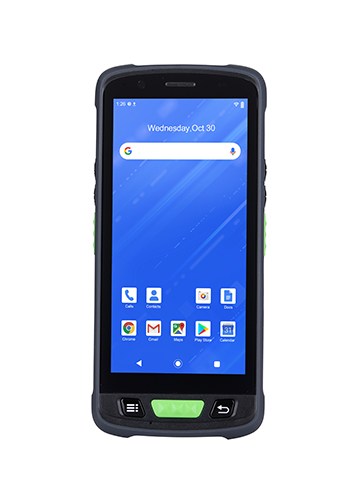

DT55
Logistics /Retail /Warehousing Dedicated Rugged Handheld Terminal
Full-Features to Deliver the Best Service
DT55 is comes with a 5.5 inch screen that has a resolution of 1440*720 pixels and 18:9 as the aspect ratio. It further assures you of a crystal clear and immersive experience.1D/2D scanning engine with millisecond response speed can accurately identify various complex barcodes. With NFC module,it supports muti scene use,and the card reading distance is 3cm-5cm. It come with all of the features you'd expect. DT55 is equipped with a Octa-core 2.0Ghz Processor so that you can enjoy an uninterrupted preference. It features Android 11 OS. The incredible speed and smooth performance that make multi-tasking really easy.A super larger memory of ROM lets you download and save more data.
Model | DT55 |
Dimension | 170mm(L) X 78mm(W) X 17mm(D) |
OS | Android 11 system |
CPU | Cortex-A53 Octa-core 2.0GHz |
Weight | less than 350g(with battery) |
Display | 5.5 inch IPS highlight screen |
Memory | 4GB RAM+ 64GB ROM |

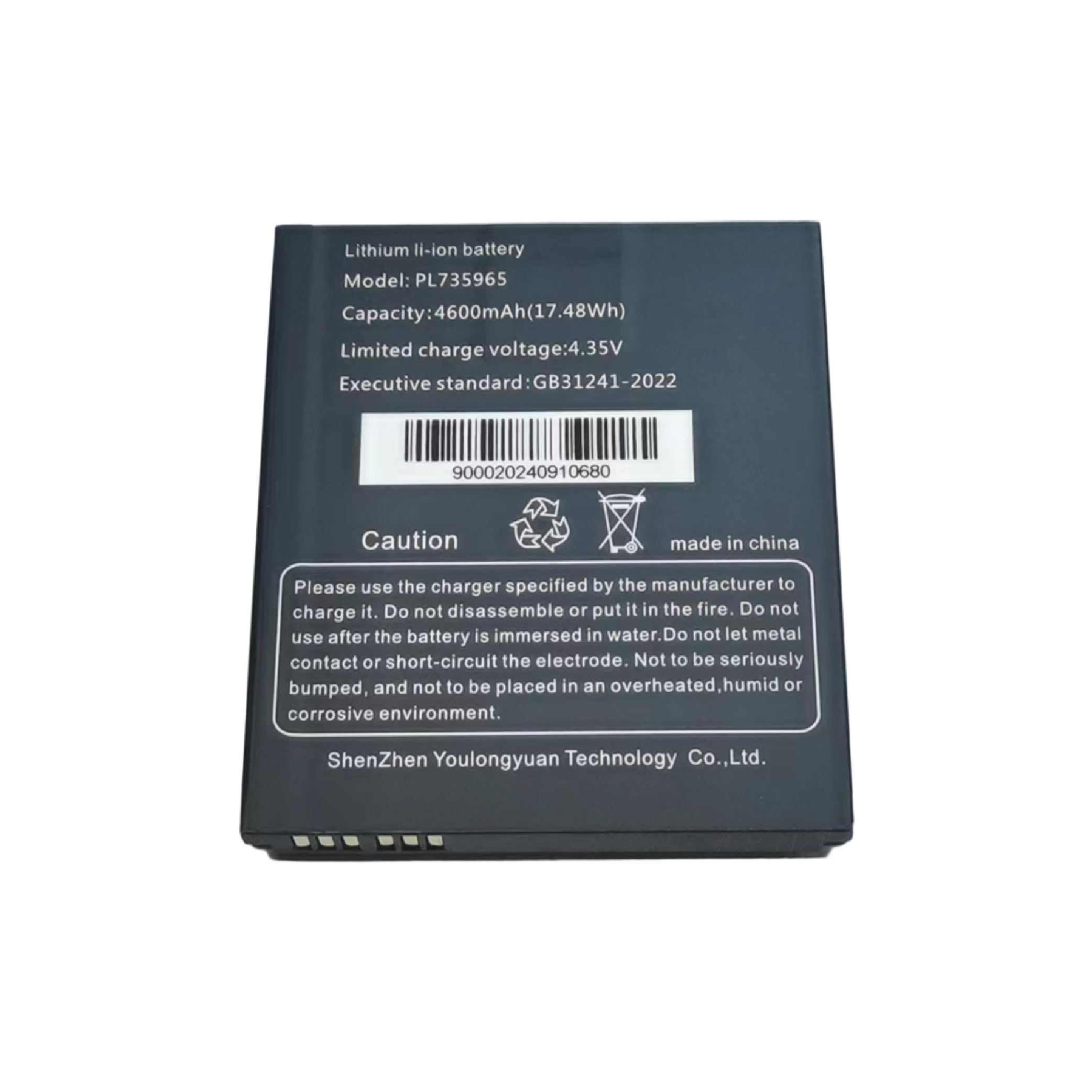

Battery Capacity | Device: Built-in 4600mAh removable lithium battery,Support fast charging (Optional 6000mAh and 9000mAh big battery) |
Expansion slot | TF card *1 (256GB Max) |
Resolution | 1440*720 |
Keypad | 1 power key,3 scan keys,2 volume keys,1 PTT key,1 menu key,1 return key |
GNSS | GPS/AGPS,GLONASS,BeiDou,Galileo,internal antenna |
SIM | Nano SIM card slot*2 |
1D/2D barcode engine (Optional) | Support Minde660 Barcode Scanner, Optional Honeywell:N5703;Zebra:SE4710 |
IP rating | IP67 |
Drop Resistance | 6 sides can withstand the impact of 1.5 meters drop to the concrete floor |
Camera | 13MP autofocus rear camera with flash, 8MP front camera |
Interface Configuration | USB Device,Type-C,OTG,extended thimble |
3G/4G | 3G:WCDMA(850/900/1900/2100Mhz)CDMA EVDO:BCO4G:TDD -LTE (B38/B39/B40/B41) FDD-LTE (B1/B3/B5/B7/B8/B20) |
Operate Temperature | -20°C ~ 55 °C |
Store Temperature | -30°C ~ 70 °C |
NFC/RFID (Optional) | Supporting agreement: ISO14443A/B,ISO15693,NFC Reading distance: 0~5cm, 13.56MHz |
Wifi | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
Bluetooth | BT5.0 BLE |

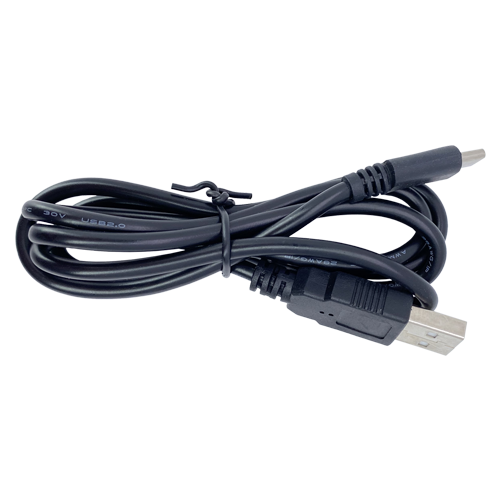

USB Cable

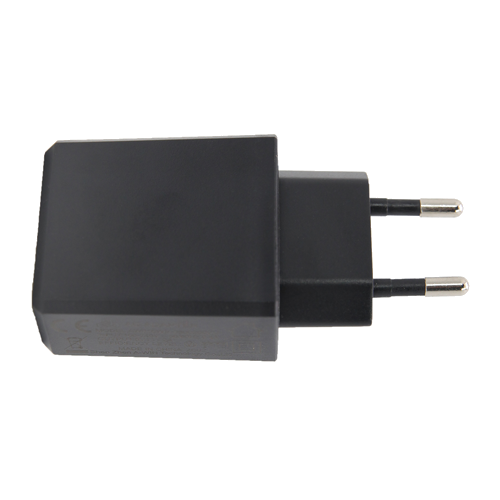

Power Adapter

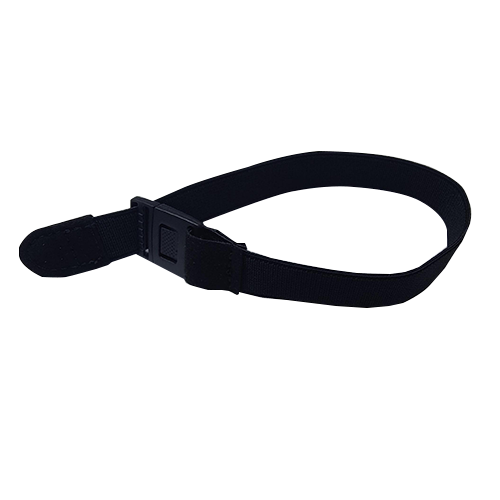

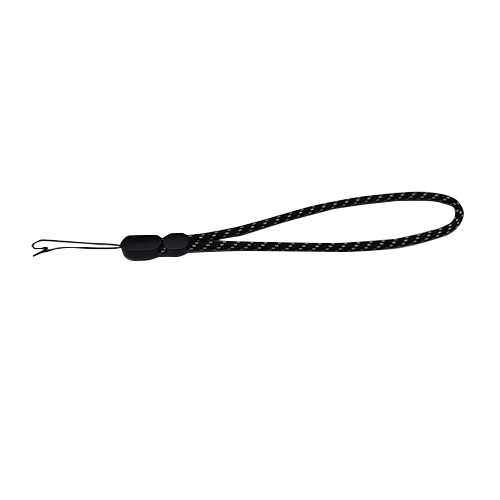

Hand-strap 2

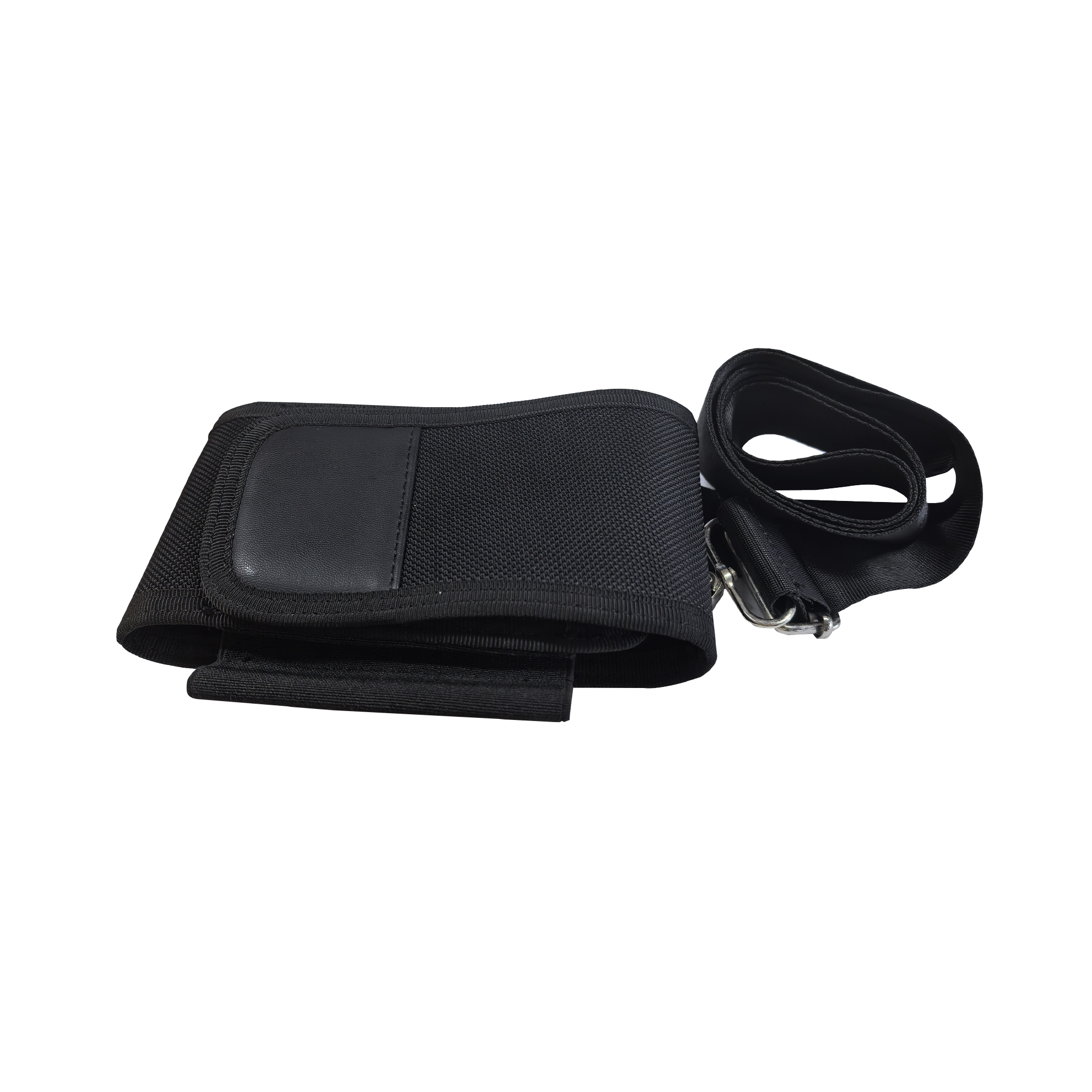

Hand-strap 1

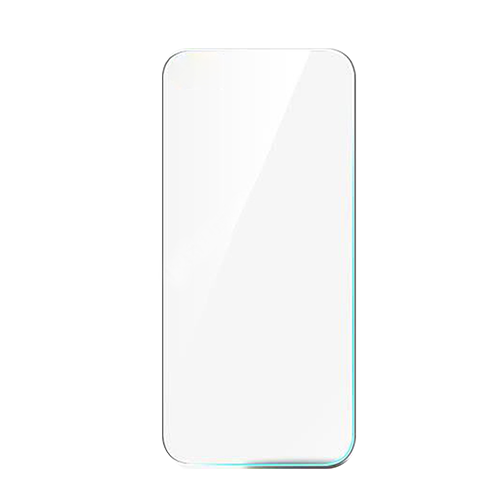

Protective screen film

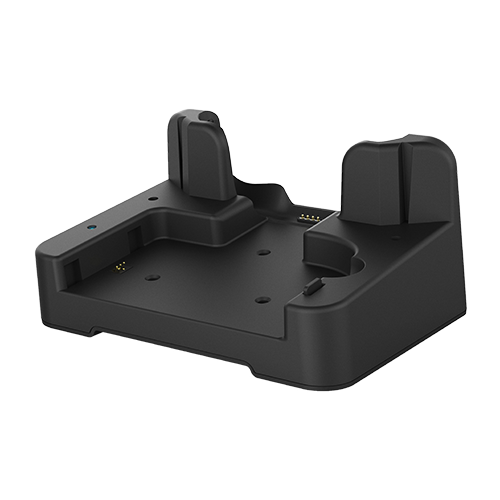

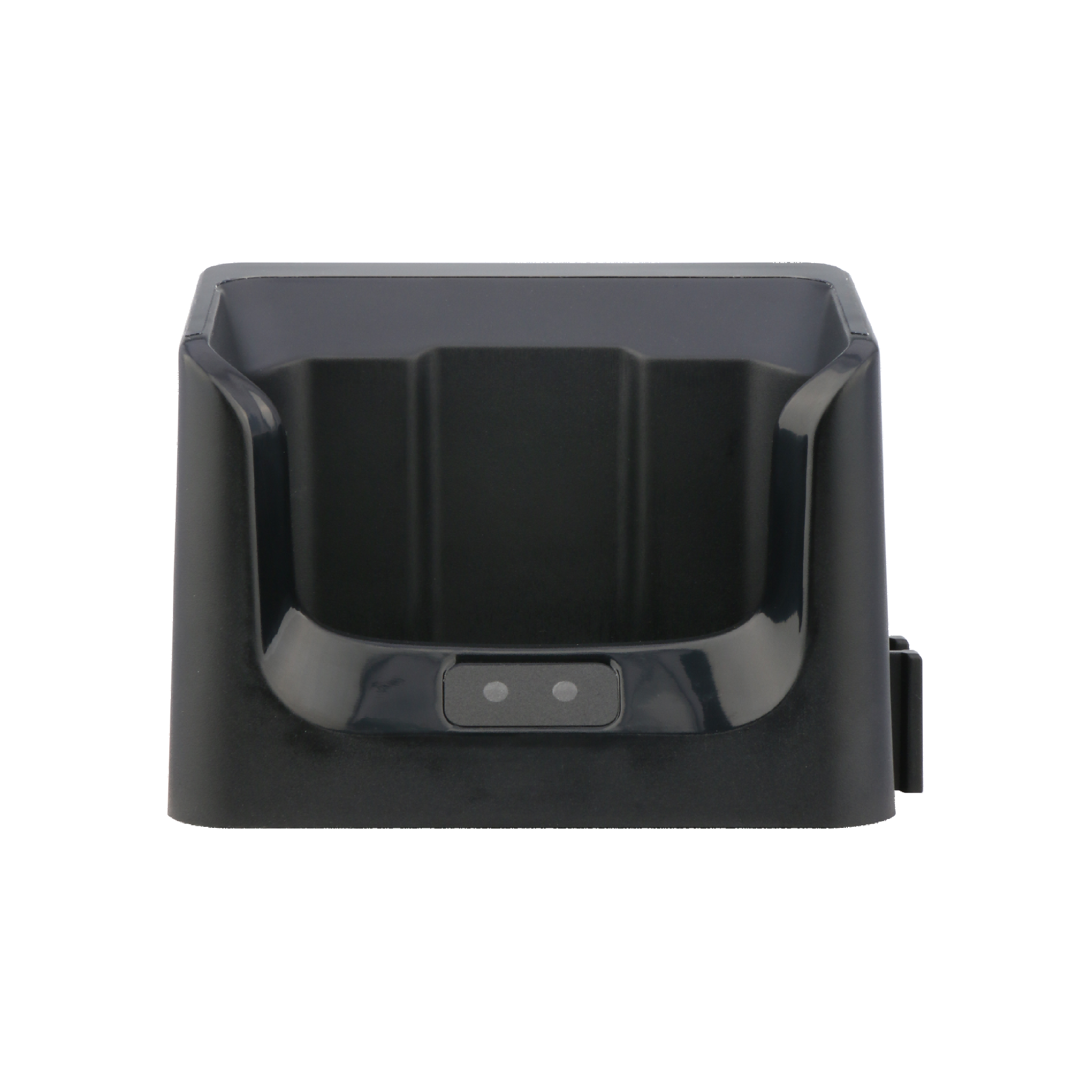

Docking Charger
