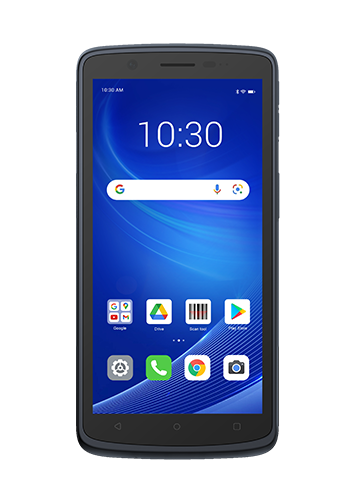

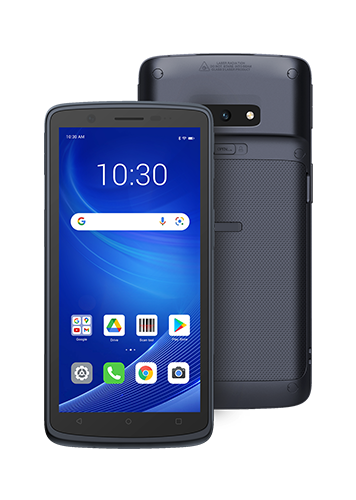

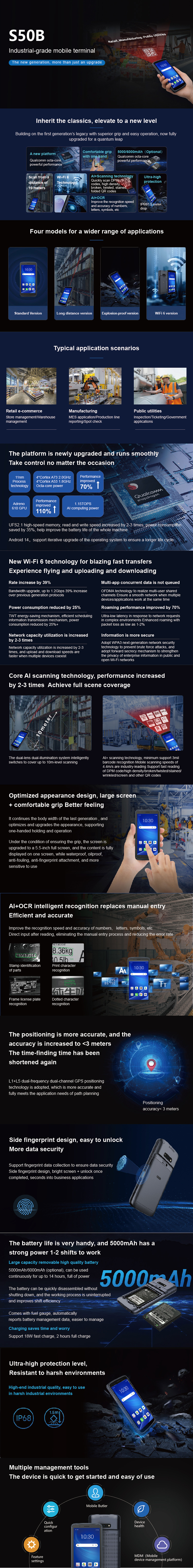

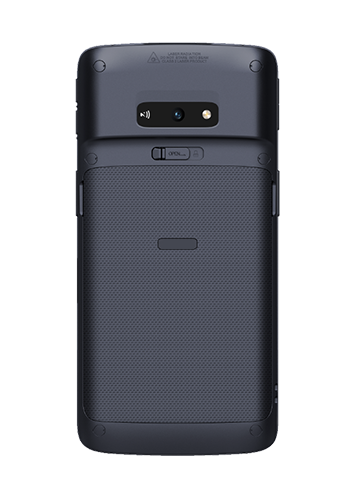

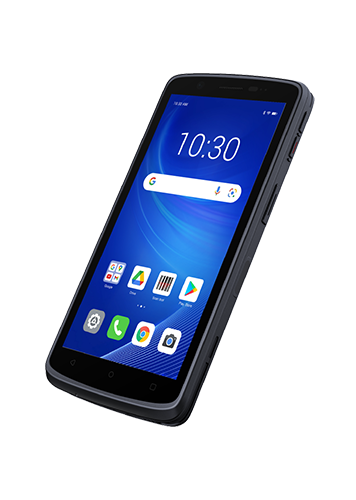

S50B

Design for retail industry，the latest Wi-Fi 6 of mobile computer

Full-Features to Deliver the Best Service

A new generation of S50B equipment has been introduced by Dingdata, based on its strong R&D technology. Android 14 OS with Qualcomm Snapdragon octa-core 2.0 GHz processor, running performance is 100% higher than the first generation equipment so that a variety of applications can be used smoothly. The latest Wi-Fi 6 ready technology, compared to the first generation, has significantly improved connection stability and transmission distance. Additional optional ex-range scanner which can reach 10m reading can enlarge the feasibility in warehouse and outdoor.

Features
Specification
Accessories
Download


Model	S50B
Dimension	156 mm L x 76 mm W x 13.9 mm H
OS	Android 11 or 14
CPU	Qualcomm Octa-core 2.2GHz high-performance processor
Weight	255 g (5000mAh model)279 g (6000mAh model)
Display	5.5 in. color HD (720 x 1440) Capacitive touch, supporting wet hand mode and glove mode
Memory	4GB RAM/64 GB Flash memory.8GB RAM/128 GB Flash memory (Optional

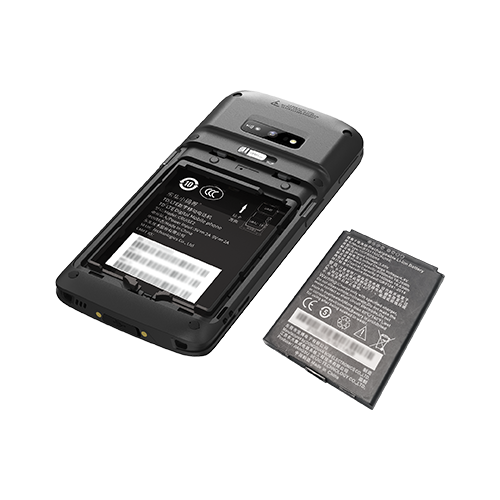

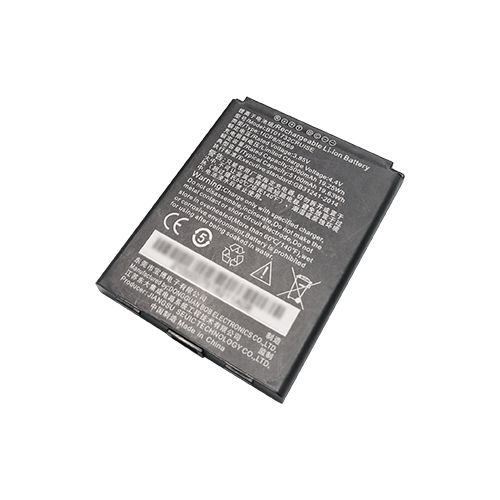

Battery Capacity	Detachable 5000mAh Li-ion rechargeable battery with hot-swap, (optional 6000mAh)
Expansion slot	Micro SD(TF) card slot up to 256GB
Notifications	Sound, vibrator, LED light indication
Keypad	Volume +/ - button, Power ON/OFF button, Left Scan button, Right Scan button, Custom button, Virtual On-Screen button (Return button, Home button, Menu button)
Sensor	G-sensor, light sensor, proximity sensor, electronic compass, gyroscope
Interface/ Communication	Waterproof Type-C USB interface, supporting Type-C earphone, USB2.0 Highspeed, OTG and fast charge, Nano/TF card, card slot with two out of three
2D barcode (Optional)	X3 2D Barcode scannerHoneywell N6803-FRCamera scanning
IP rating	IP68
Drop Resistance	6 sides can withstand the impact of 1.5 meters drop to the concrete floor
Camera	Front: 5 MPRear: 13 MP autofocus, flash LED with flashlight mode
Fingerprint identification	Support
3G/4G LTE	GSM:Qual Band(850/900/1800/1900Mhz)TD-SCDMA: Band34, Band39WCDMA: Band1, Band2, Band5, Band8CDMA 1x /EVDO: BC0TDD-LTE: Band34, Band38, Band39, Band40, Band41FDD-LTE: Band1, Band3, Band5, Band7, Band8, Band20, Band28
Operate Temperature	-20°C ～ 55 °C
Store Temperature	-40°C ～ 70 °C
NFC/RFID	Supports tags ISO15693, ISO14443A/B (without encryption protocol), ISO14443A with encryption protocol (Mifare One S50,S70 and compatible cards); supports NFC Protocol
Wifi	IEEE 802.11 a/b/g/n/ac/ax ready /d/e/h/i/k/r/v/w (2.4G/5G dual-band WIFI 6) protocol
Bluetooth	Support Bluetooth 5.1+BLE，transmission distance 5-10 meters

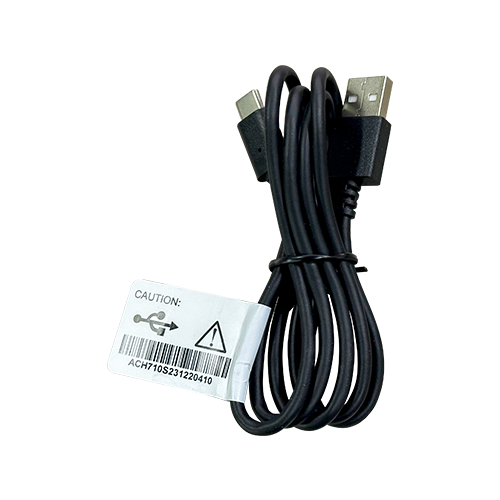

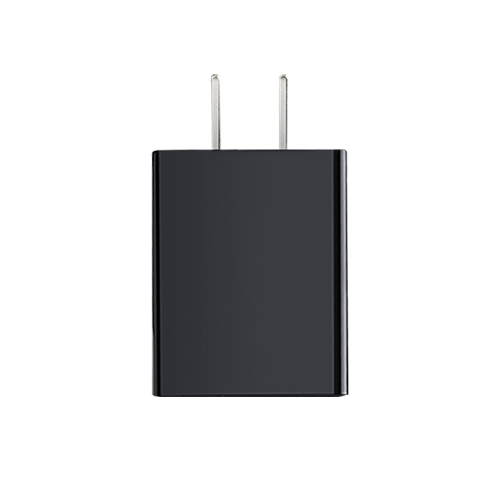

Standard accessories	Power Adapter(18W), USB Cable

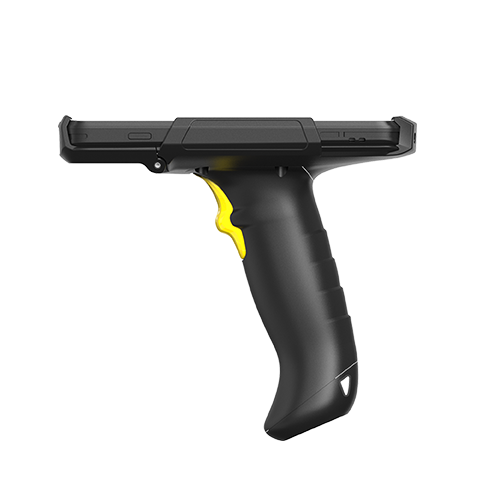

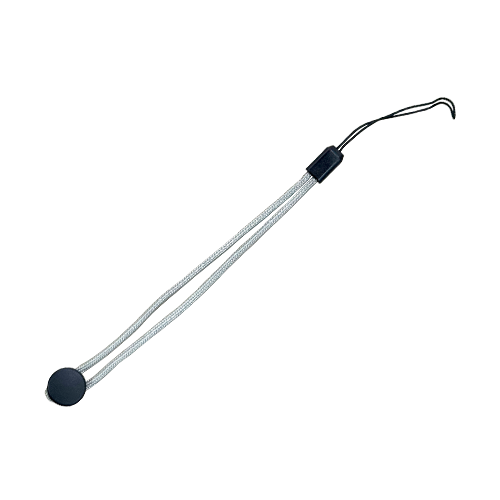

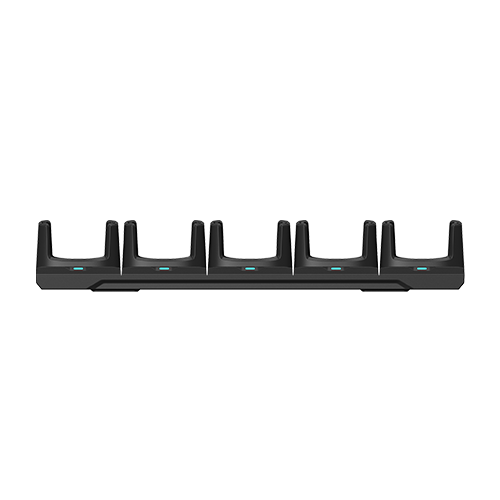

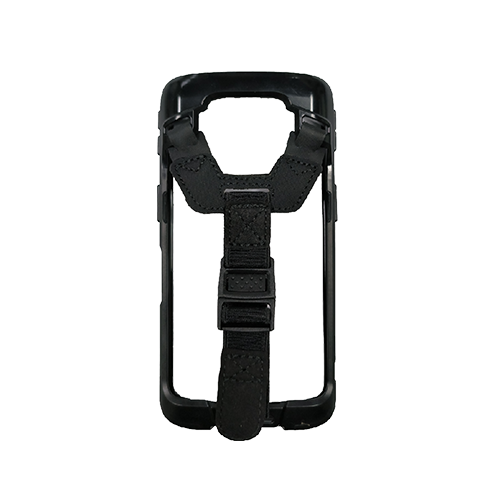

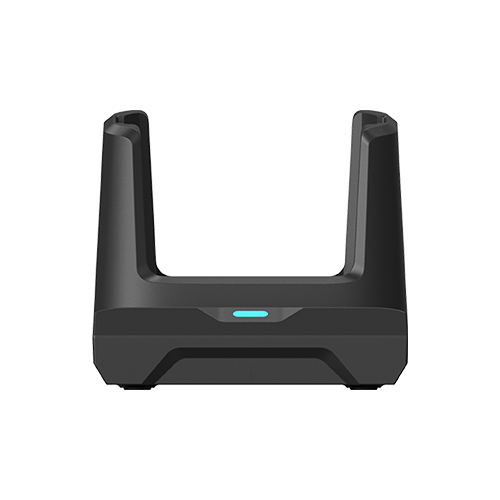

Additional optional accessories	Protective cover (including hand strap), Single device charging cradle ,5-slot cradle, 4 batteries charger, pistol grip
