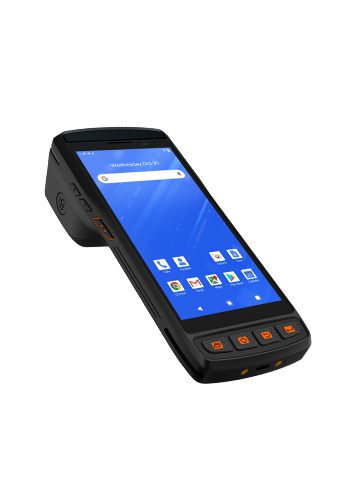

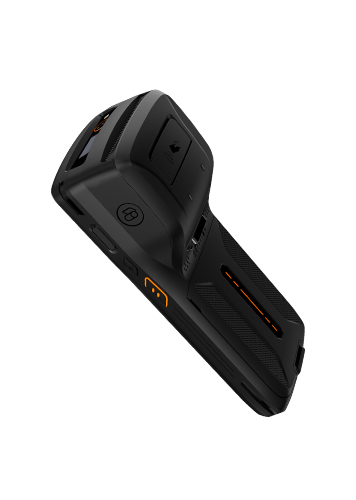

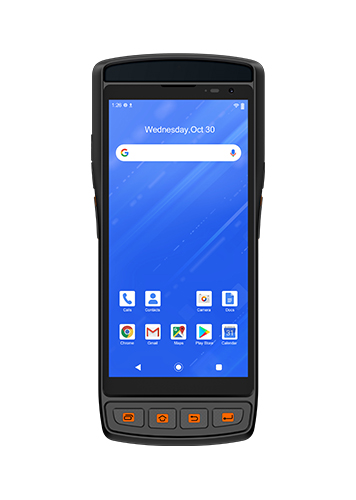

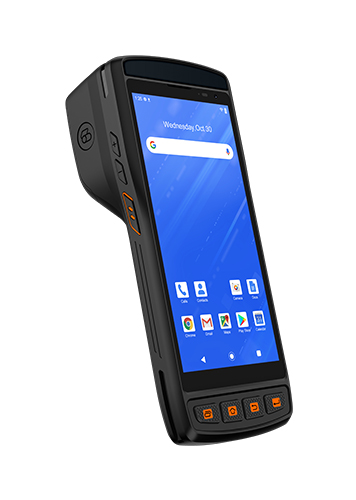

DP55
Multi-Function PDA printing Handheld, Built-in self-adhesive printer
Full-Features to Deliver the Best Service
DP55 have a outstanding appearance and fashionable dazzling, with androd 11 operating system, matching 64 bit quad core 2.0GHz high speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement. Large capacity paper bin, say goodbye to frequent paper changes, 58mm line thermal printing, Print points is 384dots, Paper roll diameter is 35mm. Support Type-C fast charging, optional rechargeable polymer battery (3.8V 9000mAh) is detachableg. Detachable design means that your needs for all-day work will no longer be interrupted. IP66 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof, dustproof provide long time using without fatiguet.

| SPECIFICATIONS | ||
| PHYSICAL CHARACTERISTICS | ||
| Dimension | 177mm×72.5mm×21.5mm (the thinnest) 44.5 (the printing part) | |
| Weight | <400g(Depends on device function configuration) | |
| Display / Touch Panel | 5.5 inch IPS color display with resolution 720×1440Supports multi-touch | |
| Expansions | Nano SIM card x 2 , TF card × 1,PSAM×2(Optional) | |
| Battery | Rechargeable polymer battery 7.6V 3000mAh (equal to 3.8V 6000mAh) ,removableStandby time >360 hours,Working time > 13 hours,Charging time 3-4H, Using standard power adapter and data cable | |
| Power Adapter | Output DC 5V2A American standard has passed CE certificationOptional:(EU, US, UK, AU) Choose one of four | |
| Audio | Speaker (mono), Microphone, Receiver | |
| I/O Interfaces | Type-C USB x 1, OTG, Nano SIM card x 2 , TF card × 1,PSAM×2(Optional) | |
| Buttons/keys | main keys Menu key, Home key, Back key,Confirm keySide keys Silicone keys: Power key, Volume +/- key, Scan key ×2 | |
| Camera | 3MP HD camera,Support auto focus,Flash, Anti-shake, Macro shooting8MP color camera (Optional) | |
| PERFORMANCE CHARACTERSTICS | ||
| CPU | Cortex-A53 Octa core 64-bit 2.0GHz high-performance processor | |
| Operating System | Android 11/15/GMS | |
| Storage | RAM 4GB / ROM 64GB(optional 3GB+32GB) | |
| USER ENVIRONMENT | ||
| Operating Temp. | -20℃ to 55℃ | |
| Storage Temp. | -40℃ to 70℃ | |
| Humidity | 5%RH to 95%RH(non-condensing) | |
| Drop Specifications | 1.2 meters drops on the marble within the operating temperature | |
| IP Protective Level | IP65(Except for the print head section) | |
| DEVELOPMENT ENVIRONMENT | ||
| SDK | Software Development Kit | |
| Language | Java | |
| Environment | Android Studio or Eclipse | |
| DATA COMMUNICATION | ||
| WWAN | 2G:GSM(850/900/1800/1900mhz)3G:WCDMA(850/900/1900/2100mhz) TD-SCDMA:A/F(B34/B39)4G:FDD:B1/B3/B4/B5/B7/B8/B12/B17/B20 TDD:B38/B39/B40/B41 | |
| WIFI | Dual-band 2.4GHz / 5GHz,Support IEEE 802.11ac/a/b/g/n/d/ protocol | |
| Bluetooth | Support Bluetooth 5.0+BLE Transmission distance 5-10 meters | |
| GPS | GPS, Galileo, Glonass, Beidou | |
| DATA CAPTUER | ||
| Barcode Scanning (optional) | Minde 660, Zebra SE4710,Honeywell N5703 | |
| RFID HF(NFC)(optional) | Frequency: 13.56MHzProtocol: Support ISO14443A/B, 15693 agreementDistance: 2cm-5cm | |
| Thermal sticker printer | Printing speed: 70mm/sPrint points: 384 dotsPaper slot: 58mmPaper diameter: 35mmPaper type: Support for Sticker / label Black mark printing | |
| ID Card(Optional) | Radio frequency technology:Comply with ISO/IEC 14443 type B standard, GA450-2003 General Technical Requirements for desktop ID card Reader, 1GA450-2003 General Technical Requirements for desktop ID Card Reader Amendment No. 1 (draft)Security module: Radio frequency technologyDistance:0~5cmReading time:<1.55sFrequency:13.5MHz±7kHz | |
| ACCESSORIES | ||
| Standard | 1xProtective film; 1xAdaptor with USB cable; 1xHand-strap | |
| Optional | Replacement battery,Leather protective case,Docking Charger | |

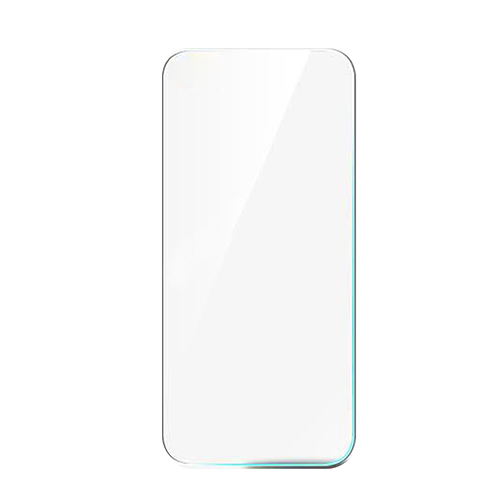

Screen protector

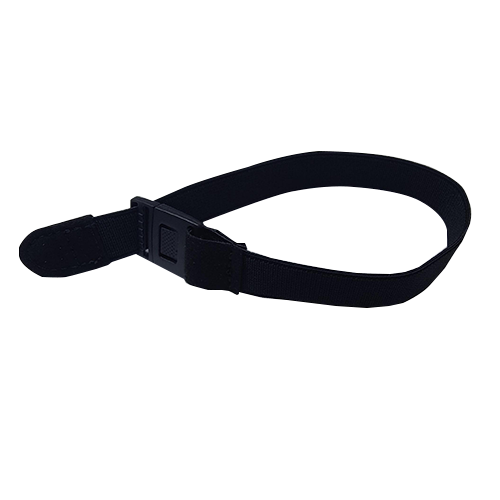

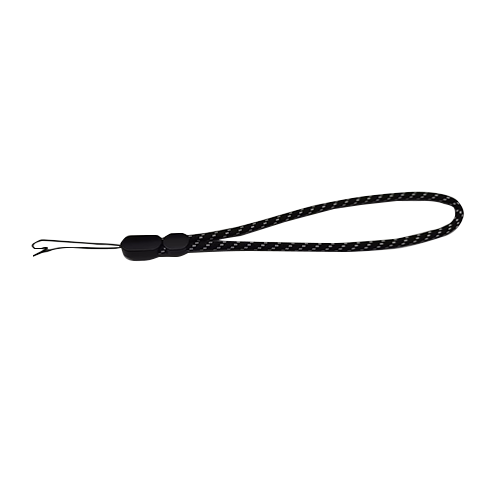

Hand-strap1

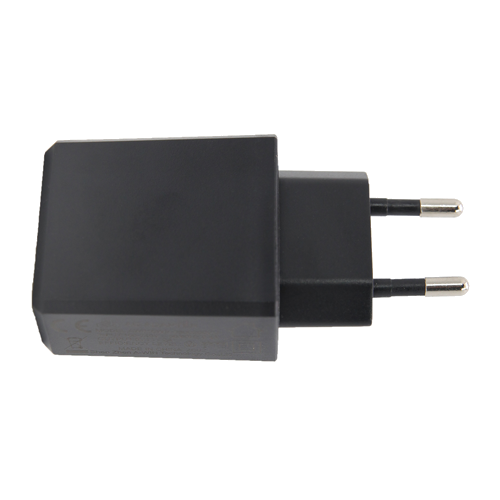

Adapter

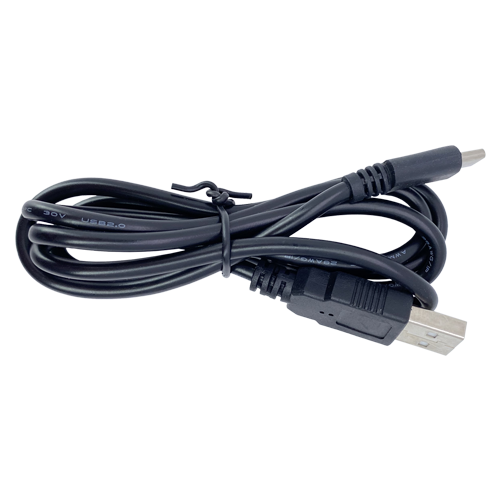

USB Cable

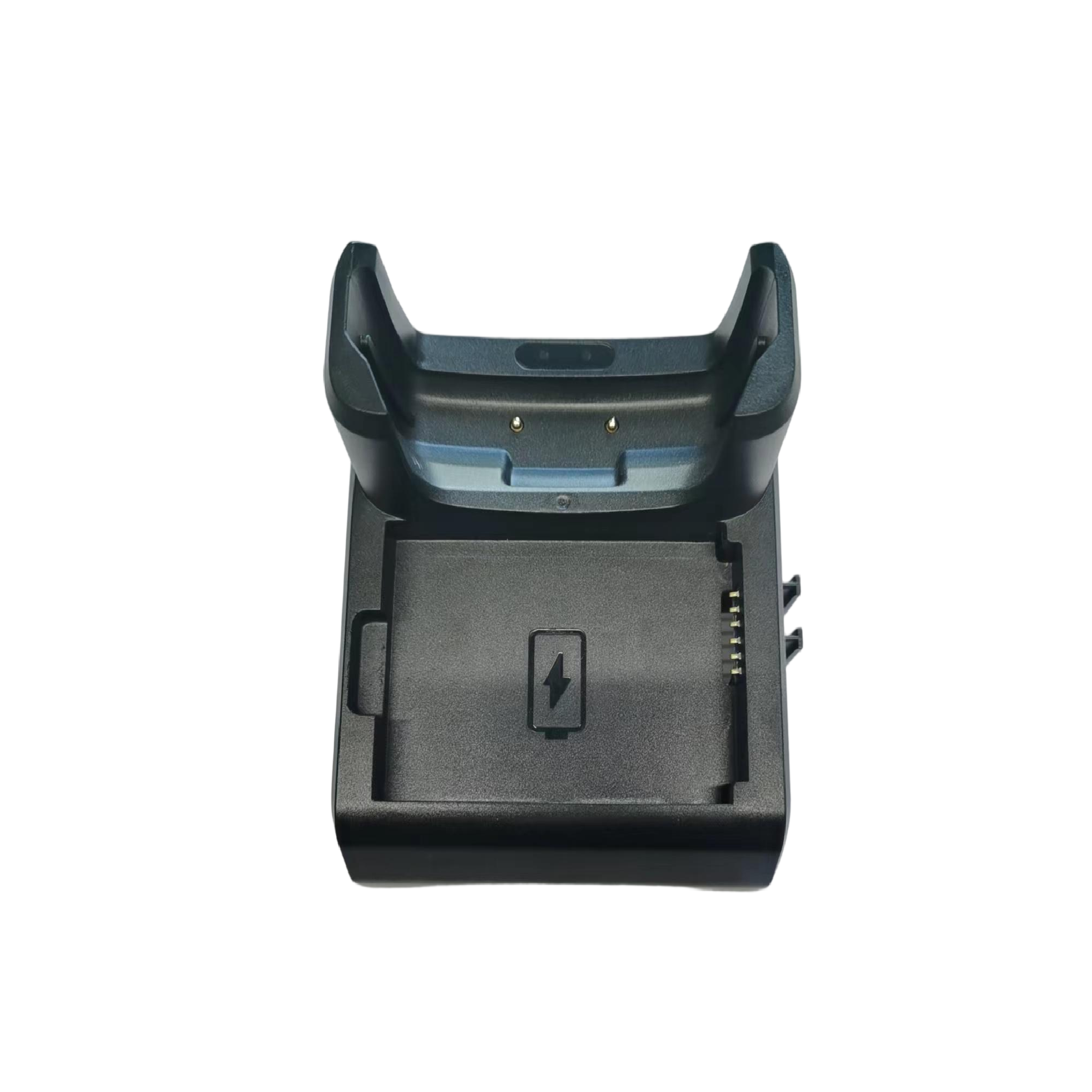

Docking Charger

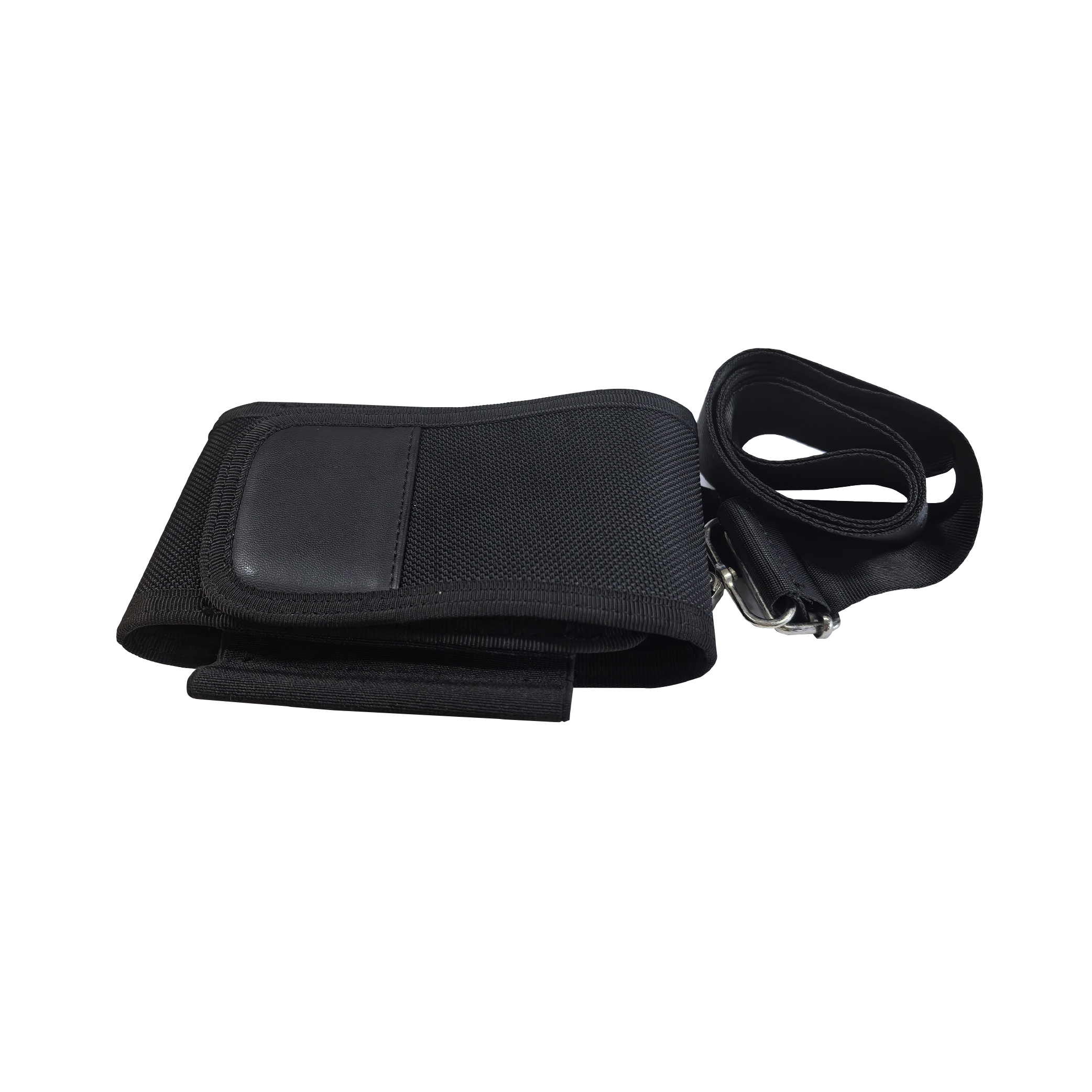

Leather protective case

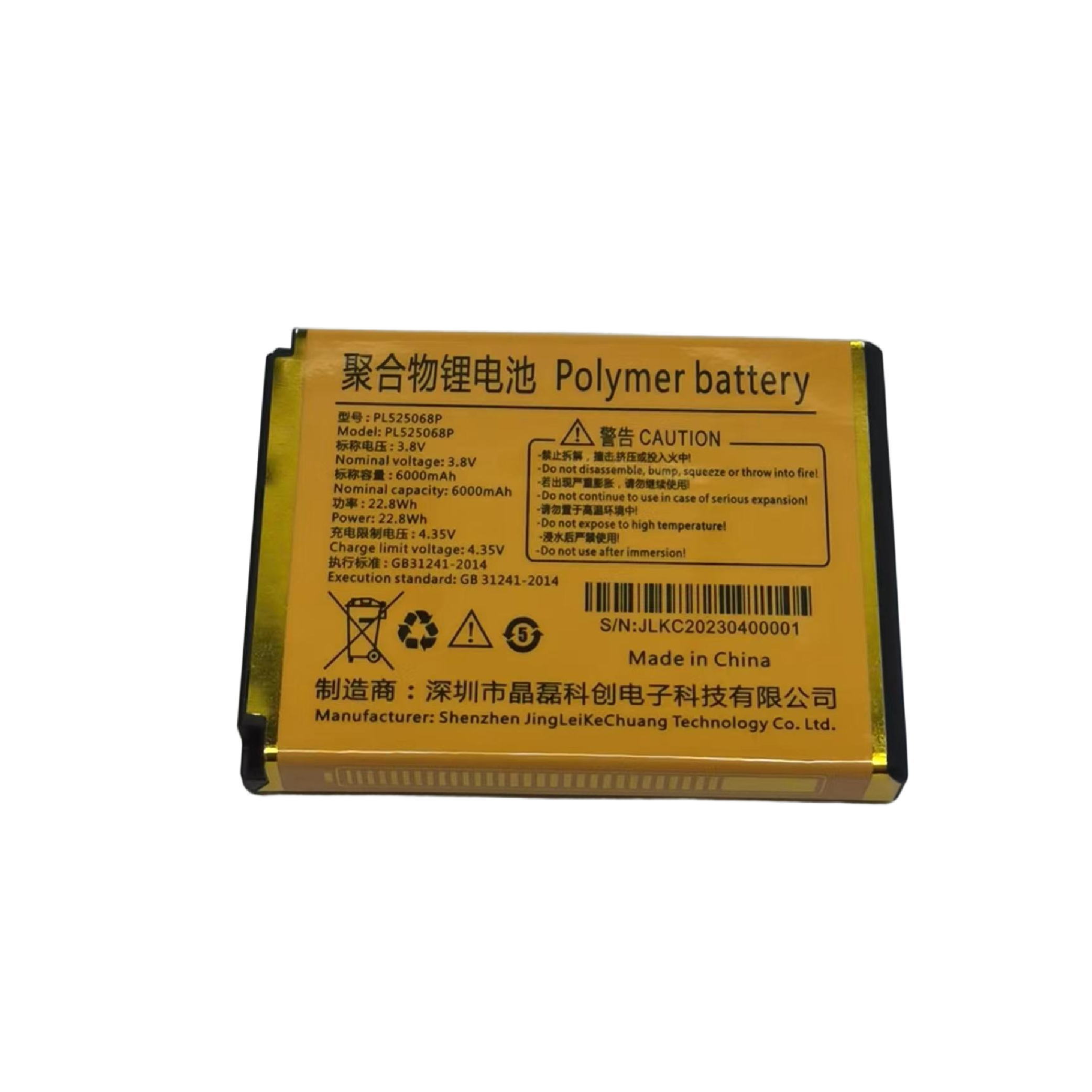

Replacement battery
