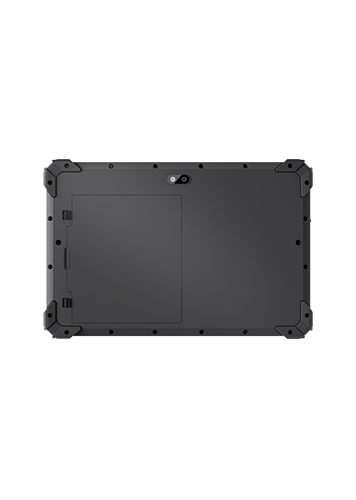

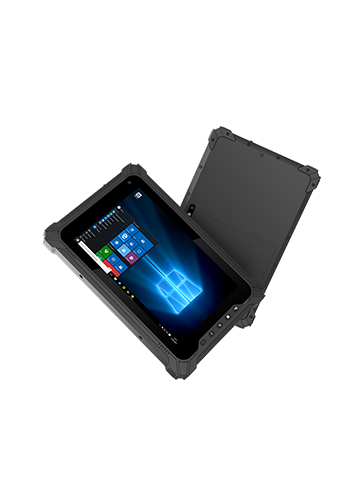

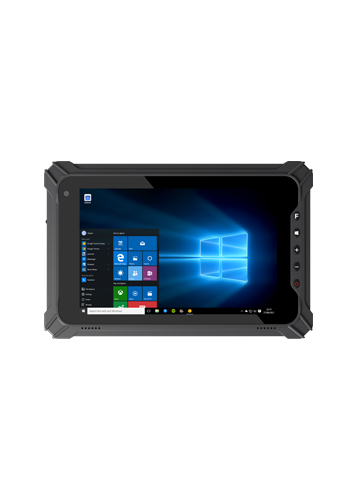

E87TWP

8 inch Industrial Rugged Tablet

Full-Features to Deliver the Best Service

E87TWP support for Windows 10/11 system,Intel Jasper Lake processor Celeron N5100 CPU, it built-in 10000mAh battery, 10 hours of machine endurance. It up to IP65 Waterproof and Dustproof Level, MIL-STD-810G certified. At the same time, support GPS, Glonass, more accurate positioning and 1D/2D, NFC and other functional modules for free selection. Support aviation plug to meet the requirements of industrial electricity. Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

Features
Specification
Accessories
Download

SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	236.7155.720 mm
Weight	910g
Display / Touch Panel	8.0”HD(8001280),700nits sunlight readable display, Optional 8.0”FHD(12001920),550nits10-point capacitive touchscreen
Battery	AC adapter: 100-240V, 50Hz-60Hz, 33WBattery Li-Ion, 7.6V, 5000mAh, 7 hoursRTC 3V/1mAh on board
Power Adapter	PD Fast Charge Adapter +Type-C Data Cable（1m）33W PD：5V~20V/0~1.5AOptional:(EU, US, UK, AU) Choose one of four
Speaker	Built-in 8Ω/1W *2 dual speakers
I/O Interfaces	Micro SD card & Nano SIMUSB3.0（typeA）x1USB3.1（typeC）x13.5mm AudioJack x1HDMI 2.0a mini x112pin PogoPin x1
Buttons	Power 1Volume Adjustment Key (+) 1Volume Adjustment Key (-) 1F Customizable 1 (Barcode Scanning)Home Key*1
Camera	Front 5MPRear 8MP
PERFORMANCE CHARACTERSTICS
CPU	Intel JASPER LAKE N5100 processor
Operating System	Windows 11 Pro(Optional:Home/IOT)
Storage	RAM 8GB LPDDR4 ROM 128GB Emmc
USER ENVIRONMENT
Operating Temp.	-20℃ to 60℃
Storage Temp.	-30℃ to 70℃
Humidity	95% Non-Condensing
Drop Specifications	1.22m drop resistance
IP Protective Level	IP65 certified, MIL-STD-810G certified
DATA COMMUNICATION
WWAN	Integrated 4G LTE multi-carrier mobile broadbandLTE-FDD:B1/3/5/7/8/20/28LTE-TDD: B38/40/41WCDMA :B1/5/8GSM:/Optional 4G LTELTE-FDD:B2/4/5/12/13/17/18/25/26LTE-TDD: B41WCDMA:B2/4/5CDMA&EVDO: BCO/BC1GSM: 850/1900
WIFI	Intel® Wi-Fi 5 9461(802.11 ac)
Bluetooth	Bluetooth® V5.0
GPS	Support, GPS, Glonass
DATA CAPTUER
Barcode Scanning (optional)	Honeywell N4680Optical Resolution: 5milScanning Speed: 50 scans/sSupported Barcode Types: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
RFID HF/ NFC (optional)	NXP300/NFC 13.56MHz Supports 14443A/14443B/15693/18092/mifare protocols of ISO/IEC
ACCESSORIES
Standard		1xHand Straps，1xStandard Adaptor
Optional		TP protective film，Docking Charging，Battery Docking，Vehicle bracket holder，Hand writing penCar Charger，Spare Replace Battery

Standard_Accessories

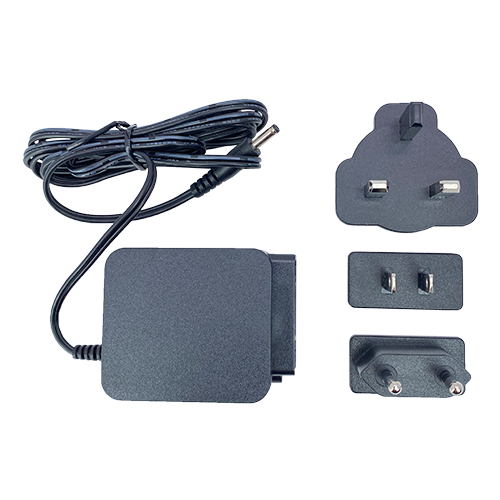

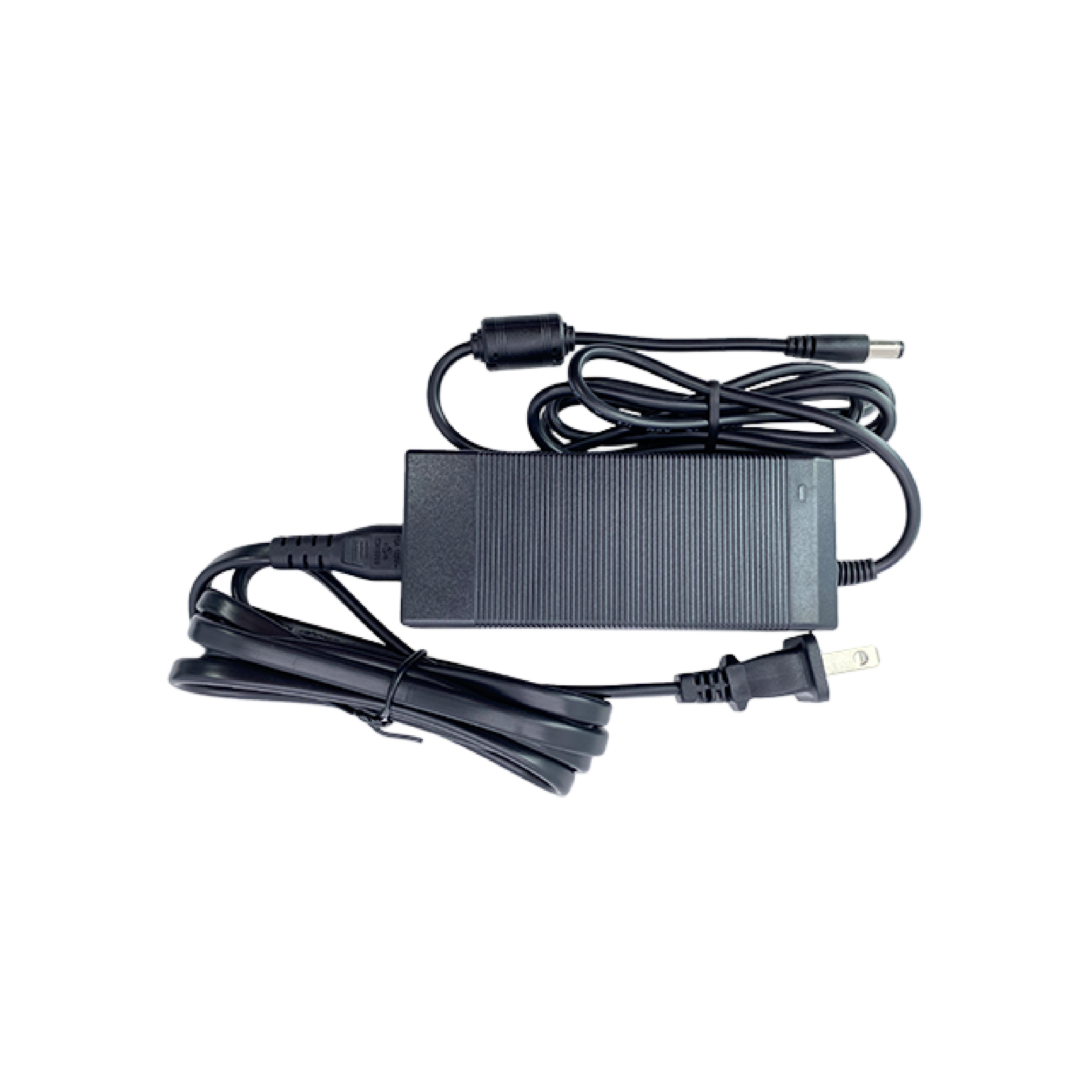

Standard Adaptor

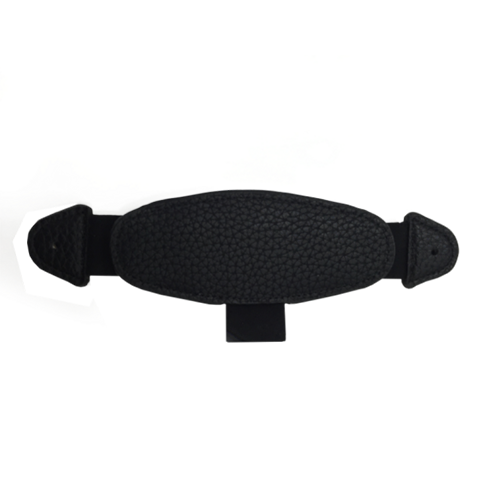

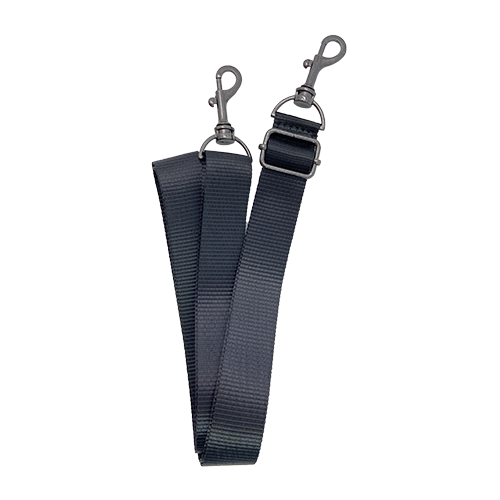

Hand-strap4

Optional_Accessories

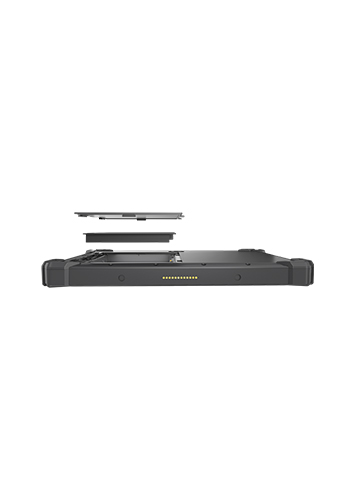

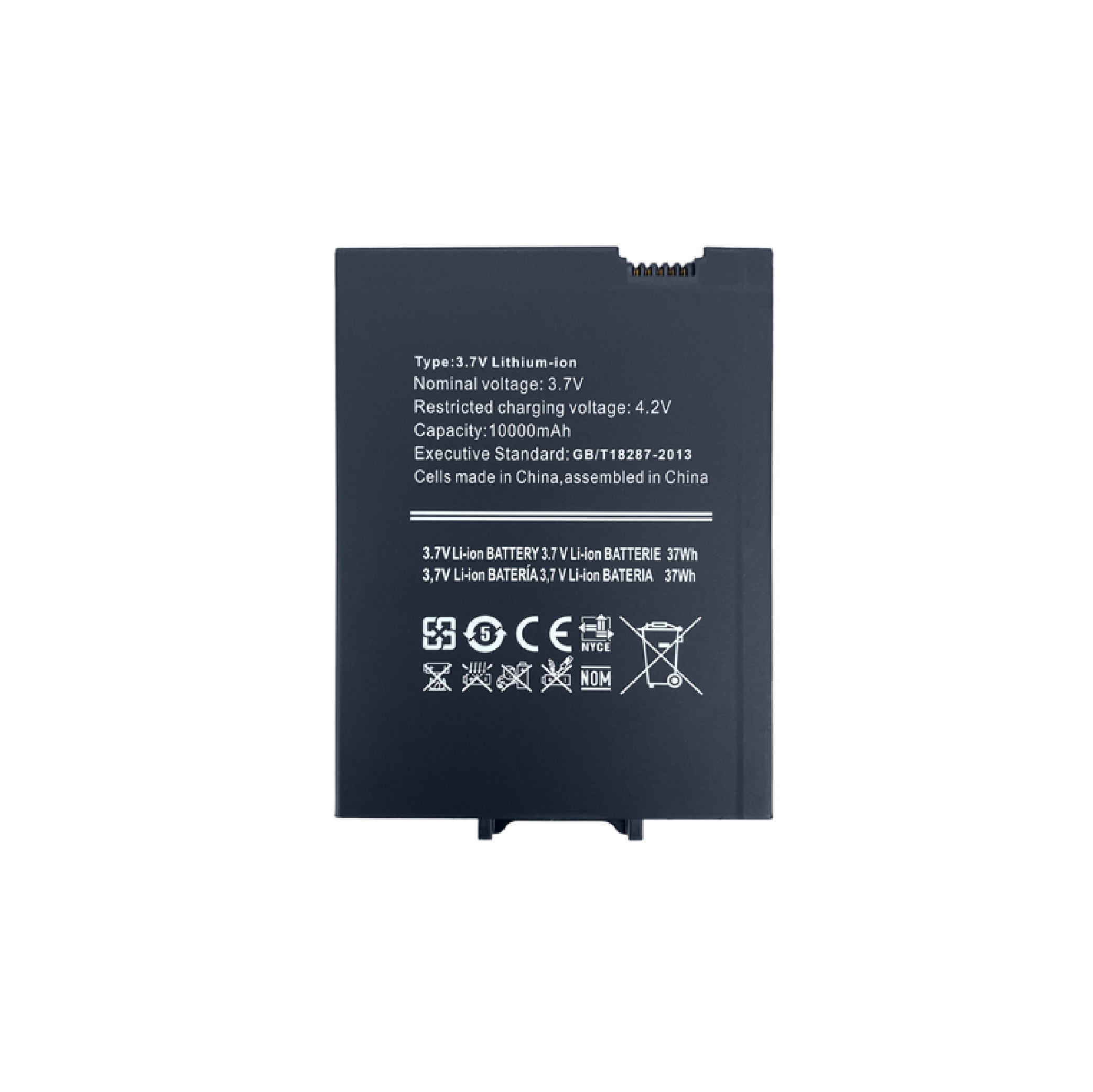

Spare Replace Battery

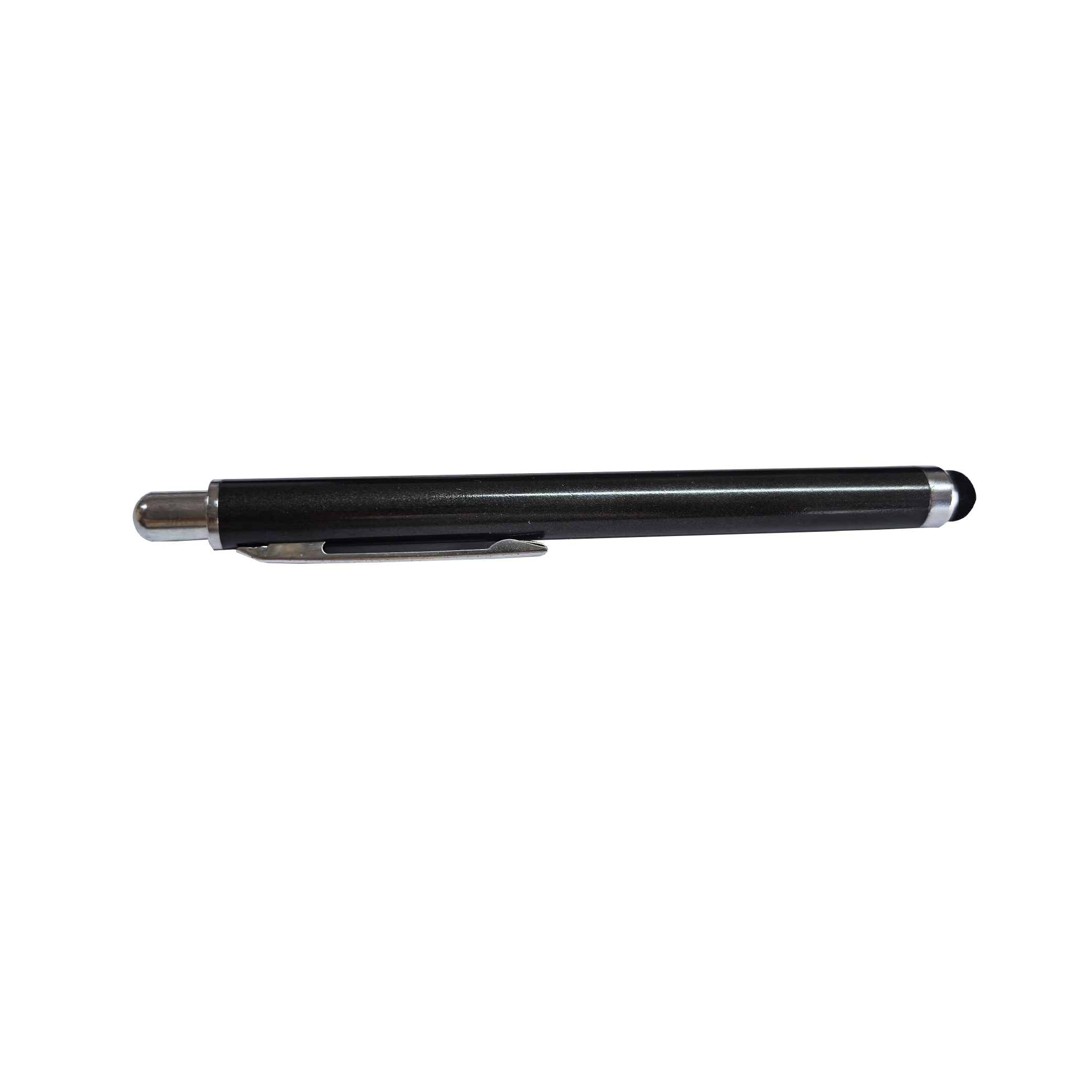

Hand writing pen

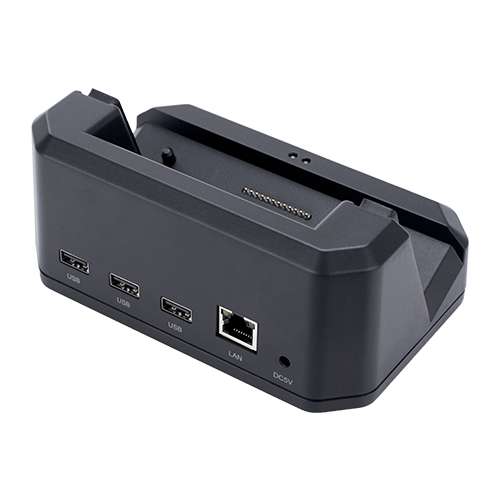

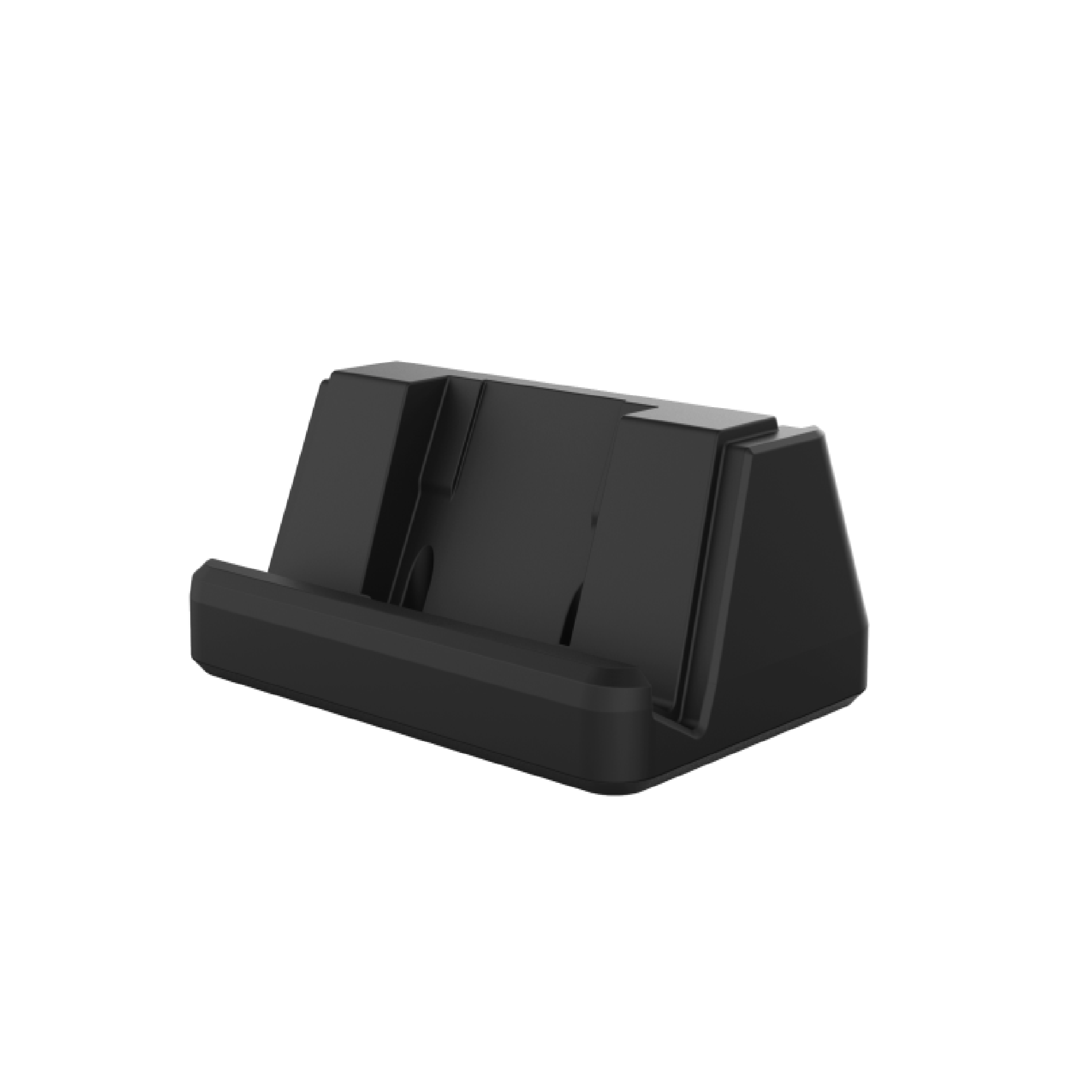

Docking Charging

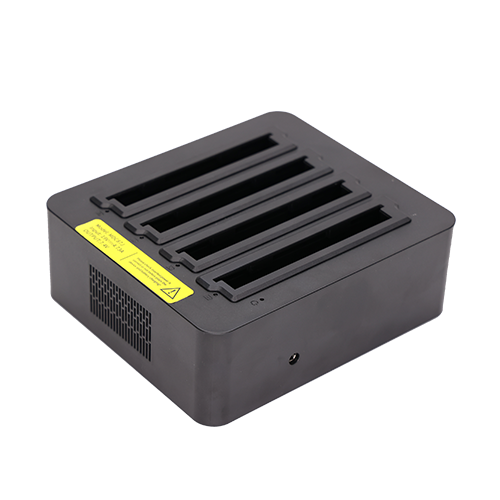

Docking Charger

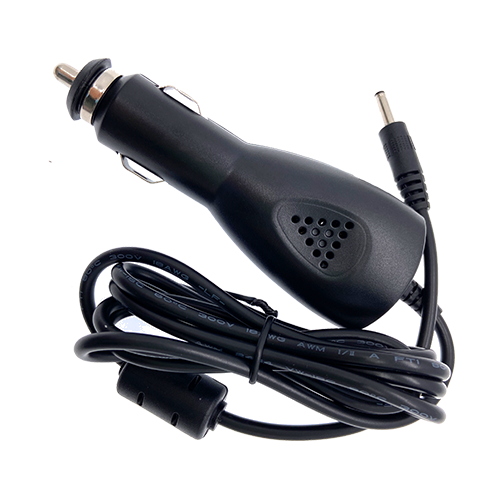

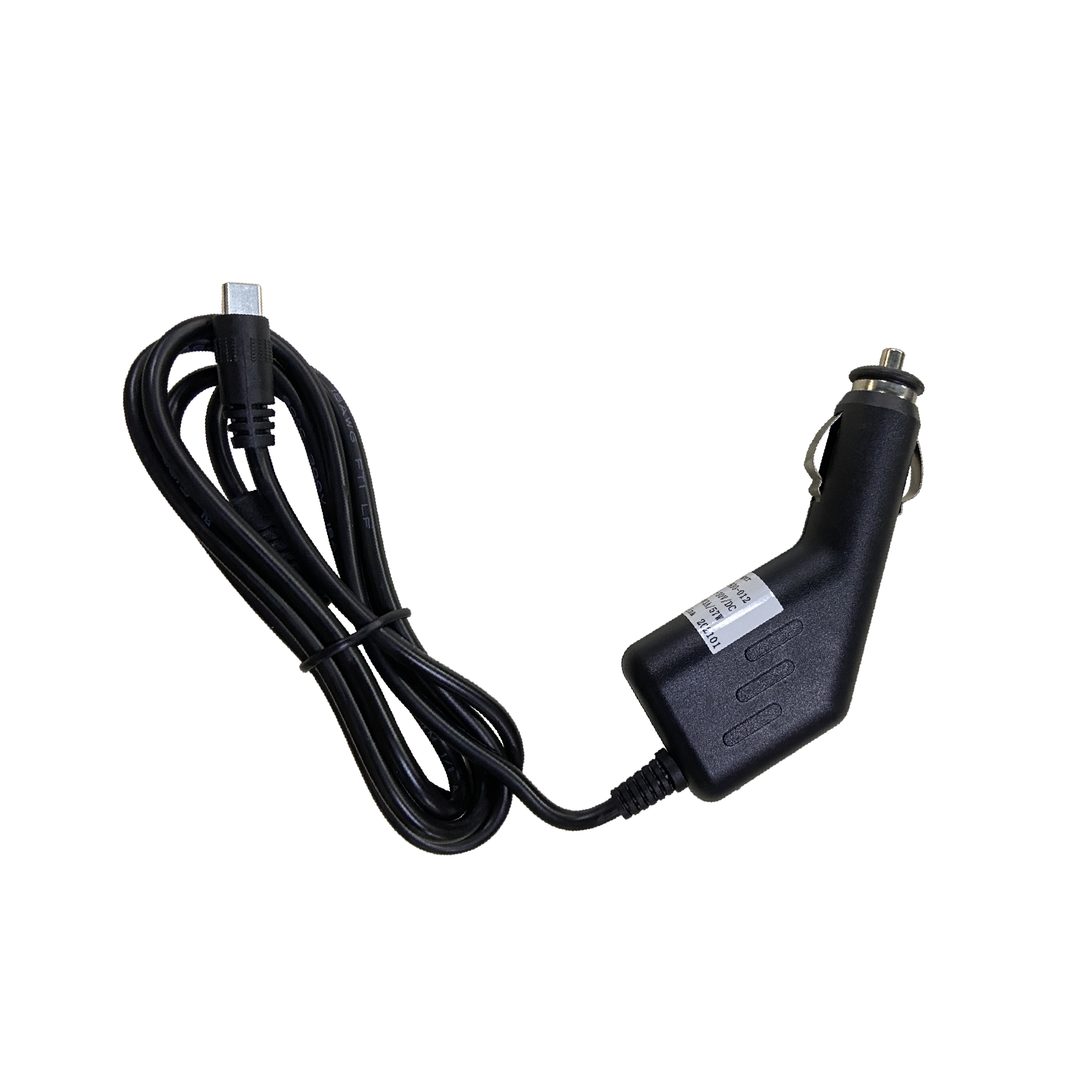

Car charger

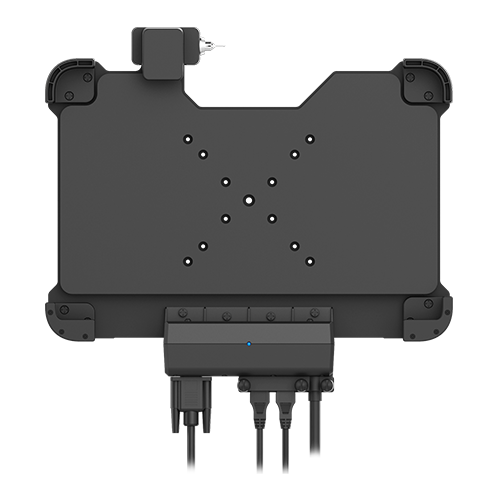

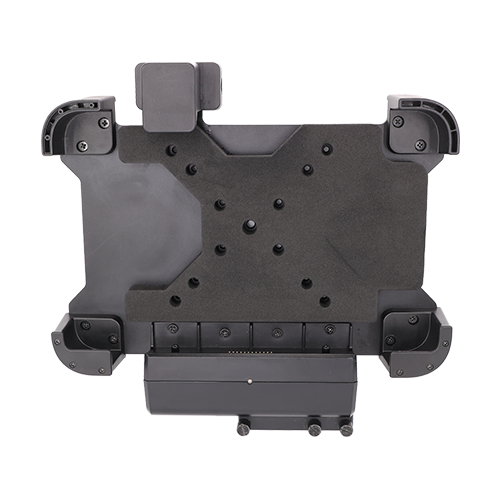

Vehicle Mount

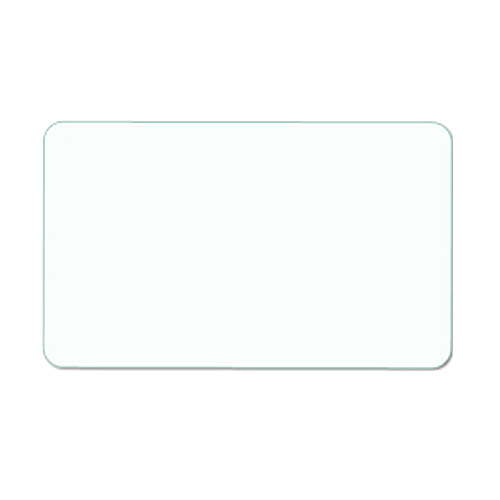

Screen protector
