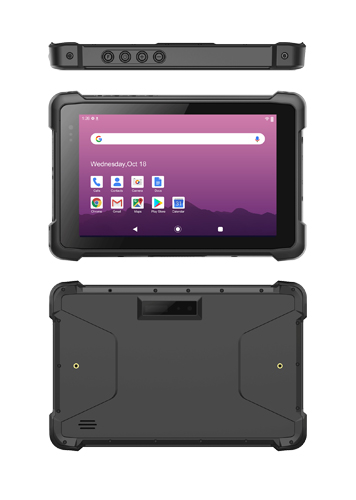

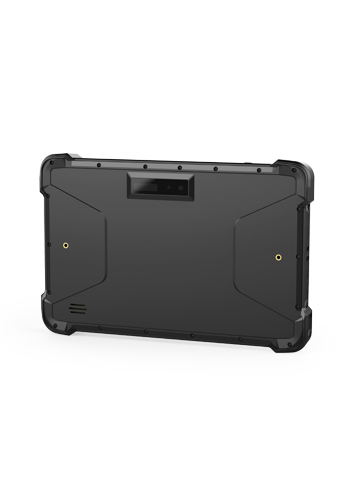

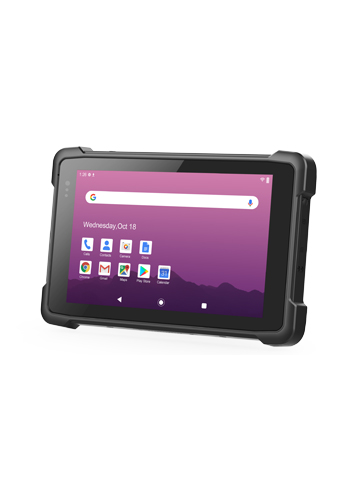

E81TAP

8 inch Android IP67 Industrial Rugged Tablet

Full-Features to Deliver the Best Service

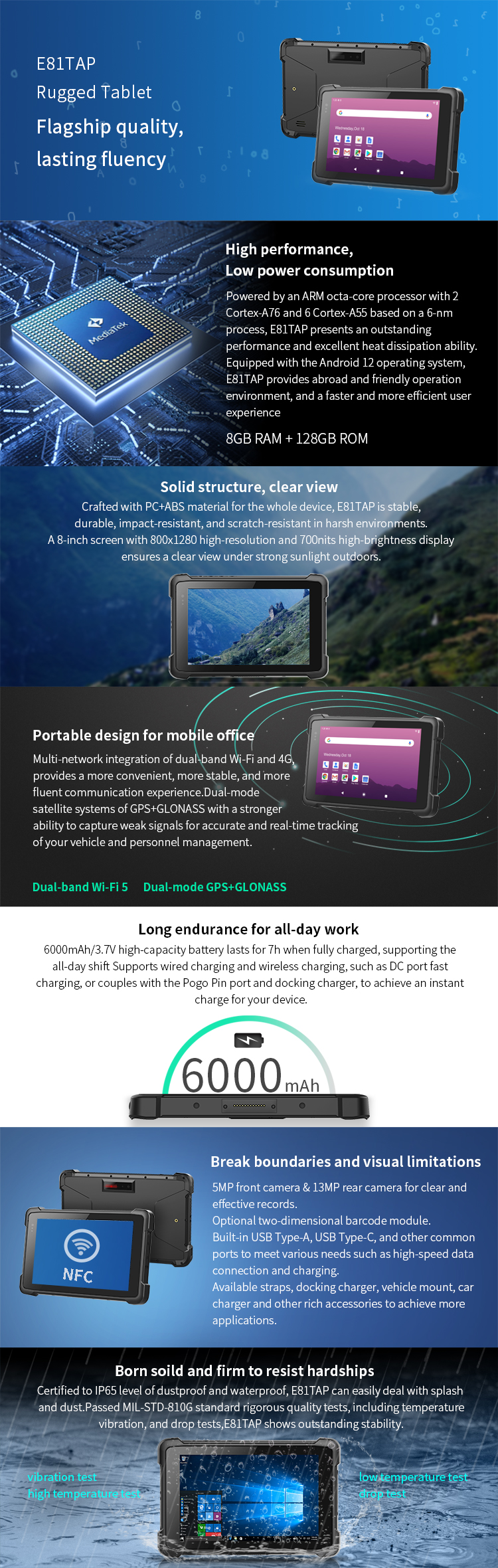

Hot sale Low costs Android High-performance Fully Rugged Tablet E81TAP, Rugged lP67 protective grade for waterproof & dustproof, ARM (Octa-Core), 2.2 GHz with Android14 OS and support 1D/2D barcode scanner/RFID NFC. A comfortable size for work, hold it comfortably in one hand, easy to control. Abundant accessorize to be more convenient.Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

Features
Specification
Accessories
Download


SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	227.7150.824.7 mm
Weight	680g
Display / Touch Panel	8.0" FHD(800*1280), 700nits sunlight readable display10-point capacitive touchscreen
Battery	Built-in Li-polyment Battery6000mAh/3.8V7 hours ( 50% volume sounds, 50% brightness, 1080P HD video display by default )

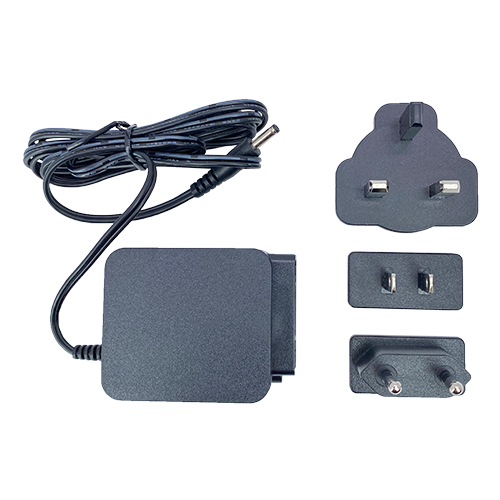

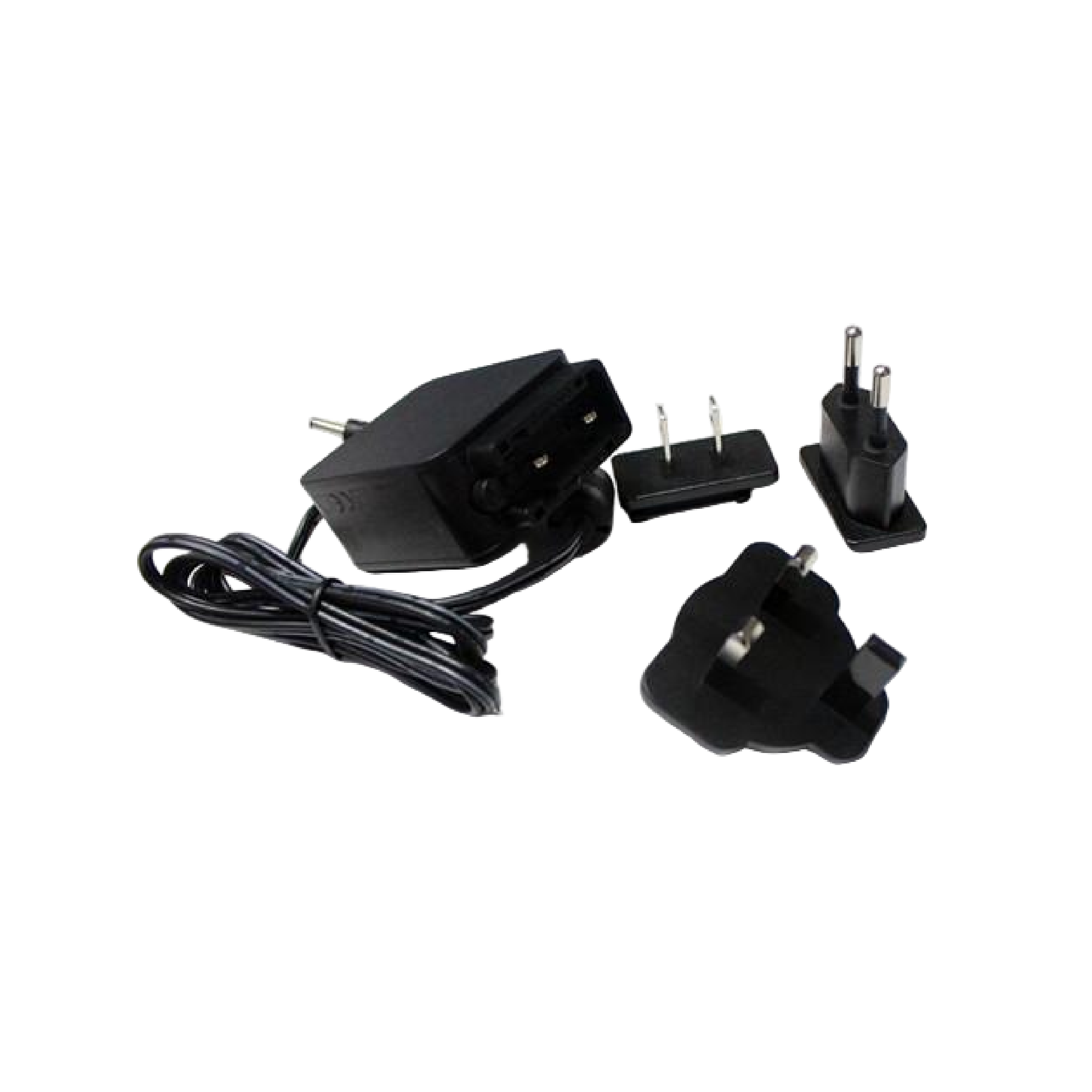

Power Adapter	AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3AOptional:(EU, US, UK, AU) Choose one of four
Speaker	8Ω/1W Waterproof BOX Speaker *1

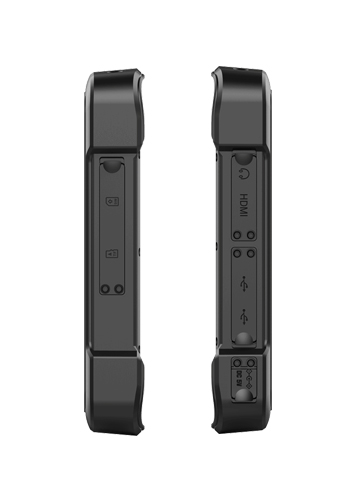

I/O Interfaces	USB 2.0 Type-A x 1, USB Type-C x 1,SIM Card x 1,TF Card x 1,12PIN Pogo Pin x 1,Φ3.5mm standard earphone jack x 1,Φ3.5mm DC jack x 1
Buttons	Power 1Volume Adjustment Key (+) 1Volume Adjustment Key (-) 1F Customizable 1 (Barcode Scanning)
Camera	Front 5MPRear 13MP
PERFORMANCE CHARACTERSTICS
CPU	MT6789 2*A76 2.2GHz
Operating System	Android 14/GMS
Storage	RAM 8GB LPDDR4 ROM 128GB
USER ENVIRONMENT
Operating Temp.	-20℃ to 60℃
Storage Temp.	-30℃ to 70℃
Humidity	95%（Non-Condensing）
Drop Specifications	1.22m drop resistance
IP Protective Level	IP65 certified, MIL-STD-810G certified
DEVELOPMENT ENVIRONMENT
SDK	Dingdata Software Development Kit
Language	Java
Environment	Android Studio or Eclipse
DATA COMMUNICATION
WWAN	Integrated 4G LTE multi-carrier mobile broadband GSM：2+3+5+8 WCDMA：1+2+5+8 TDD：38+39+40+41N(2535mhz~2655mhz) FDD：1+2+3+4+5+7+8+17+20+28a+28b
WIFI	Intel® Wi-Fi 5（802.11 ac）
Bluetooth	Bluetooth® V5.2
GPS	Integrated GPS, Glonass and Beidou module
DATA CAPTUER
Barcode Scanning (optional)	Zebra SE4710Optical resolution:5milScanning speed:50 times/secSupport code system:PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
RFID HF（NFC）	Support ISO/IEC 14443A protocol, reading distance: 3-5cm
ACCESSORIES

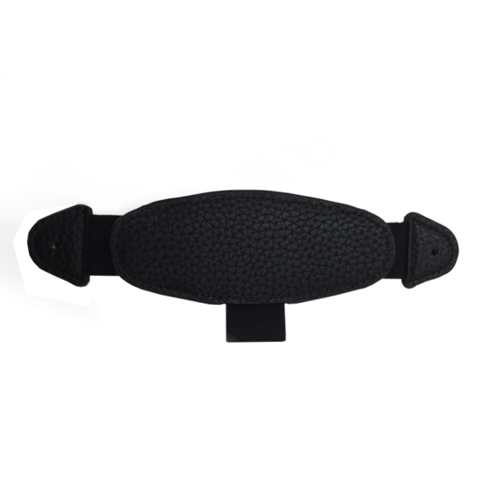

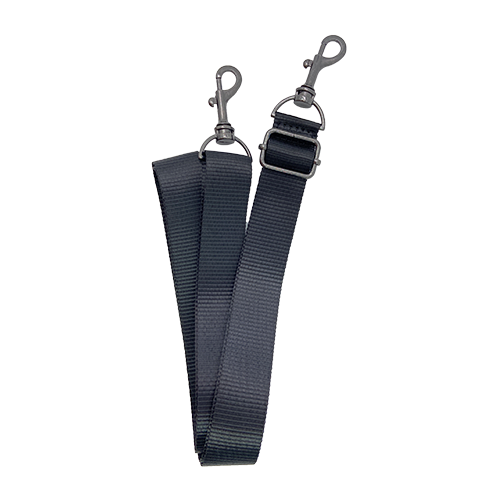

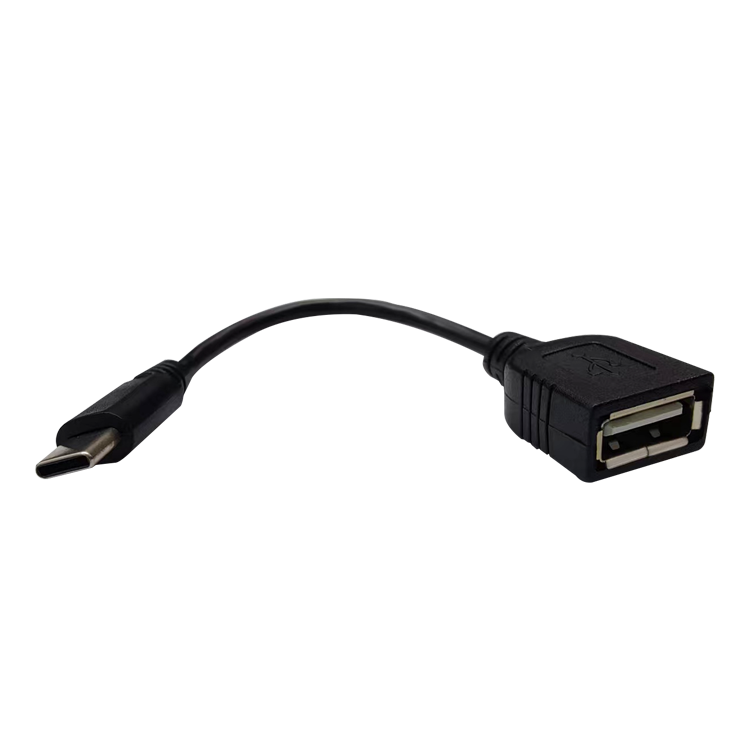

Standard		1xHand-strap，1xOTG Cable，1xStandard Adaptor

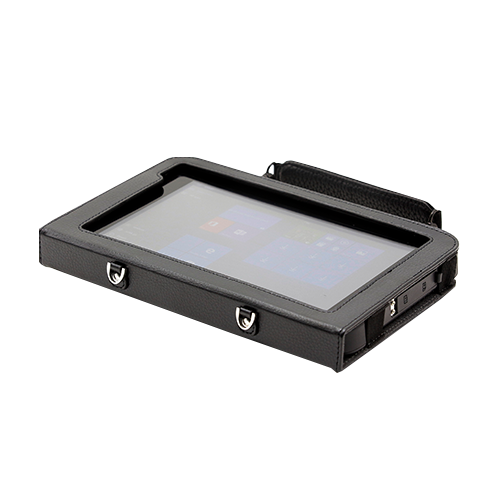

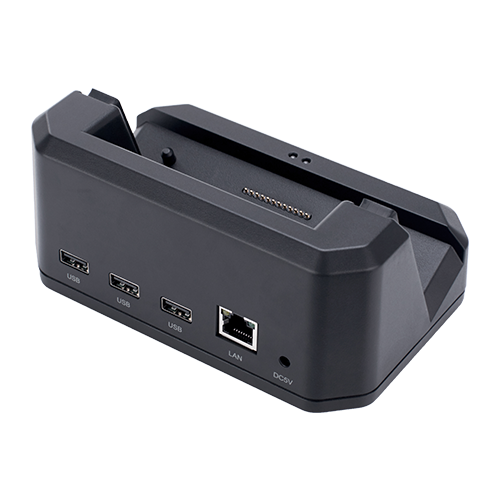

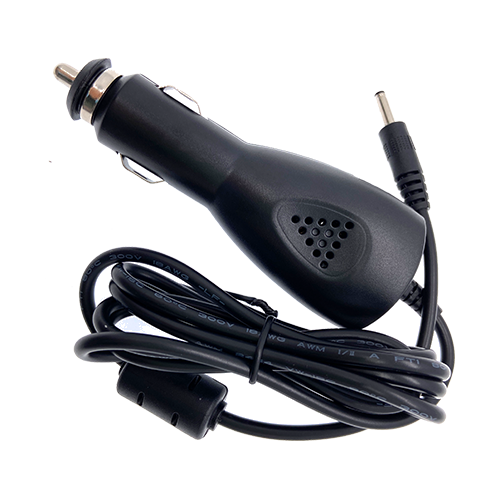

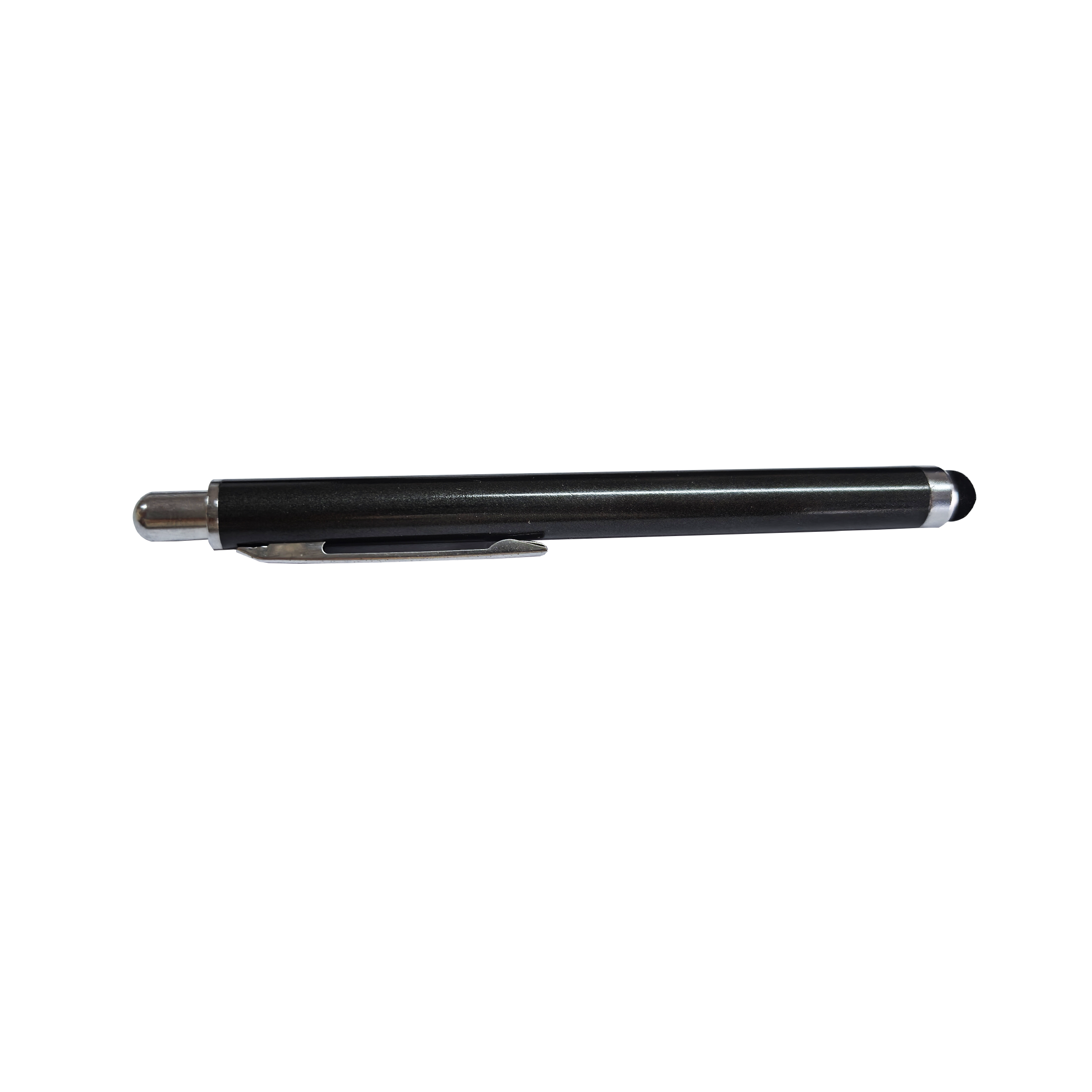

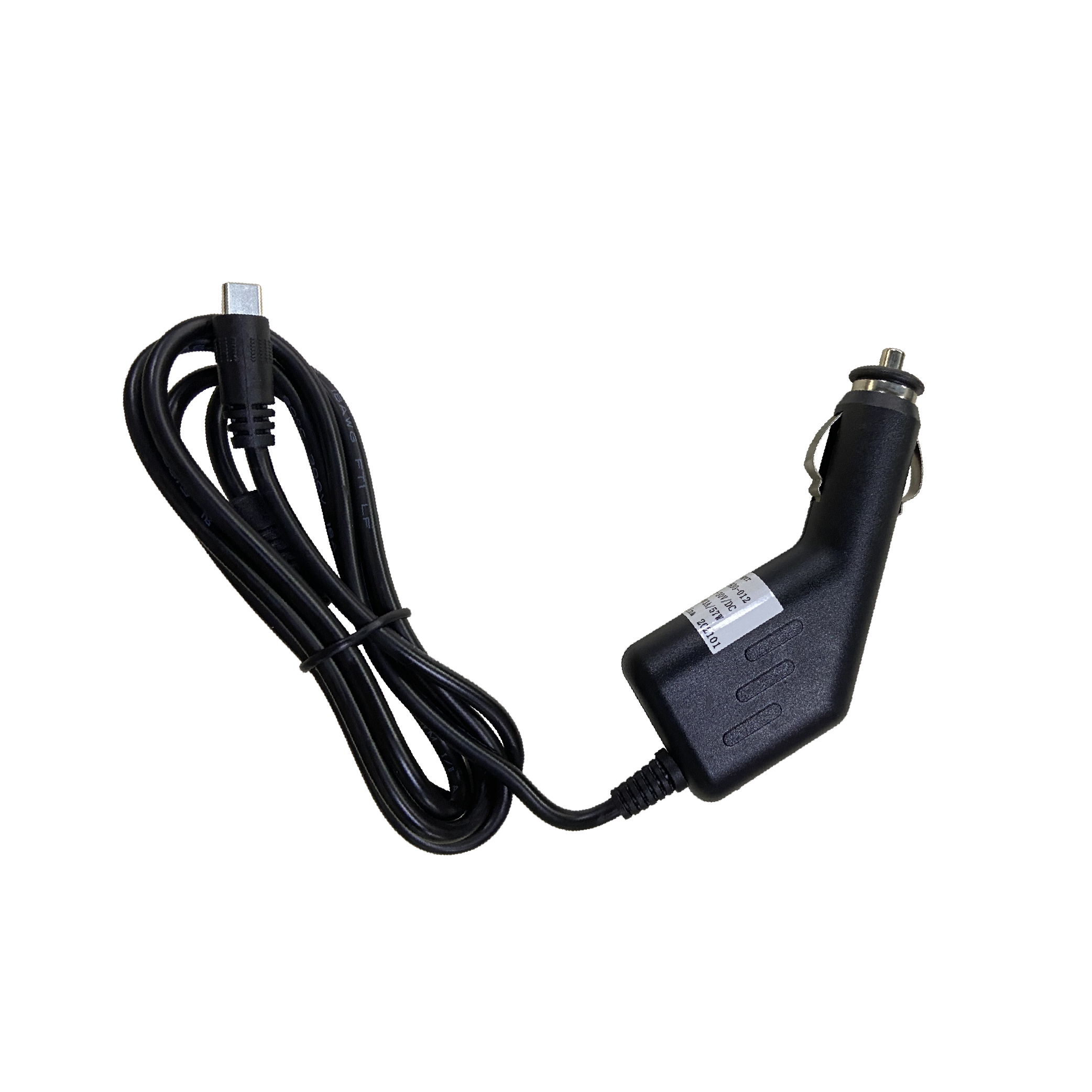

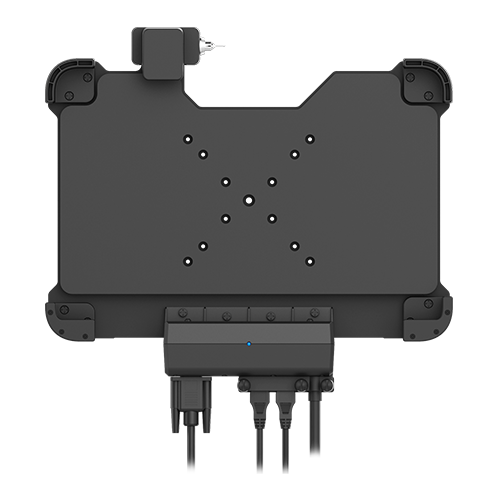

Optional		Car charger; Docking Charger; Car charger; Hand writing pen; Vehicle Mount
