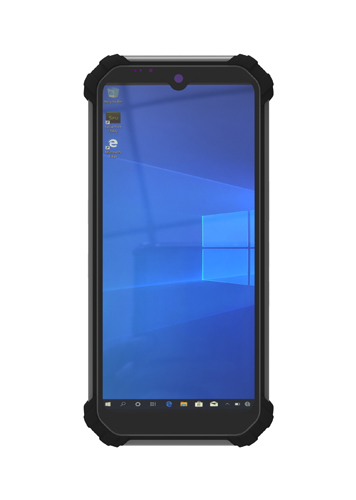

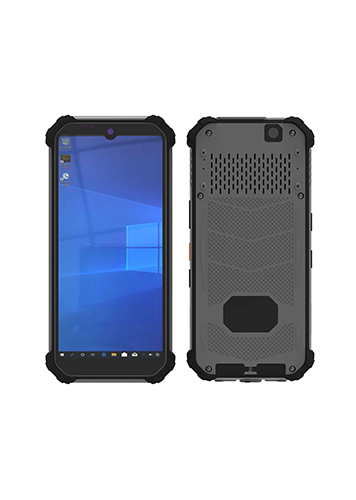

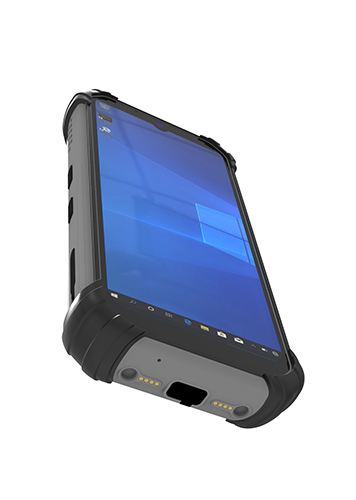

W65N

Rugged Windows Handheld Computer

Full-Features to Deliver the Best Service

The W65N built-in Intel N1000 3.4GHz high frequency CPU, easy to processing every task instruction. 6.5 inch IPS Display Support Windows 11 Pro/IOT OS,high compatibility, more practical. IP67 protective grade,as the Industrial grade rugged products quality,to meet the US military shock-proof standard MIL-STD-810G,which are competent under any difficult and bad environment. W65-N with 5000mah/7.6V large capacity battery，long endurance.

Features
Specification
Accessories
Download


SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	1808522mm
Weight	460±20g
Display / Touch Panel	6.5 inch; 720*1600; 380nits10 Point Touch
Battery	5000mAh; 7.6VCharging time: about 3HUsage time: 4H30min(50% volume, 60% brightness, playing local 1080P video)

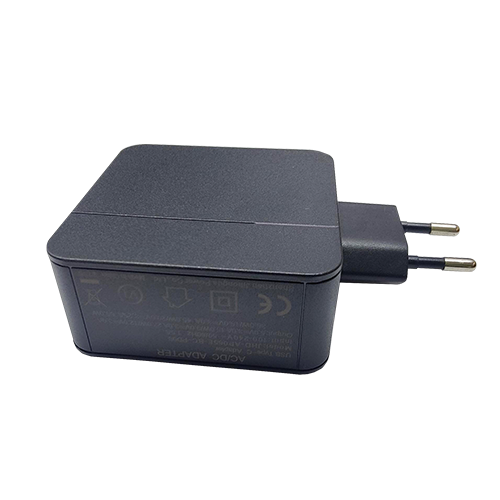

Power Adapter	Type-C*1; Full-featured; Quick charge (20W), DC Charger(12V 1.67A)Optional:(EU, US, UK, AU) Choose one of four
Speaker	8Ω 1.0 Watt
I/O Interfaces	1. Type-C1; Full-featured; Quick charge (20W)2. SIM Card Slot13. TF Card Slot14. USB 3.02
Buttons	V+ -, Power, Scan,Customized Button *2
Camera	Front: 5MP; Rear: 8MP
Multi-Media(Hardware Decoding)	1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
PERFORMANCE CHARACTERSTICS
CPU	Intel N100 (Quad Core, Quad Threads; 1.8GHz, Turbo can reach 3.4GHz)
Operating System	Windows 11 Pro, (Optional Home / Iot )
Storage	8GB+256GB, Optional 8GB+512GB, 16GB+256GB , 16GB+512GB
USER ENVIRONMENT
Operating Temp.	-20℃ to 55℃
Storage Temp.	-25℃ to 80℃
Humidity	Relative Humidity (93±3)% RH
Drop Specifications	Dropping Resistance 1.2 meters
IP Protective Level	Anti-dust & Waterproof IP65, MIL-STD-810G, ISO-9001, CE, FCC, 3C
DATA COMMUNICATION
WWAN	FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28TDD_LTE: B40WCDMA: B1/B2/B4/B5/B8GSM: B2/B3/B5/B8Module: SLM770A(EC25-AUX in North America)
WIFI	802.11a/b/g/n/ac/ax Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G
Bluetooth	5.2 Version
GPS	BDS, GPS, GLONASS
DATA CAPTUER
Barcode Scanning (optional)	NLS-N1，Zebra SE5500 ，Zebra SE4710 ，SE655 (1D)
RFID HF（NFC）	13.56 MHz, Distance: 1-3cm,ISO14443 TYPE A
ACCESSORIES

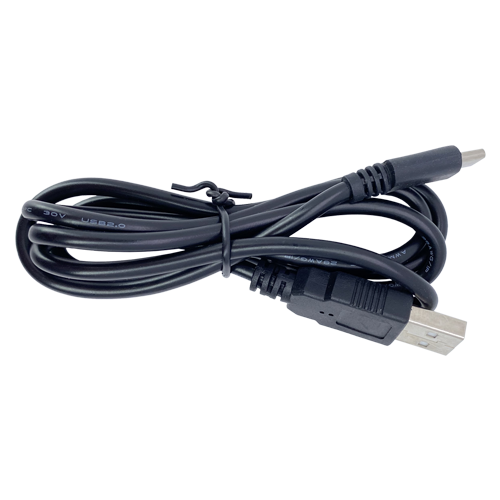

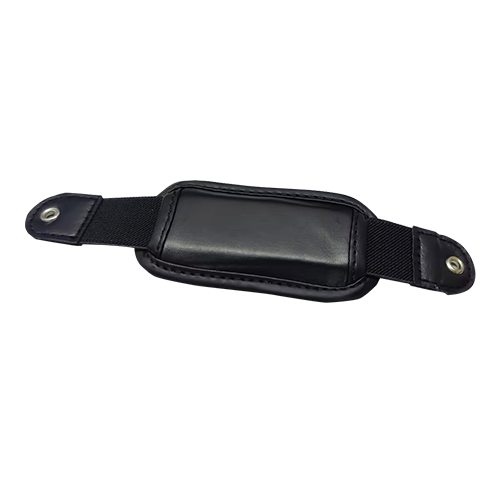

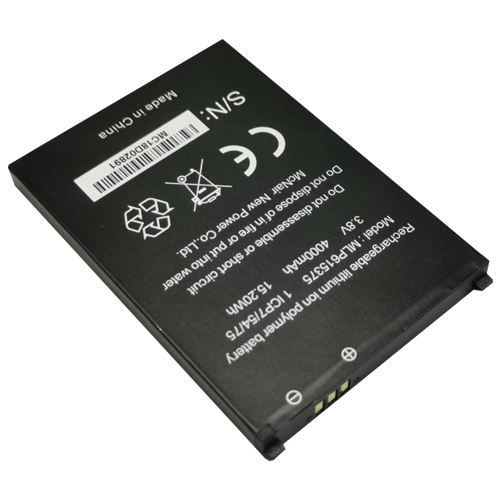

Standard		1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable;1xHand strap;

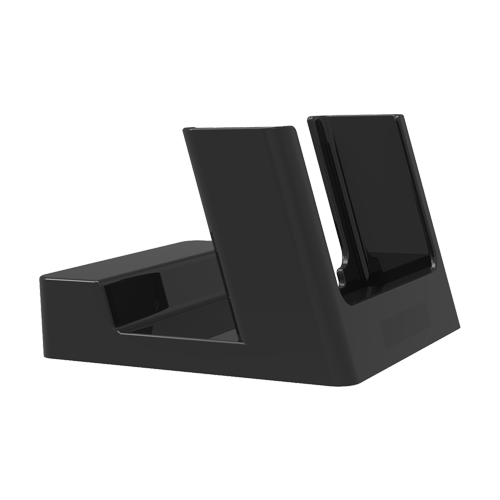

Optional		Docking Cradle;Spare battery;
