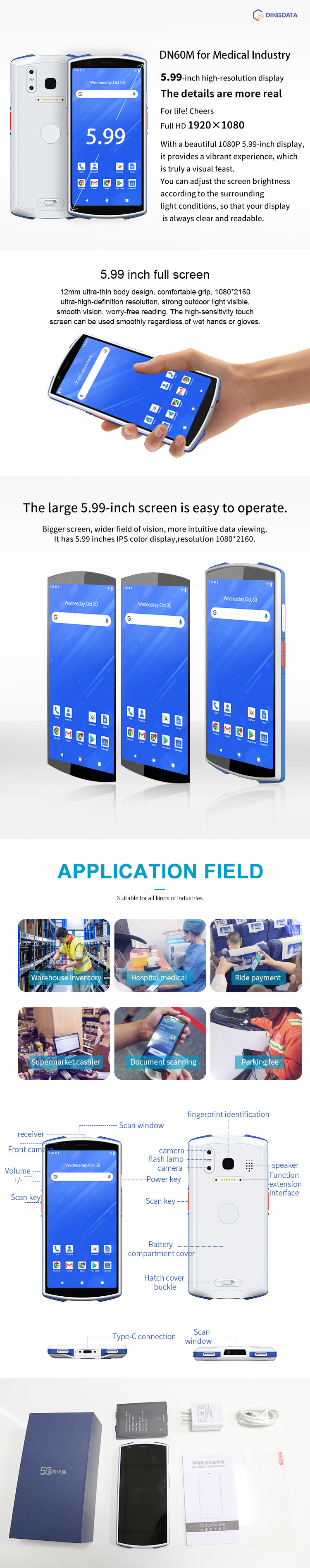

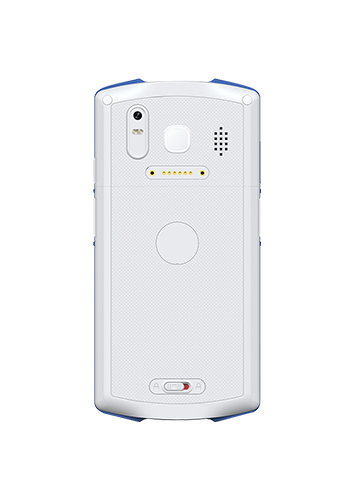

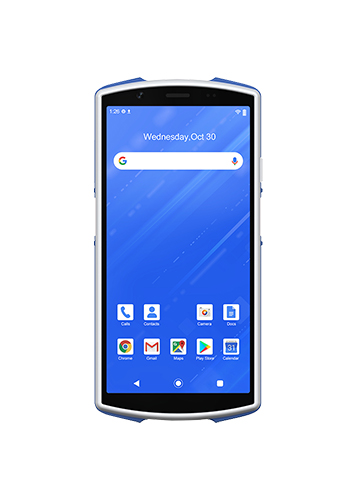

DN60M
Design for medical industry,the white angel of handheld terminal
Full-Features to Deliver the Best Service
DN60M is a elligent terminal equipment for medical industry application, especially fungi-proofing materials has adopt for the body. Supporting a variety of communication methods,the data of medical are delived by a lot of ways at real time. According to medical demand,it will add the nameplate of user.1D/2D scanning engine with millisecond response speed can accurately identify various complex barcodes. With NFC module,it supports muti scene use,and the card reading distance is 3cm-5cm. It come with all of the features you'd expect.DN60M is equipped with a Octa-core 2.0Ghz Processor so that you can enjoy an uninterrupted preference. It features Android 10 OS. The incredible speed and smooth performance that make multi-tasking really easy.A super larger memory of ROM lets you download and save more data.
Model | DN60M |
Dimension | 164.5mm×79.4mm×12.3mm |
OS | Android 10 |
CPU | Octa-core 2.0GHz |
Weight | 265g(with battery) |
Display | 5.99”inch IPS highlight screen |
Memory | 4GB RAM+ 64GB ROM |
Battery Capacity | Rechargeable polymer battery (3.8V 4200MAh) |
Expansion slot | Micro SD(TF) card slot up to 128GB |
Resolution | 720x1280 |
Keypad | Power button, Volume +/- button,Scan button × 2Handle scan button ×1 |
Sensor | Support GPS, Galileo, Glonass, Beidou |
SIM | Dual SIM Card |
Fingerprint | Support fingerprint unlocking |
2D barcode (Optional) | Support Honeywell N6703/N6603 and domestic N1 |
IP rating | IP66 |
Drop Resistance | 6 sides can withstand the impact of 1.5 meters drop to the concrete floor |
Camera | Rear 16MP HD camera and 2MP auxiliary camera,Support auto focus,Flash, Anti-shake, Macro shooting,Front 5MP camera |
Interface Configuration | USB-Type C, support fast charging, OTG, USB typec headphones are supported, charging and bottom USB connector; support cradle extension |
3G/4G (Optional) | FDD:B1/B3/B4/B7/B8/B12/B20TDD:B38/B39/B40/B41 |
Operate Temperature | -20°C ~ 55 °C |
Store Temperature | -30°C ~ 70 °C |
NFC/RFID | Supporting agreement: 13.56MHz,ISO14443A/B, 15693 agreement |
Wifi | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
Bluetooth | Support Bluetooth 5.0+BLE,transmission distance 5-10 meters |

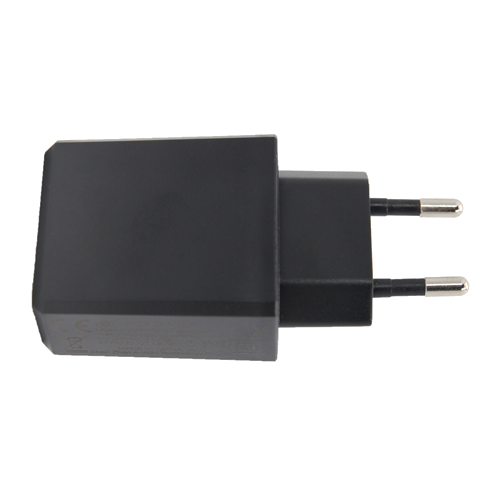

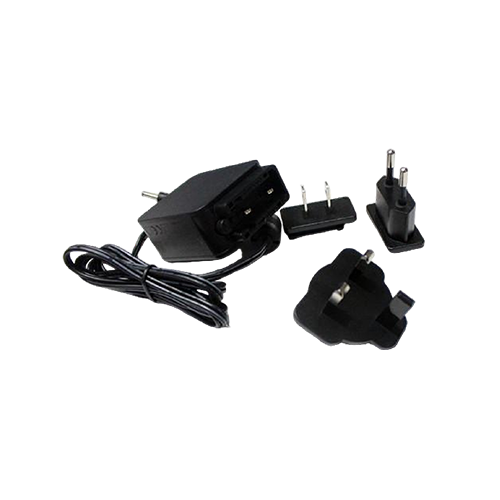

Adapter

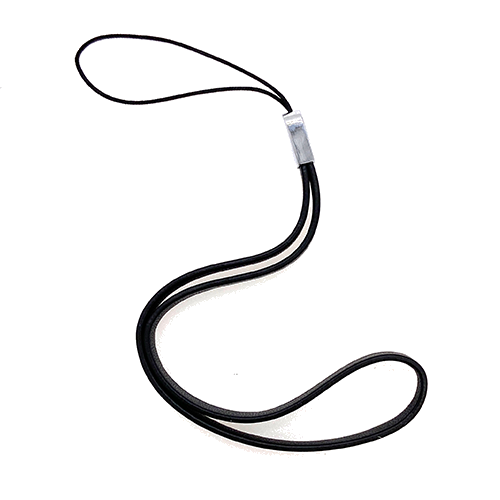

Hand-strap

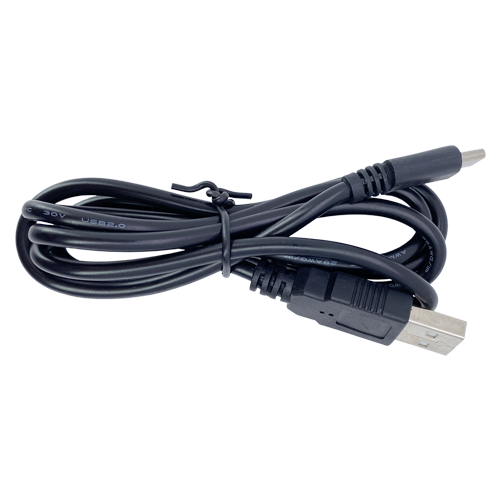

USB Cable

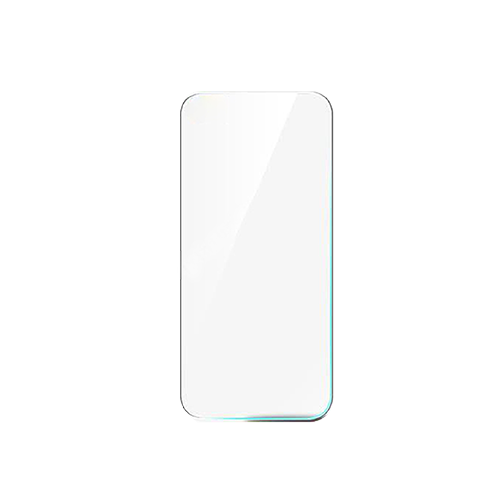

Protect film

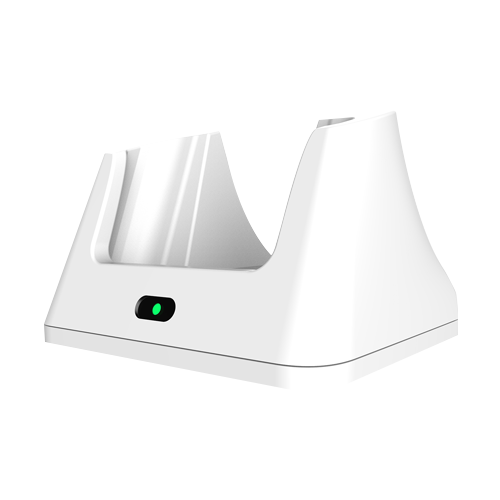

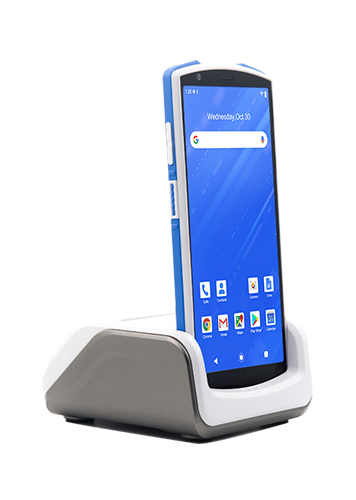

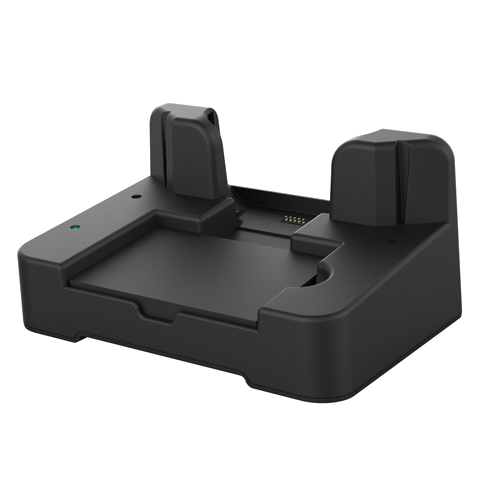

Docking Charger
Battery
