Home > Products > Industrial Rugged Tablet > T80E

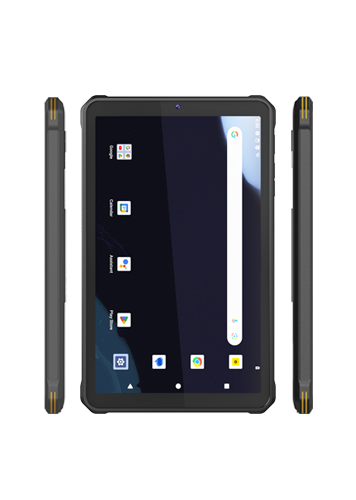

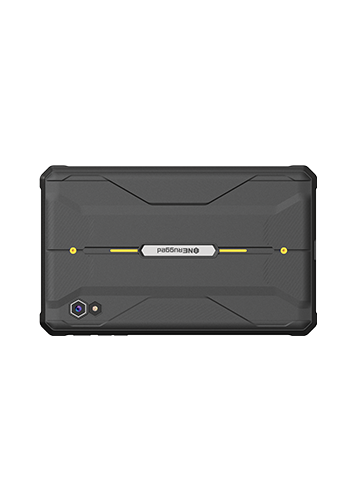

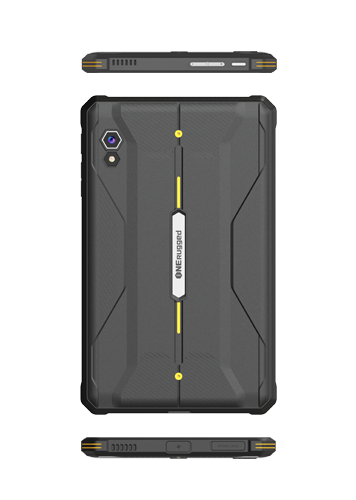

T80E

Hot sale & Classical Low cost Rugged Tablet

Full-Features to Deliver the Best Service

T80E rugged tablet with barcode scanner supports Android 14 with GMS, Rugged IP65 protective grade for waterproof & dustproof. Intel core with Android 14/Gorilla glass TP, easy to operate. Support 1D/2D, NFC, and other functional modules for free selection. Integrated 3G/4G all network communication, 1D/2D barcode scanner/USB/NFC /WiFi,/Bluetooth, and other communication modes.T80E built in removeable 8000mAh battery, 10 hours of machine endurance.

Features
Specification
Accessories
Download


SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	220.14135.514mm
Weight	569g
Display / Touch Panel	8.68 inch TFT, 800 x 1340, 400 nits10-point capacitive touchscreen, support Glove&Water
Battery	8000mAh/3.85V/ Built-in Polymer Lithium-ion Battery / Approximately 11h13min
Power Adapter	PD Fast Charge Adapter +Type-C Data Cable（1m）33W PD：5V~20V/0~1.5AOptional:(EU, US, UK, AU) Choose one of four
Speaker	Integrated 2W speaker x2
I/O Interfaces	USB 2.0×1、Type C×1、SIM Card x1,TF Cardx1 Max 512GB, 12pins Pogo Pin x1,φ3.5mm standard earphone jack ×1, φ3.5mm DCjack×1
Buttons	Power button, volume+- button.
Camera	Front 5.0MP With working indicatorRear 13.0MP，autofocus with flash
PERFORMANCE CHARACTERSTICS
CPU	MT8781 (6x 2.2Ghz Cortex-A76, 2x 2.0Ghz Cortex-A55)
Operating System	Android 14/GMS
Storage	8GB LPDDR4x on board128GB UFS2.2 Optional 256GB UFS2.2
USER ENVIRONMENT
Operating Temp.	-20℃ to 60℃
Storage Temp.	-30℃ to 70℃
Humidity	95%（Non-Condensing）
Drop Specifications	1.22m drop resistance
IP Protective Level	IP68 certified, MIL-STD-810H certified
DEVELOPMENT ENVIRONMENT
SDK	Dingdata Software Development Kit
Language	Java
Environment	Android Studio or Eclipse
DATA COMMUNICATION
WWAN	Integrated 4G LTE multi-carrier mobile broadbandLTE-FDD(B1/2/3/4/5/7/8/12/17/18/19/20//25/26/28A/28B/66)LTE-TDD(B34/38/39/40/41)WCDMA(B1/2/4/5/8)GSM(B2/3/5/8)
WIFI	Intel® Wi-Fi 5（802.11 ac）
Bluetooth	Bluetooth® V5.1
GPS	Integrated GPS,Beidou,Galileo,Glonass module
DATA CAPTUER
Support face unlocking
RFID HF/ NFC		NFC 13.56MHz Supports 14443A/14443B/15693 of ISO/IEC, Reading Distance: 0 to 4cm
ACCESSORIES

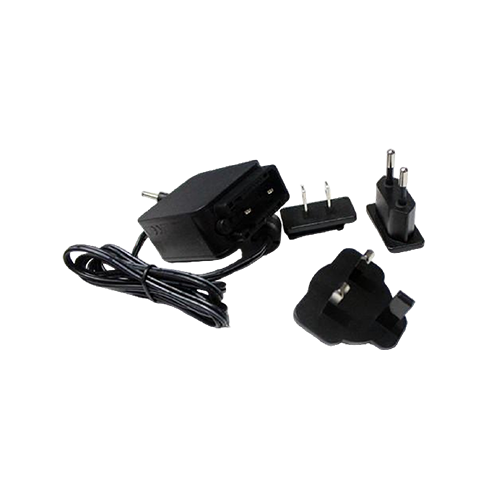

Standard		1xStandard Adaptor

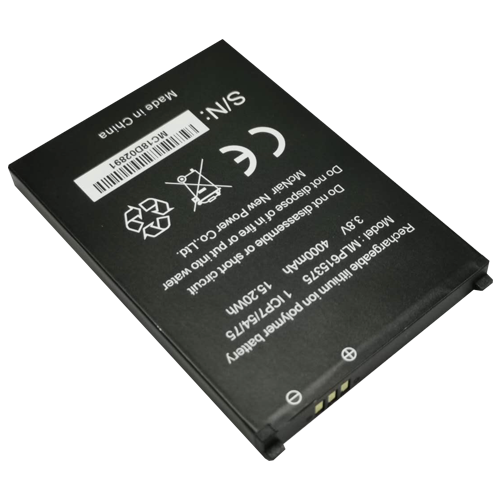

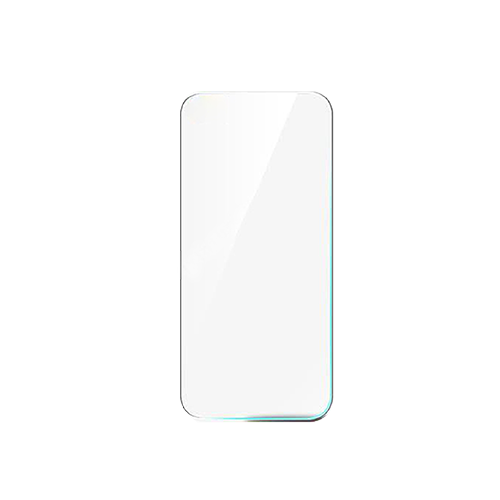

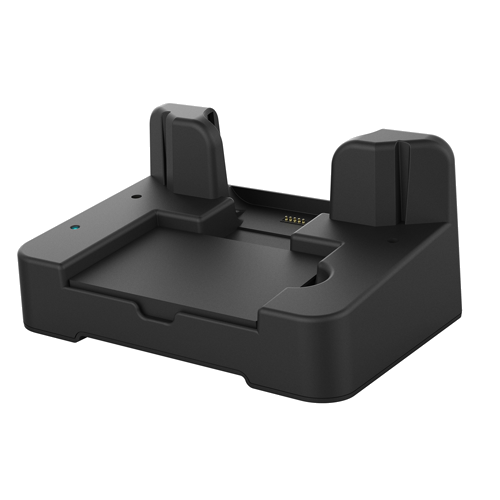

Optional		Docking Charger, Spare Battery，TP protective film
