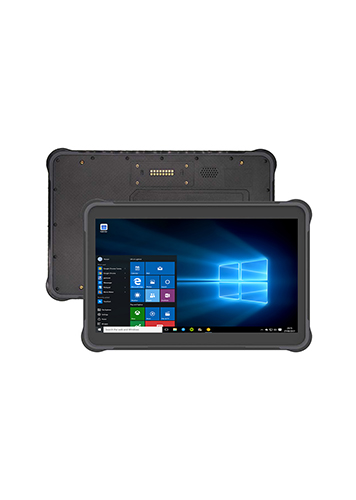

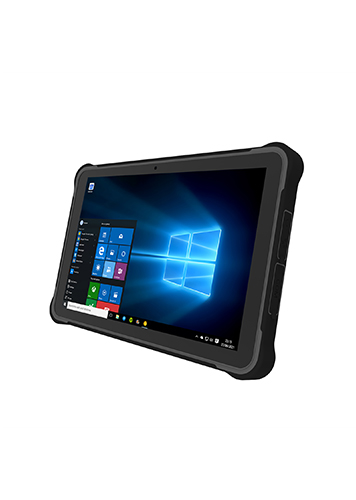

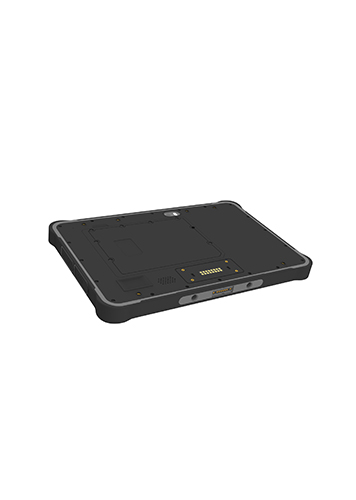

S10W

10.1 inch Intel N5100 Windows Rugged Tablet

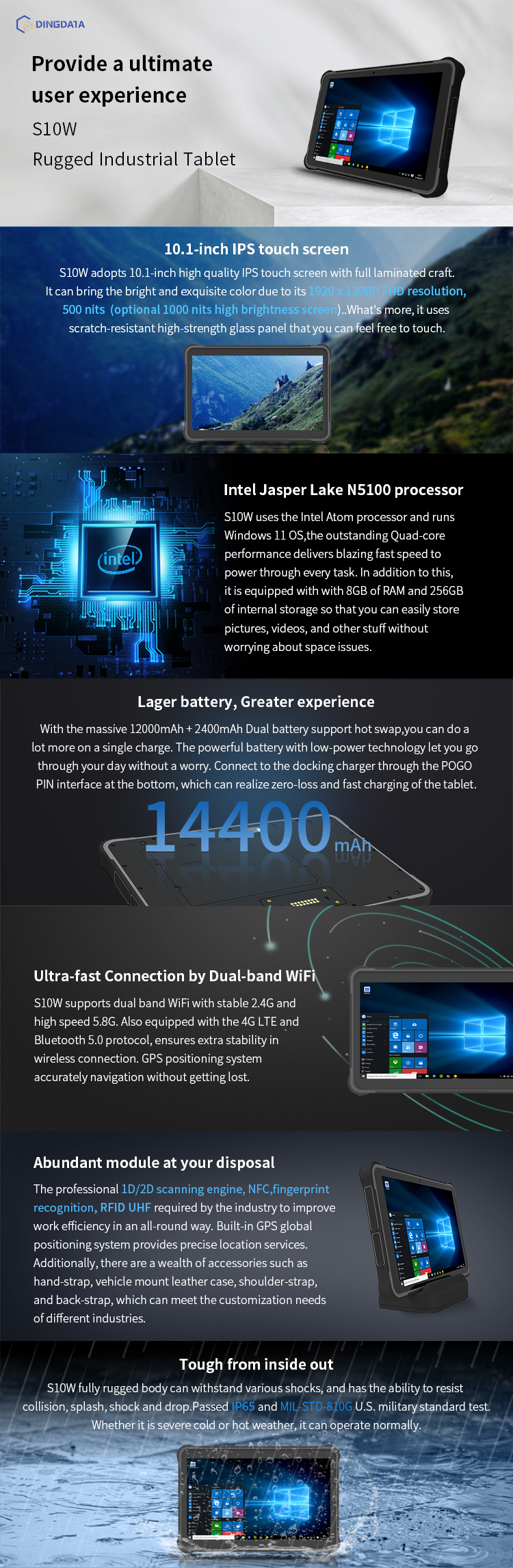

Full-Features to Deliver the Best Service

S10W support for Windows 10/11 system, it built-in 14400mAh battery, 12 hours of machine endurance. It up to IP67 high protection level, in accordance with MIL-STD-810G. At the same time, support GPS, Glonass, more accurate positioning and 1D/2D, NFC, RFID UHF,Fringerprint and other functional modules for free selection. Support aviation plug to meet the requirements of industrial electricity. Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

Features
Specification
Accessories
Download


SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	27317220mm
Weight	1150±50g
Display / Touch Panel	10.1 inch; 12001920; IPS, 430nits (TYP), 450nits (MAX), 10 Point Touch,Support stylusOptional: 1000nits display(12001920)
Battery	6000mAh / voltage 7.6Vdc(45.6Wh)Charging time: 3H40minUsage time: 8H30min(50% volume, 60% brightness, playing local 1080P video)

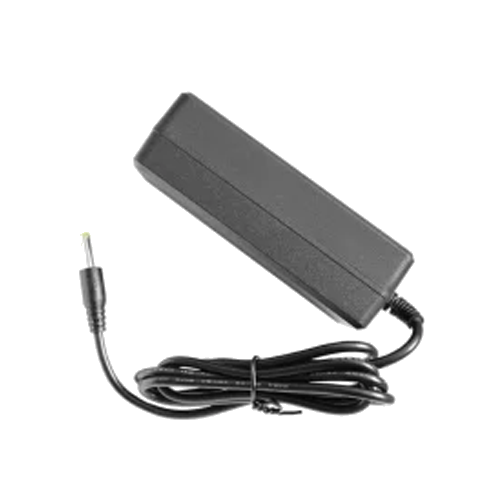

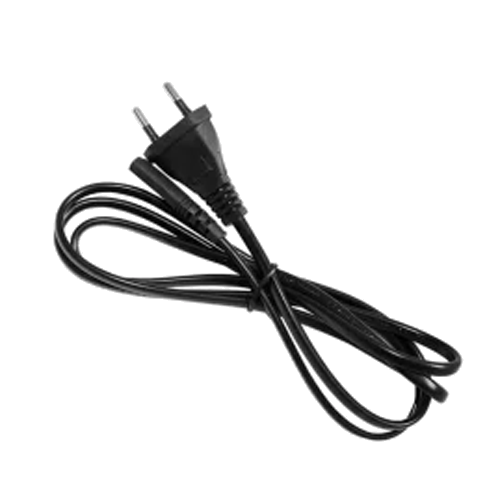

Power Adapter	DC Charger (12V 4A)Optional:(EU, US, UK, AU) Choose one of four
Speaker	8Ω 1.5 Watt
I/O Interfaces	1. HDMI12. SIM Card Slot13. Earphone14. DC1; 4.015mm5. USB 3.0 26. RJ4517. RS2321Bottom pogopin: USB 2.0; Charging; RS232Back pogopin: USB 2.0; RS232
Buttons	V+ -, Power, "F" for Barcode Scan Customized Button: P, H (Default No Functionality)
Camera	Front: 5MP; Rear: 13MP
Multi-Media(Hardware Decoding)	1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
PERFORMANCE CHARACTERSTICS
CPU	Intel Celeron N5100 (Quad Core, Quad Threads; 1.10GHz, Turbo can reach 2.80GHz)
Operating System	Windows 11 Pro(Optional:Home/IOT)
Storage	RAM：8GB，(Optional 4GB )ROM: 256GB, (Optional 128GB / 512GB )
USER ENVIRONMENT
Operating Temp.	-20℃ to 55℃
Storage Temp.	-25℃ to 80℃
Humidity	Relative Humidity (93±3)% RH
Drop Specifications	Dropping Resistance 1.2 meters
IP Protective Level	Anti-dust & Waterproof IP65, MIL-STD-810G, ISO-9001, CE, FCC, 3C
DATA COMMUNICATION
WWAN	4G Fre:FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28TDD_LTE: B40WCDMA: B1/B2/B4/B5/B8GSM/EDGE: B2/B3/B5/B8Module: SLM770A(EC25-AUX in North America)
WIFI	802.11a/b/g/n/ac Wireless Internet Wireless AP( Mobile AP )2.4G, 5G
Bluetooth	BT 4.2 Version
GPS	BDS, GPS, GLONASS
DATA CAPTUER
Barcode Scanning (optional)	Honeywell N4680, NLS-N1Optical resolution: 5milScanning speed: 30 times /sSupport code: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse"
RFID HF/ NFC	13.56 MHz, Distance: 1-3cm, ISO14443 TYPE A
Fingerprint (optional)	AFM60 Module
High Precision GPS(optional)	UM960 Module (Support RTK)
UHF RFID (optional)	M-500American standard M-500 (902Mhz – 928Mhz)External: card reading distance of 3-5MEuropean standard M-500(865MHz – 868MHz)External: Card reading distance of 3-5MM-301American standard M-301 (902Mhz – 928Mhz)External: card reading distance of 5-8MEuropean standard M-301(865MHz – 868MHz)External: Card reading distance of 5-8M
ACCESSORIES

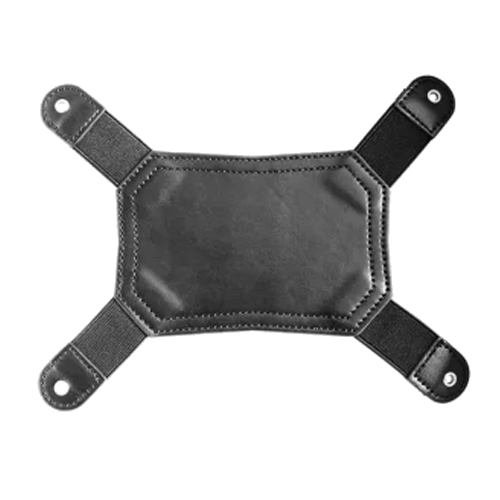

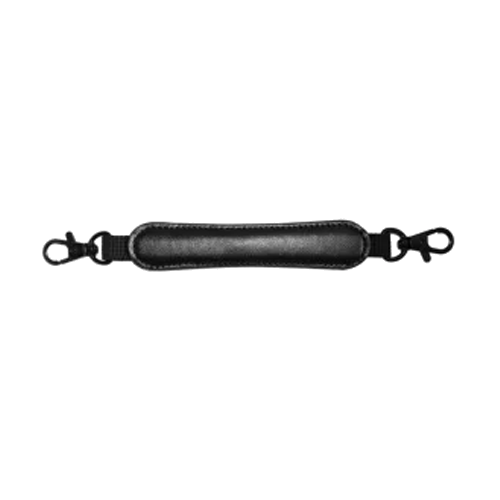

Standard		1xCarry Handle strap; 1xStandard Adaptor,1xWrist strap

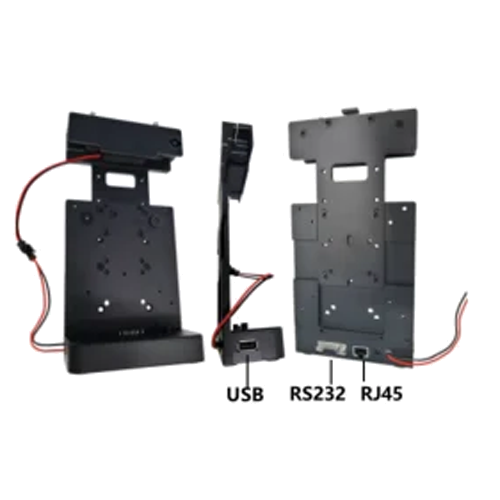

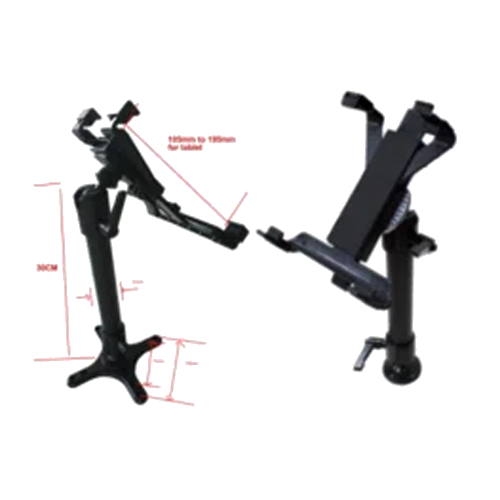

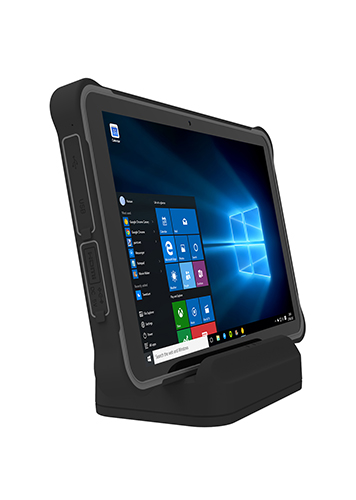

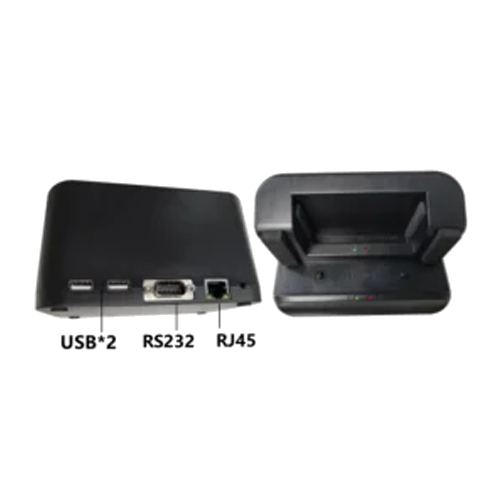

Optional		Car Charger , Car Docking Charger Mount , Car Holder Mount , Docking Charger,Extra spare Battery , Hand writing pen,Active stylus, Removable keyboard.
