| SPECIFICATIONS |
| PHYSICAL CHARACTERISTICS |
| Dimension | 273*172*20mm |
| Weight | 1080±50g |
| Display / Touch Panel | 10.1 inch; 1200*1920; 450nits, 10 Point Touch,Support stylusOptional: 1000nits display(1200*1920) |

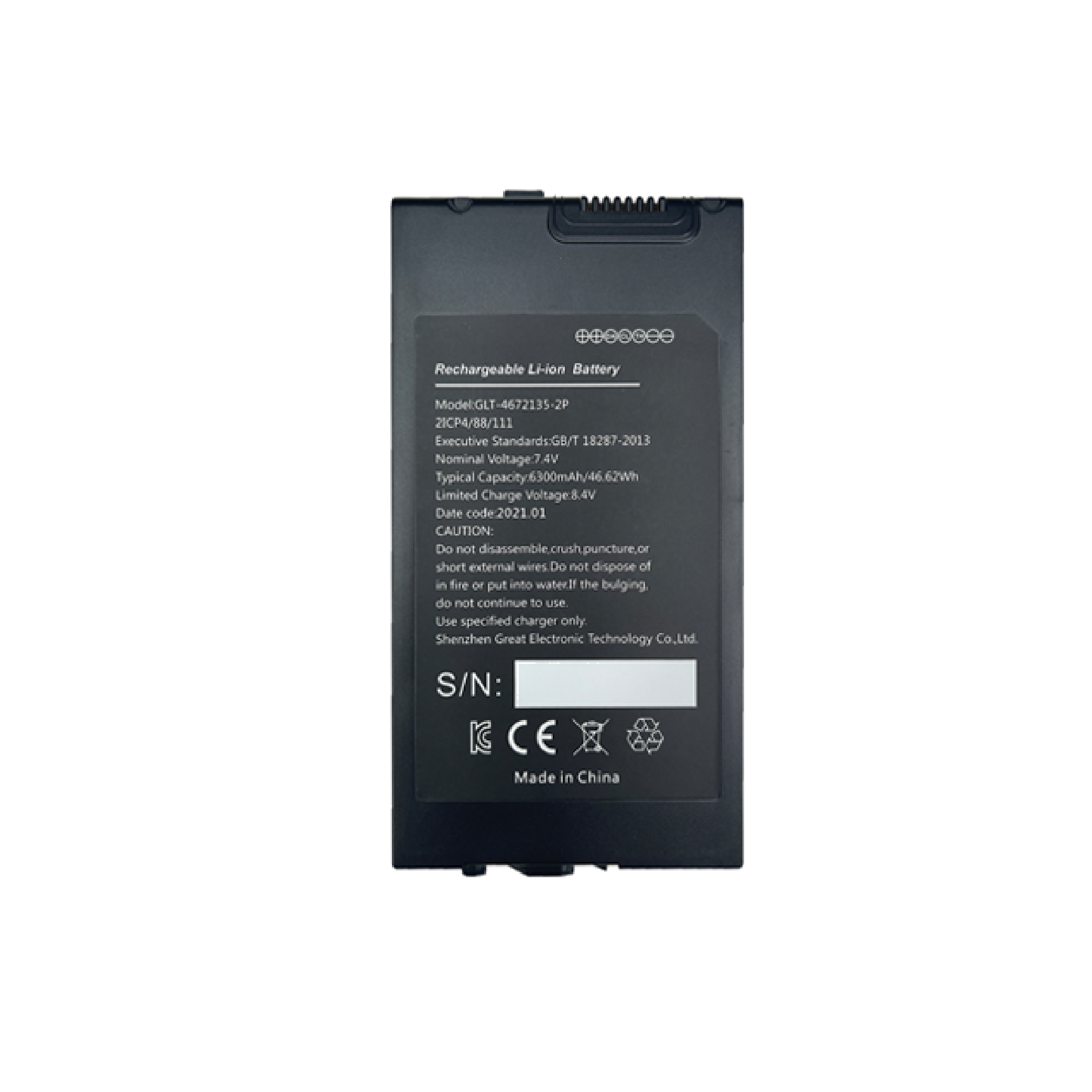

| Battery | Main battery: 12000mAh / voltage 3.8Vdc (45.6Wh)Secondary battery: 2400mAh, Supports hot-swapping |

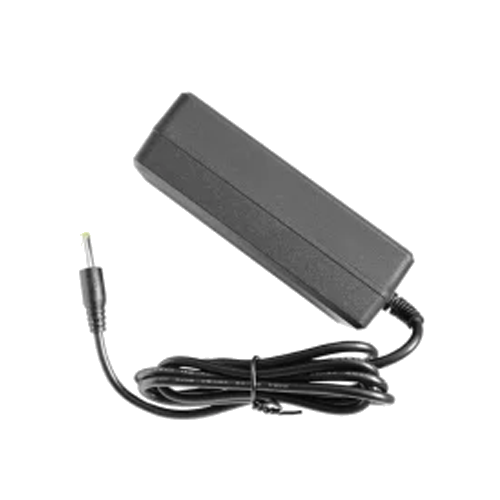

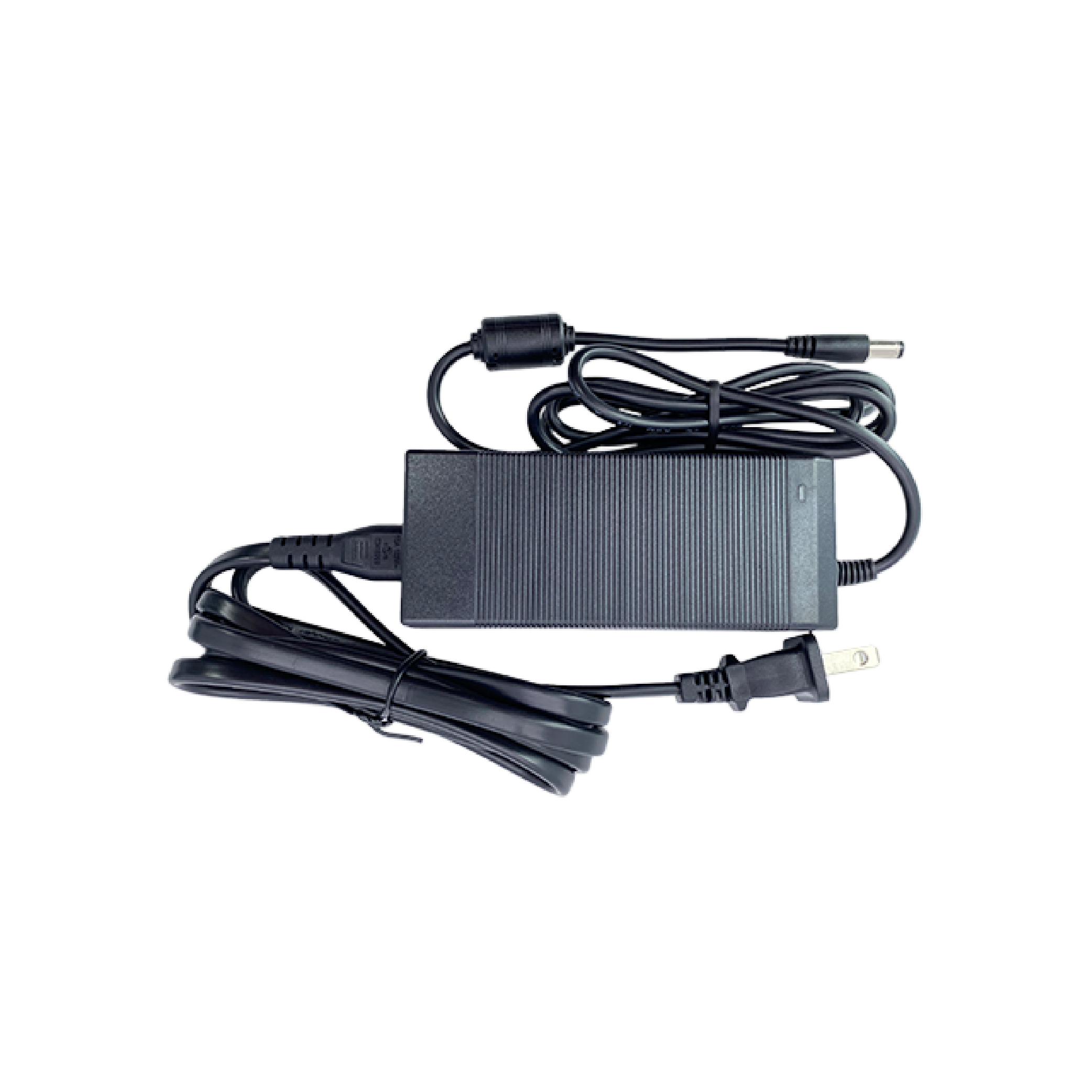

| Power Adapter | DC 5V 3A ∮3.5mmOptional:(EU, US, UK, AU) Choose one of four |
| Speaker | 8Ω 1.5 Watt |
| I/O Interfaces | Type-C *1; OTGSIM Card Slot*1，TF Card Slot*1Earphone*1DC*1; 3.5*12mm，USB 2.0 *1RJ45*1，RS232*1Bottom pogopin: USB 2.0; Charging; RS232Back pogopin: USB 2.0; RS232EDP interface Optional，Reserved interface |
| Buttons | V+ -, Power, "F" for Barcode Scan Customized Button: P,H |
| Camera | Front: 8MP; Real: 16MP, Flash light |
| Multi-Media(Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) |
| PERFORMANCE CHARACTERSTICS |
| CPU | MT6877, Octa Core; 2.4GHz |
| Operating System | Android 15.0 |
| Storage | 8GB/256GB, (Optional 16GB/512GB ) |
| USER ENVIRONMENT |
| Operating Temp. | -20℃ to 55℃ |
| Storage Temp. | -25℃ to 80℃ |
| Humidity | Relative Humidity (93±3)% RH |
| Drop Specifications | Dropping Resistance 1.2 meters |
| IP Protective Level | Anti-dust & Waterproof IP65-IP67 , MIL-STD-810G, ISO, MSDS，CE, FCC, 3C |
| DEVELOPMENT ENVIRONMENT |
| SDK | Dingdata Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| DATA COMMUNICATION |
| WWAN | 5G：N1/N5/N8/N28AB/N78/N41FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28TDD_LTE: B34/B38/B39/B40/B41/B66WCDMA: 850/900/1900/2100CDMA2000: BC0TD-SCDMA: B34/B39GSM: 850/900/1800/1900 |
| WIFI | 802.11a/b/g/n/ac/ax Wireless Internet Wireless AP( Mobile AP )2.4G, 5G; support Wifi 6 |
| Bluetooth | 5.2 Version, backward compatible |
| GPS | BDS, GPS, GLONASS |
| DATA CAPTUER |
| Barcode Scanning (optional) | Honeywell N4680Optical resolution: 5milScanning speed: 30 times /sSupport code: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse" |
| RFID HF（NFC） | 13.56 MHz, Distance: 1-3cm |
| High Precision GPS(optional) | UM960 Module |
| Fingerprint (optional) | AFM60 Module (Support RTK) |
| UHF RFID (optional) | M-500American standard M-500 (902Mhz – 928Mhz)External: card reading distance of 3-5MEuropean standard M-500 (865MHz – 868MHz)External: Card reading distance of 3-5MM-301American standard M-301 (902Mhz – 928Mhz)External: card reading distance of 5-8MEuropean standard M-301 (865MHz – 868MHz)External: Card reading distance of 5-8M |
| ACCESSORIES |

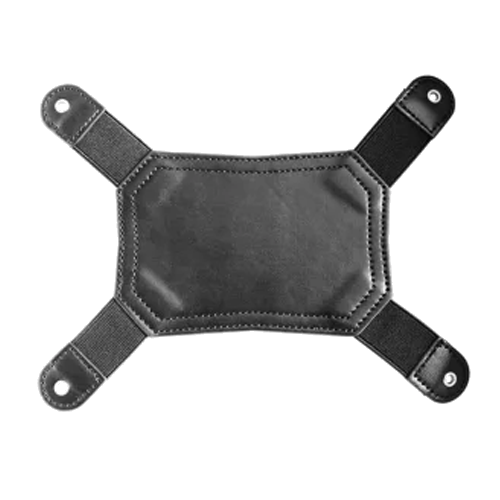

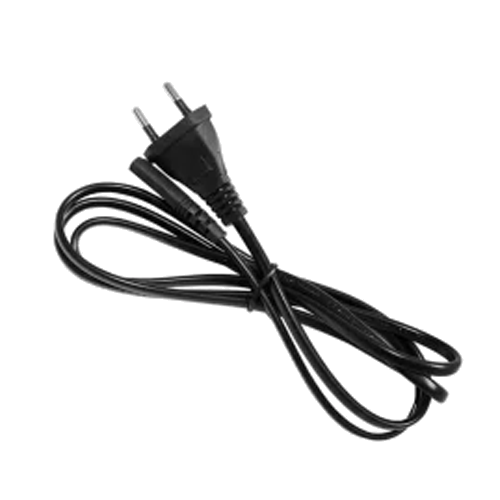

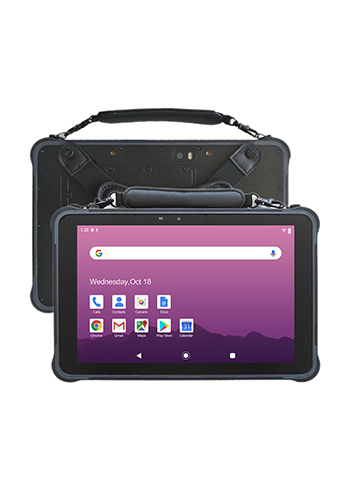

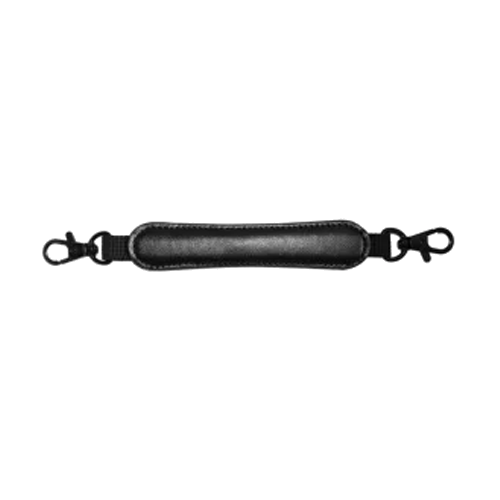

| Standard | 1xCarry Handle strap; 1xStandard Adaptor,1xWrist strap |

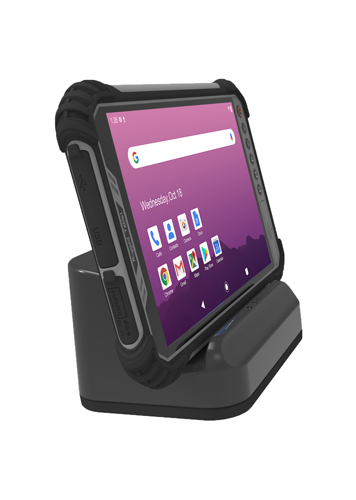

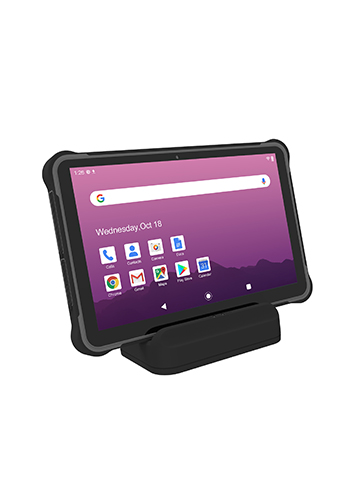

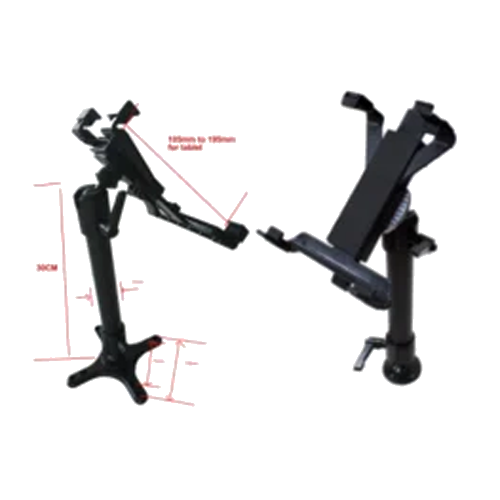

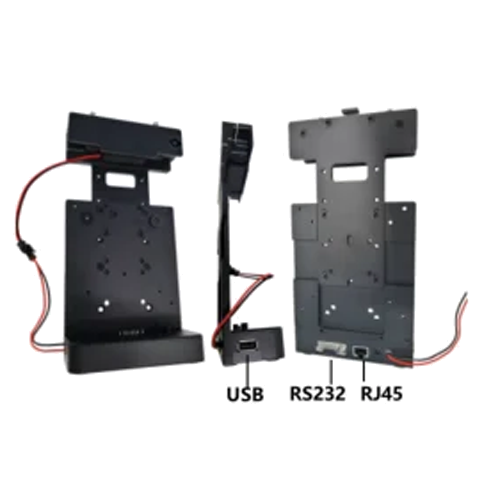

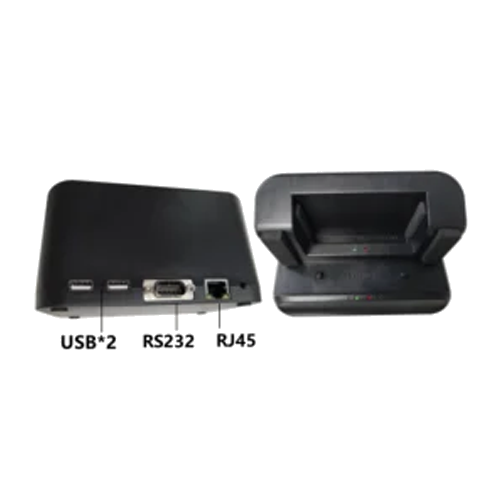

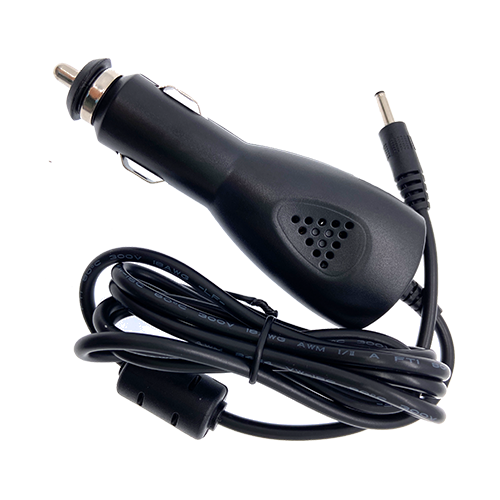

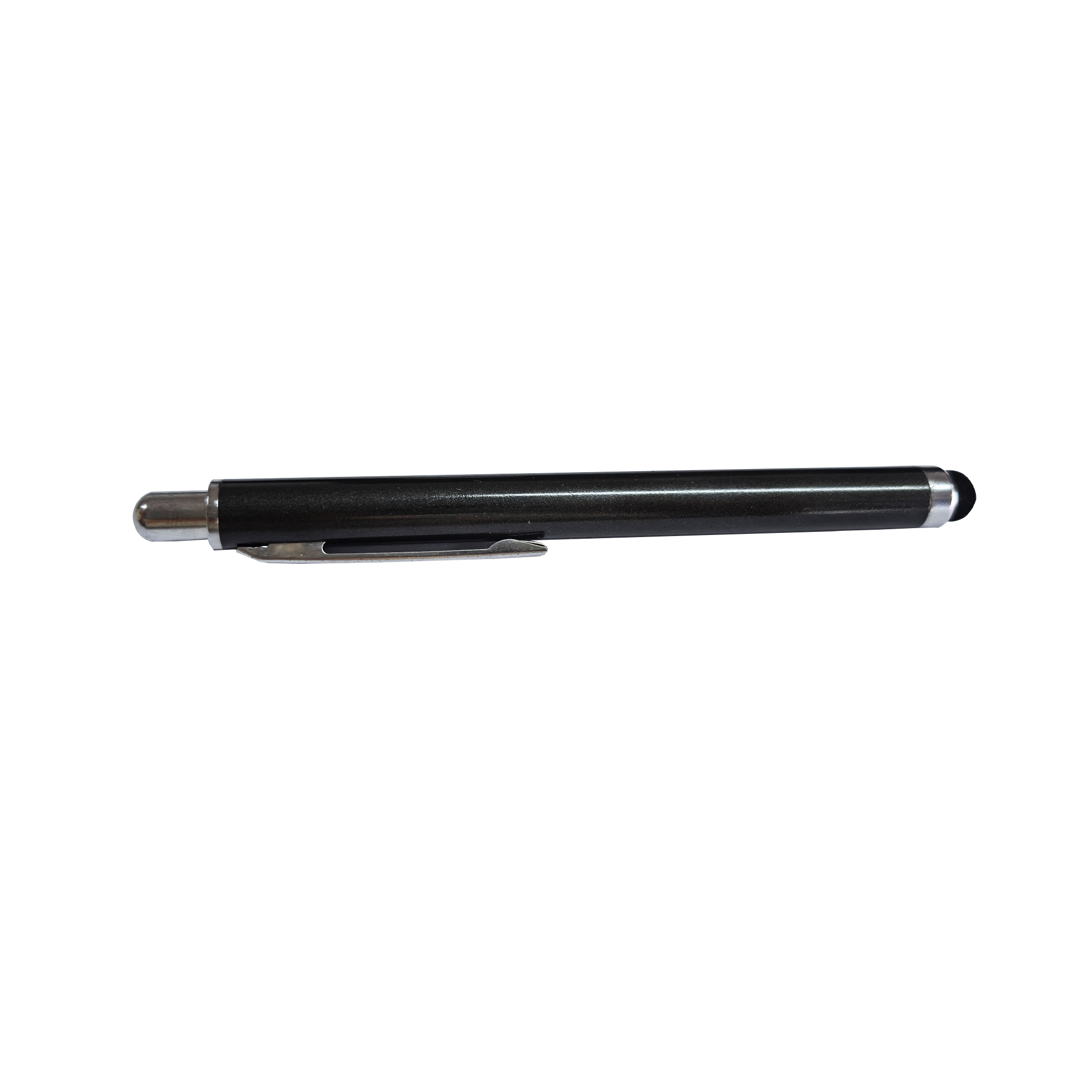

| Optional | Car Charger , Car Docking Charger Mount , Car Holder Mount , Docking Charger,Extra spare Battery , Hand writing pen, Active stylus, Removable keyboard. |
