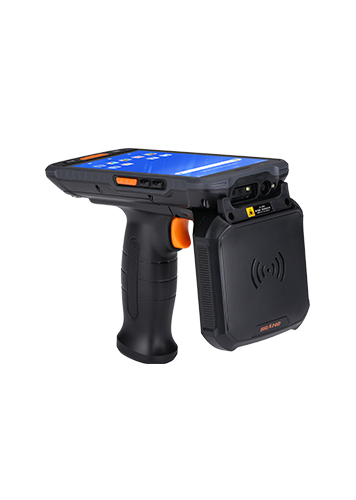

| SPECIFICATIONS |
| PHYSICAL CHARACTERISTICS |
| Dimension | 170.2*78.0*23.3 mm |
| Weight | 585g |
| Display / Touch Panel | 5.5'' IPS LTPS 1440 x 720Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Expansions | Supports up to 128 GB Micro SD card |
| Battery | Li-ion, rechargeable, 9000 mAh 5V-2A/9V -2AStandby: over 500 hoursContinuous use: over 12 hours (depending on user environment)Charging time: 2-3 hours (with standard adaptor and USB cable) |
| Power Adapter | Output DC 5V2A American standard has passed CE certificationOptional:(EU, US, UK, AU) Choose one of four |
| Audio | 1 microphone; 1 speaker; receiver |
| I/O Interfaces | USB 2.0 Type-C, OTG, 2slot for Nano SIM card, 1 TF card,2 PSAM card |
| Buttons/keys | 1 power key,3 scan keys,2 volume keys,1 PTT key,1 menu key,1 return key |
| Camera | 13MP autofocus rear camera with flash, 8MP front camera(optional) |
| PERFORMANCE CHARACTERSTICS |
| CPU | Cortex-A53 2.2 GHz Octa-core |
| Operating System | Android 15/GMS |
| Storage | 4GB+64GB，(optional 6GB+128GB) |
| USER ENVIRONMENT |
| Operating Temp. | -20℃ to 50℃ |
| Storage Temp. | -40℃ to 70℃ |
| Humidity | 5%RH to 95%RH(non-condensing) |
| Drop Specifications | Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range |
| IP Protective Level | IP67 per IEC sealing specifications |
| DEVELOPMENT ENVIRONMENT |
| SDK | Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| DATA COMMUNICATION |
| WWAN | 2G: GSM850/GSM900/DCS1800/PCS19003G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA: A/F4G: B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41 |
| WIFI | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
| Bluetooth | Bluetooth 5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| DATA CAPTUER |
| Barcode Scanning (optional) | Minde 660, ZebraSE4710;1D Symbologies：UPC/EAN,Code128,Code39,Code93,Code11,Interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,RSS,etc.2D Symbologies：PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX),etc. |
| RFID HF（NFC）(optional) | Frequency: 13.56 MHzProtocol:ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.Chips: M1 card (S50, S70), CPU card, NFC tags, etc.Range: 0-5cm |
| RFID (Optional) LF Reader (External big antenna) | Frequency: 134.2K/125KProtocol: Compliant with ISO11784/5 international standard protocolStandard: HDX/ FDX-B/ EMID (full duplex/half duplex)Reading Distance: Animal electronic tag FDX-B is around 1-35CM, and EMID is around 1-15CMSupporting chip: EM4305,HITAG256,TK4100,EM4100,EM4200,EM1001,T5577Reading speed: 30M/SRead location: Directly in front of the device (shield position) |

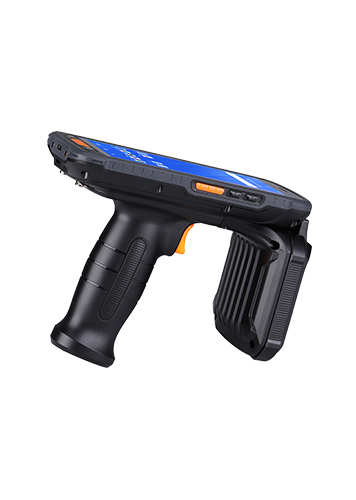

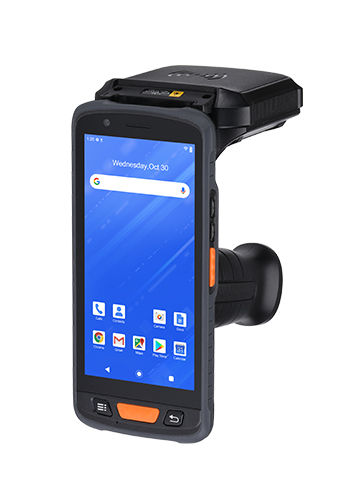

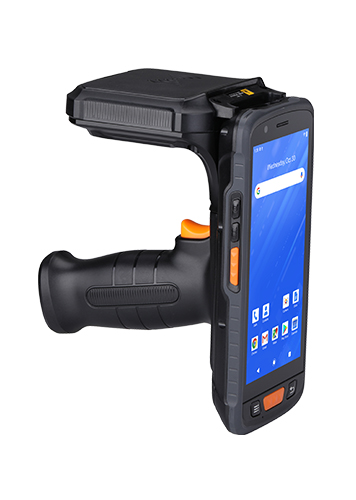

| RFID (Optional)UHF Reader (External big antenna) | Engine: Impinj E710, Impinj R2000Frequency: 865-868 MHz / 920-925 MHz / 902-928 MHzProtocol: EPC C1 GEN2 / ISO18000-6CAntenna: Circular polarization (4dBi), linear polarization(1.8dBi)Power: 33 dBm, for Latin America, etc.)Max Read Range: 0-25M（Depends on RFID tag size）Fastest Read Rate: 1200+ tags/sec (circular polarization) |
| ACCESSORIES |

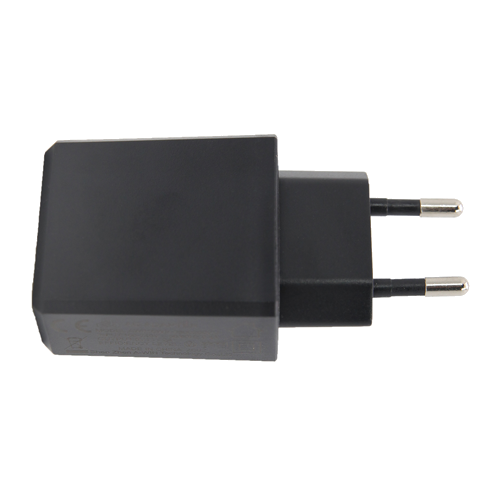

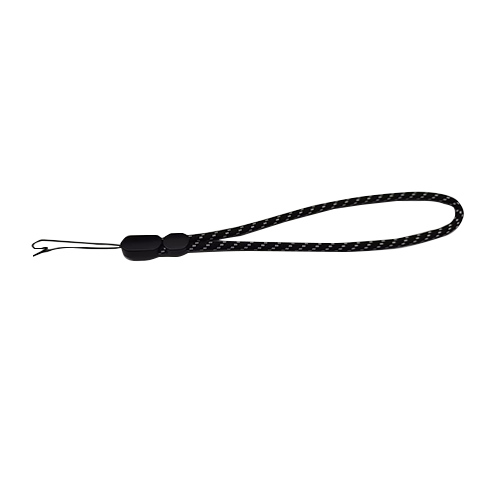

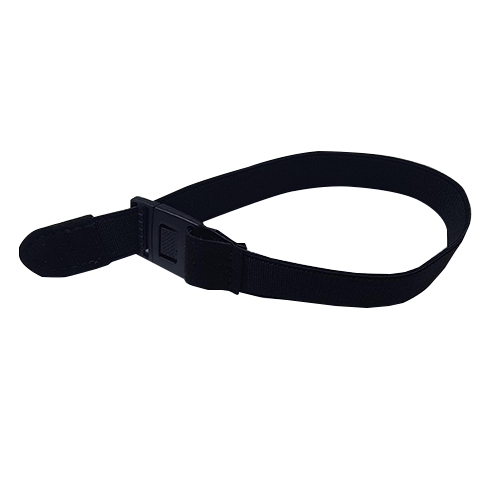

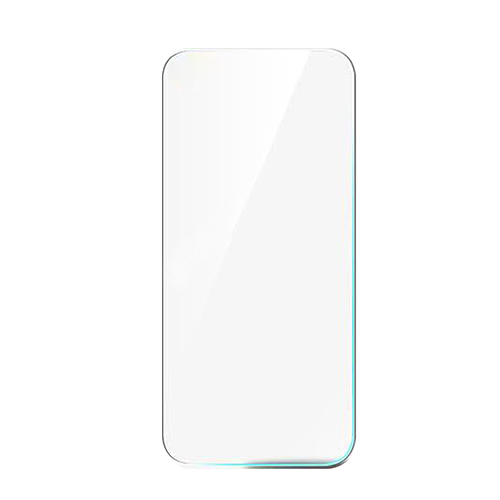

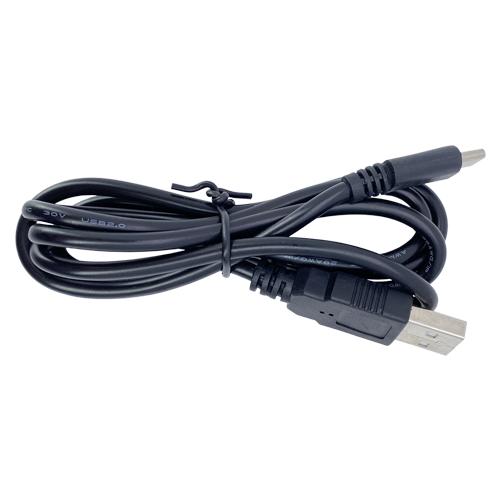

| Standard | 1xCharger adapter with USB Cable; 1xHand-strap; 1xScreen Protector |

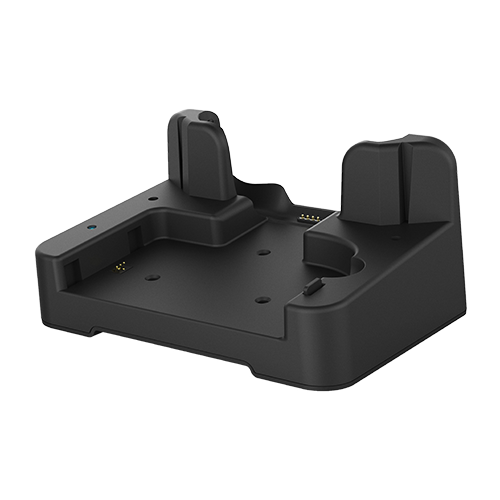

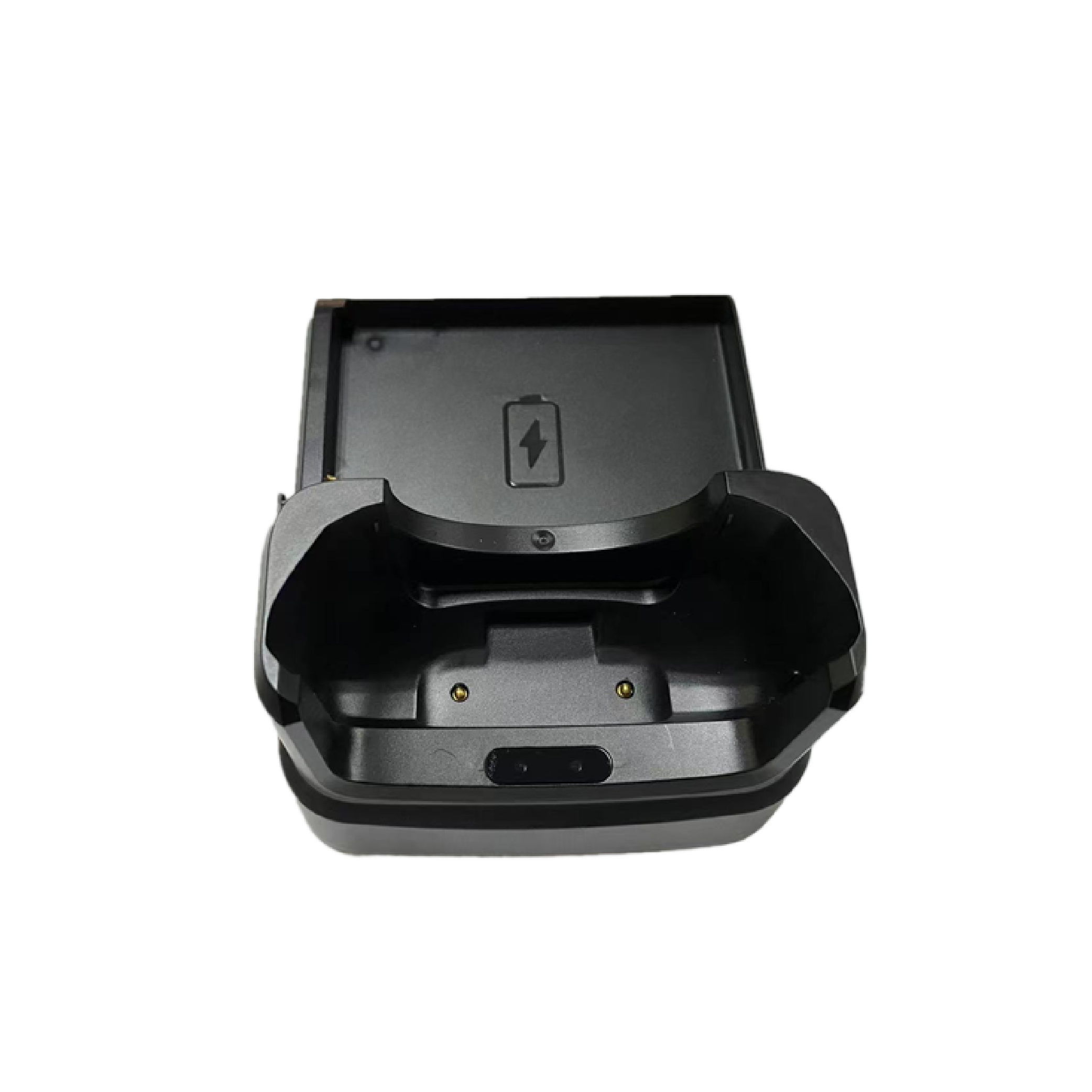

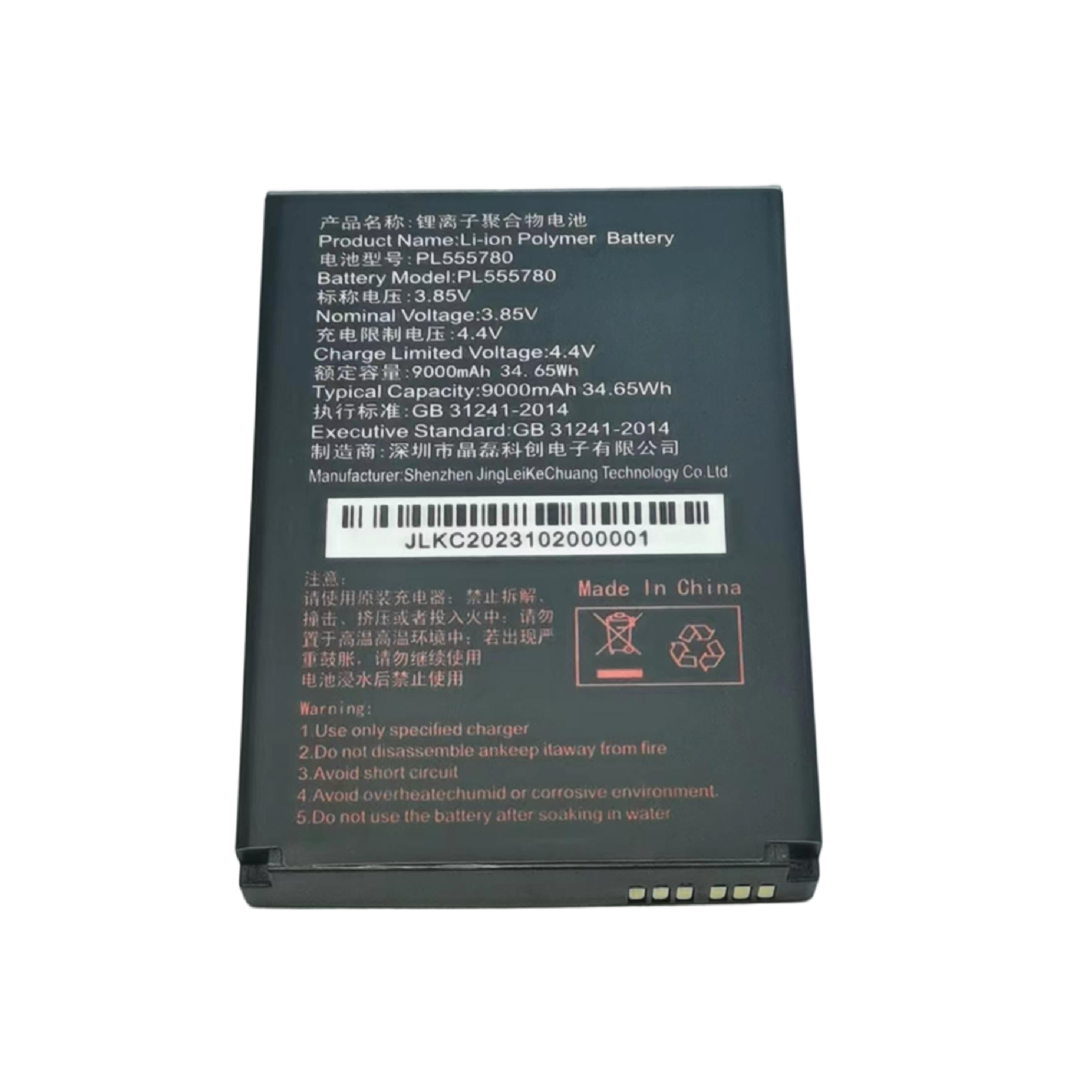

| Optional | Docking Charger，Replacement Spare battery |
