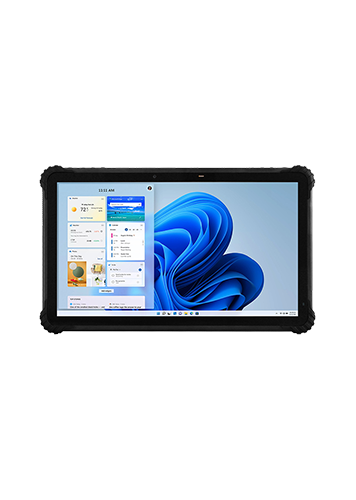

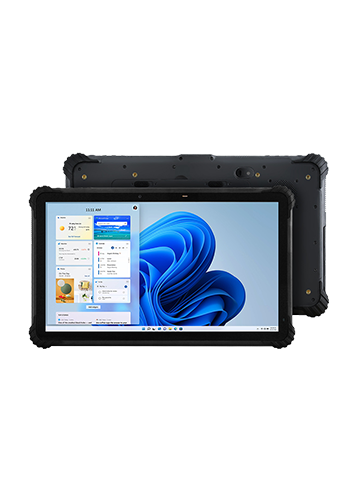

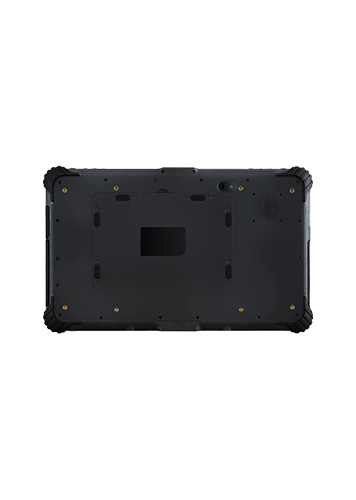

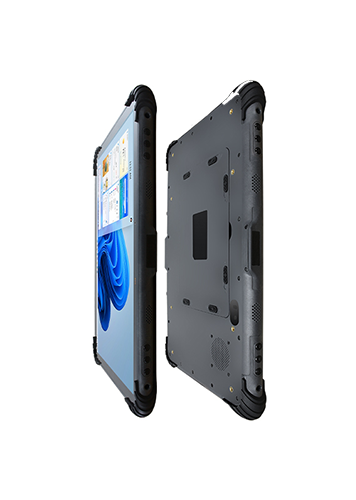

T13S

Hot sale & Classical 13.3 inch Rugged Tablet

Full-Features to Deliver the Best Service

Easy to carry 2 in 1 Rugged Tablet PC, switch between tablet or laptop at any time. T13S support for Windows 11 system and 1920x1200 FHD high score screen, Intel I5/I7 CPU with Corning gorilla TP and sunshine visual screen. Removable 16000mAh battery, 8-10 hours of machine endurance and standby is not a problem. With multilingual (waterproof) detachable keyboard, it can easily deal with various possibilities. Support 1D/2D, NFC and other functional modules for free selection and up to IP65 high protection level, in accordance with 5G Global Communication LTE.

Features
Specification
Accessories
Download


SPECIFICATIONS
PHYSICAL CHARACTERISTICS
Dimension	33020519.5mm
Weight	1450±50g
Display / Touch Panel	13.3 inch; 1080*1920; IPS 260nits (MIN),450nits (TYP)10 Point Touch, Support stylus
Battery	8000mAh / voltage 7.6Vdc (60.80Wh)Optional:(EU, US, UK, AU) Choose one of four
Power Adapter	DC Charger (12V 4A)
Speaker	8Ω 0.8 Watt *2

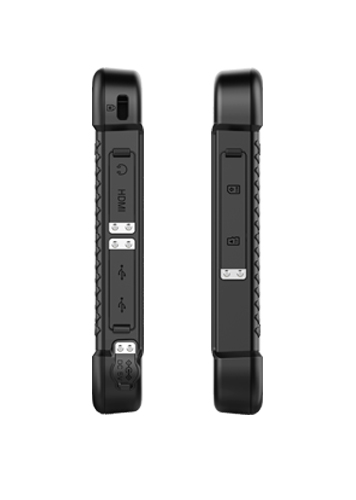

I/O Interfaces	1. HDMI Type A12. USB3.023. Anti-theft lock hole4. Aviation interface x2: customized interface & RS232 (RS232 not fully functional, only TX RX GND)5. Card slot: SIM card slot+TF card slot6. Headphone Jack：∮3.5mm Standard headphone interface7. Ethernet RJ45：10/100/1000M8. DC power interface：DC ∮4.0mm power interfaceBottom pogopin: USB 2.0; RS232; Charging

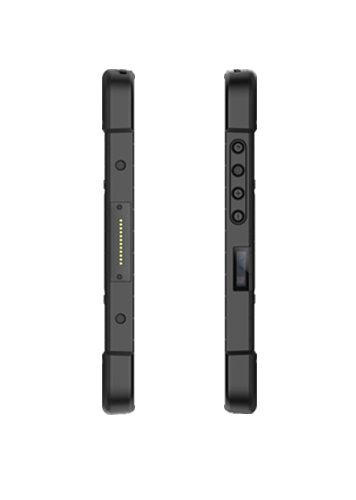

Buttons	V+ -, Power, "F" for Barcode Scan，Customized Button: P, H(Default No Functionality)
Camera	Front: 5MP; Rear: 8MP
Multi-Media(Hardware Decoding)	1. Photo Viewer: BMP, JPG, GIF, PNG2. Video Format: MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
PERFORMANCE CHARACTERSTICS
CPU	Intel Celeron N5100 (Quad Core, Quad Threads; 1.10GHz, Trubo can reach 2.80GHz)
Operating System	Windows 11 Pro(Optional:Home/IOT)
Storage	RAM：8GB，ROM:256GBRAM：4GB Optional，ROM：128GB / 512GB Optional
USER ENVIRONMENT
Operating Temp.	-20℃ to 55℃
Storage Temp.	-25℃ to 80℃
Humidity	Relative Humidity (93±3)% RH
Drop Specifications	Dropping Resistance 1.2 meters
IP Protective Level	Anti-dust & Waterproof IP65, MIL-STD-810G,ISO-9001,CE, FCC, 3C
DATA COMMUNICATION
WWAN	4G Fre:FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28TDD_LTE: B40WCDMA: B1/B2/B4/B5/B8GSM/EDGE: B2/B3/B5/B8Module: SLM770A(EC25-AUX in North America)Optional EU 4G Module
WIFI	802.11a/b/g/n/ac/ax wireless internet Wireless AP ( Mobile AP )2.4G, 5GSupport WIFI 6
Bluetooth	4.2 Version
GPS	BDS, GPS, GLONASS
DATA CAPTUER
Barcode Scanning (optional)	Honeywell N4680Optical resolution: 5milScanning speed: 30 times /sSupport code: PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse"
RFID HF/ NFC	13.56 MHz, Distance: 1-3cm, ISO14443 TYPE A
ACCESSORIES
Standard		1xStandard Adaptor,1xHand-strap,1xCarry handle
Optional		Active capacitive pen, Car Charger, Car Docking,Hand writing pen,Removable keyboard, Shoulder girdle, Car hold mount.

Standard_Accessories

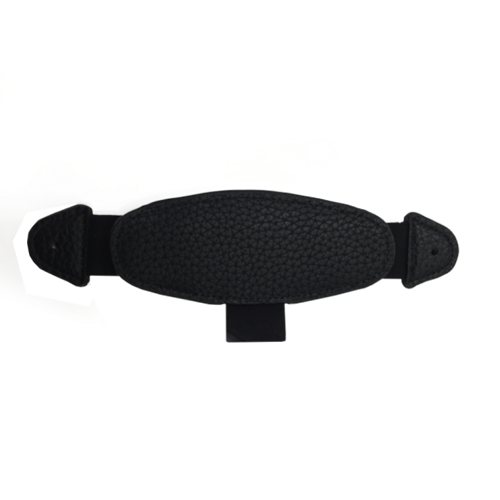

Carry handle

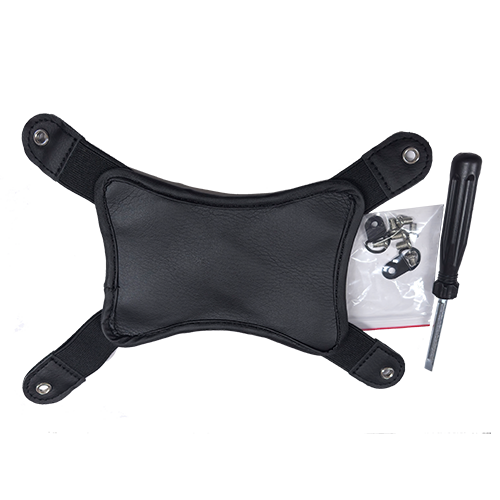

Hand-strap

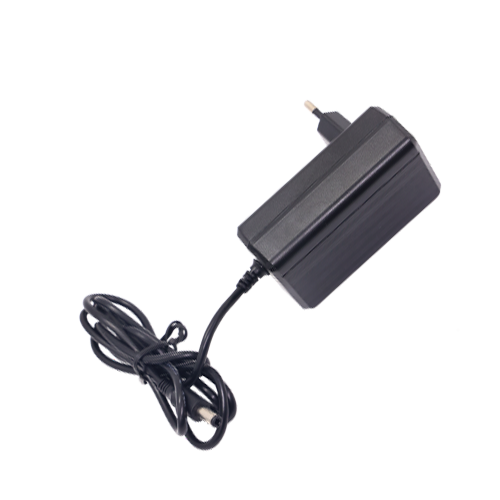

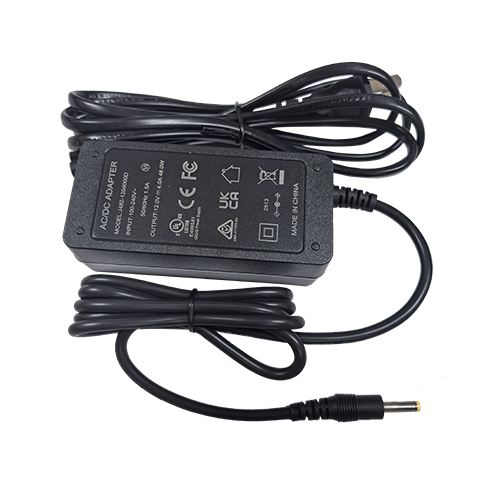

Standard Adaptor

Optional_Accessories

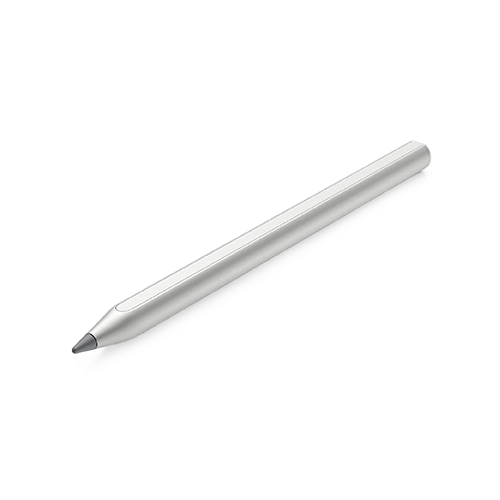

Active capacitive pen

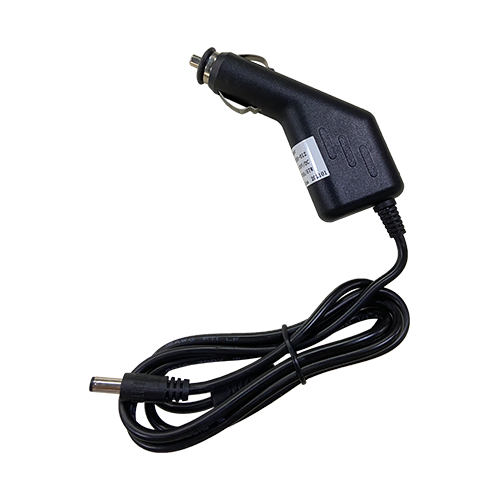

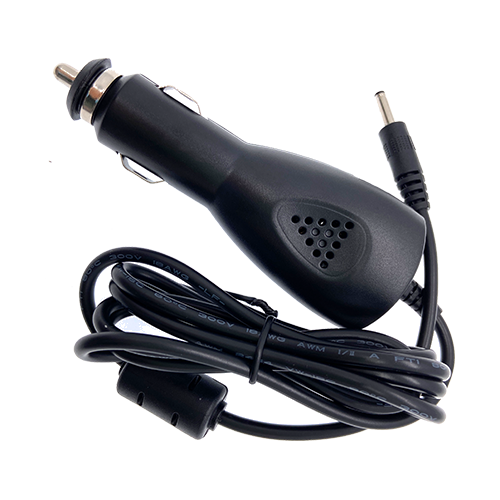

Car Charger

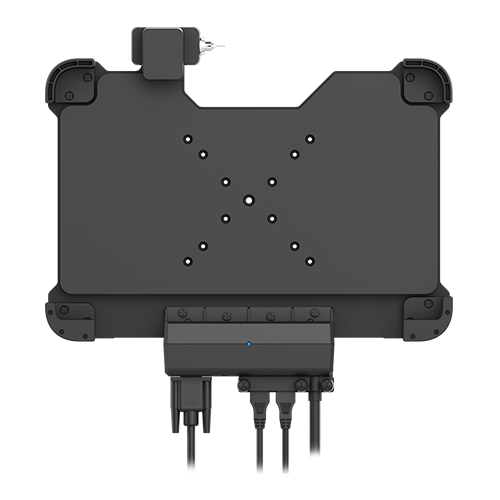

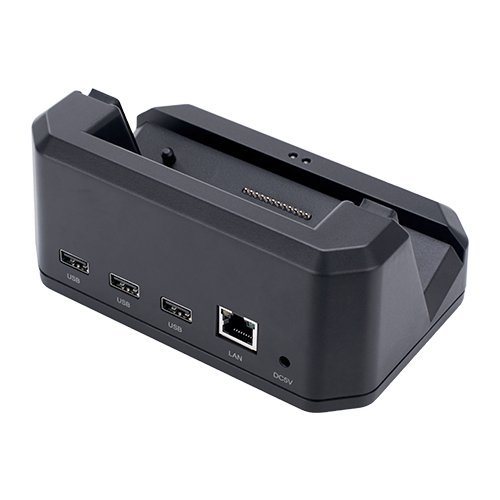

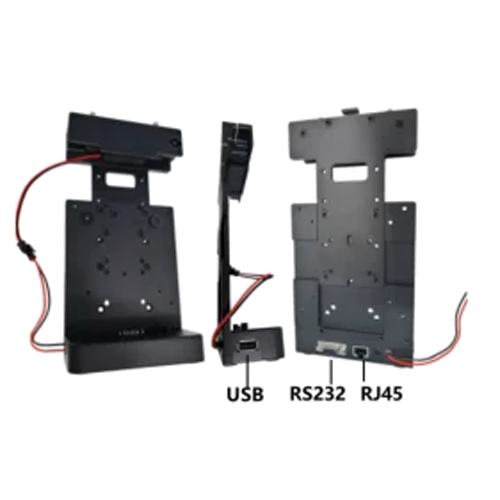

Car Docking

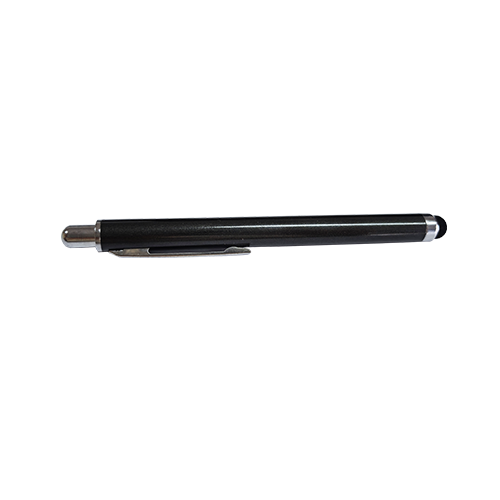

Hand writing pen

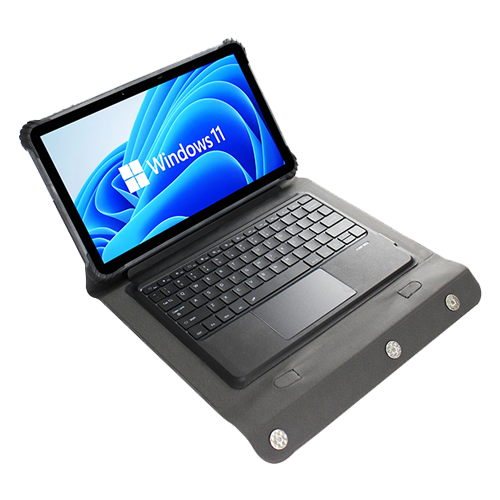

Removeable keyboard

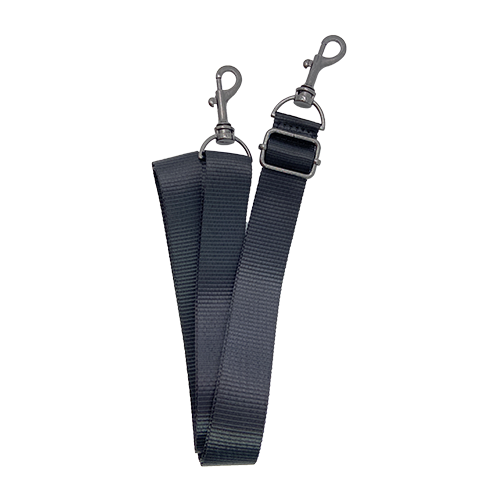

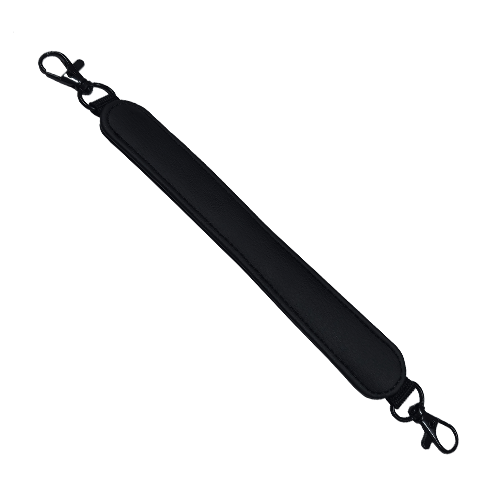

Shoulder girdle
