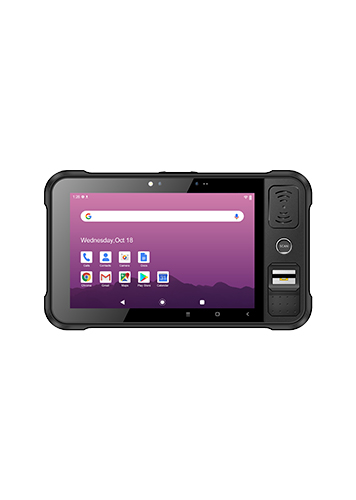

D80U

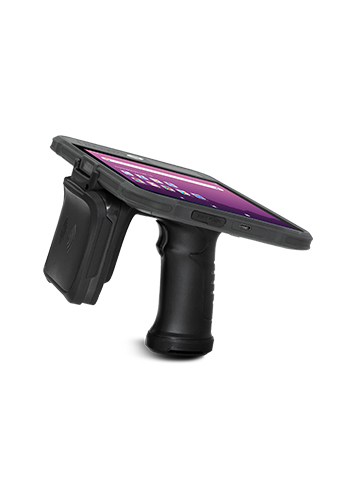

Multifunctional Rugged UHF Tablet

Full-Features to Deliver the Best Service

D80U with abundant functions is an Android 9 rugged tablet. With its powerful Qualcomm CPU, 8 inch high-definition screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, HF RFID/NFC, fingerprint recognition, etc., you can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.

Features
Specification
Accessories
Download


Standard_Accessories

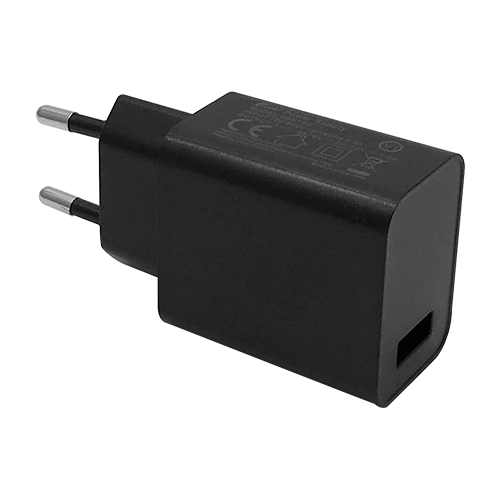

Adapter

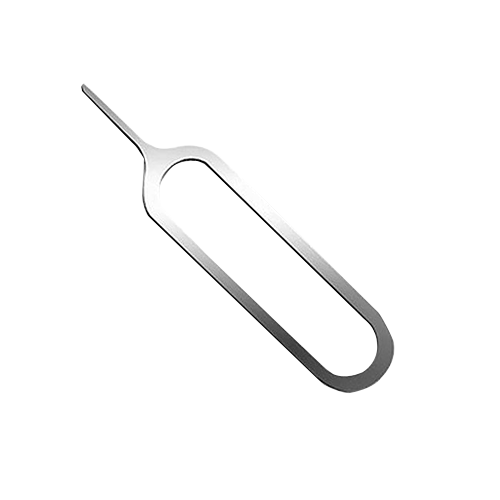

Sim Tray Ejector

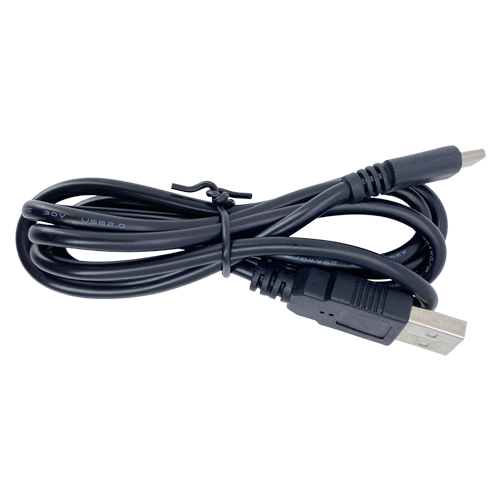

USB Cable

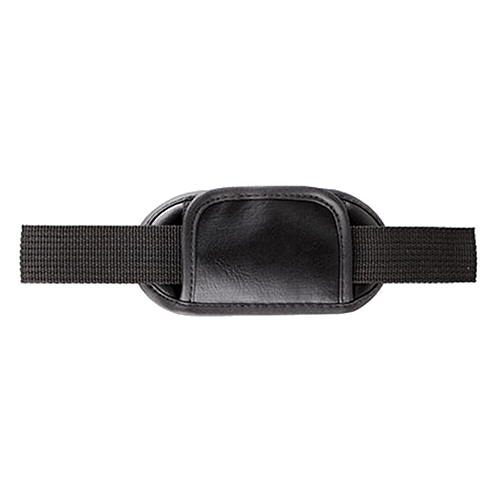

Wrist Strap

Optional_Accessories

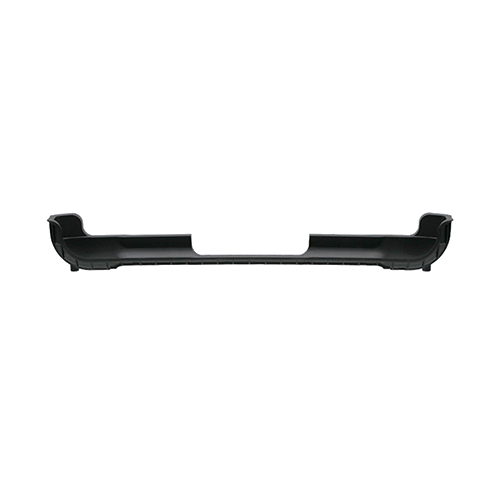

Cradle cup

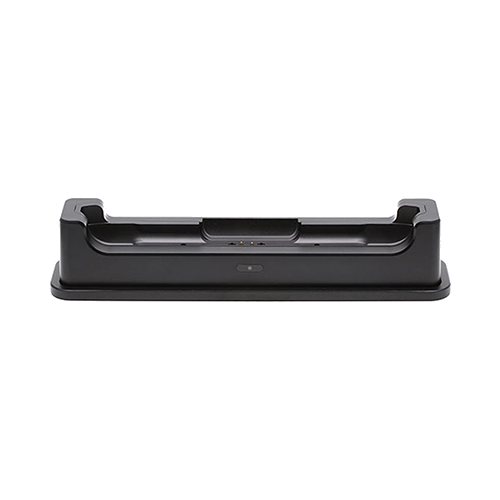

Docking Charger Cradle

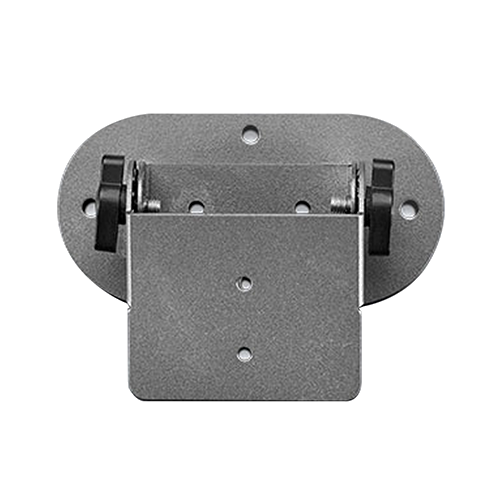

Holder

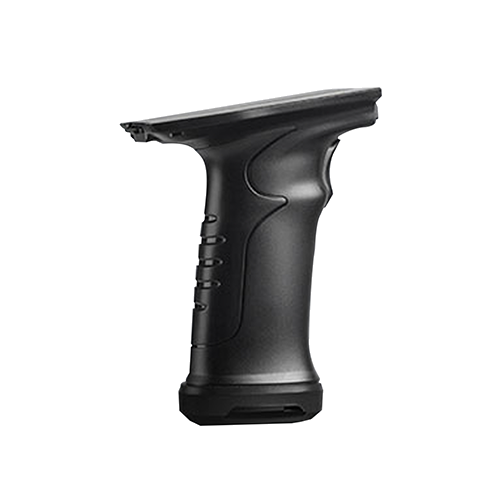

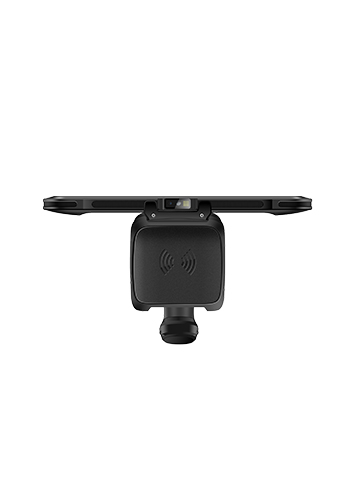

Pistol Grip

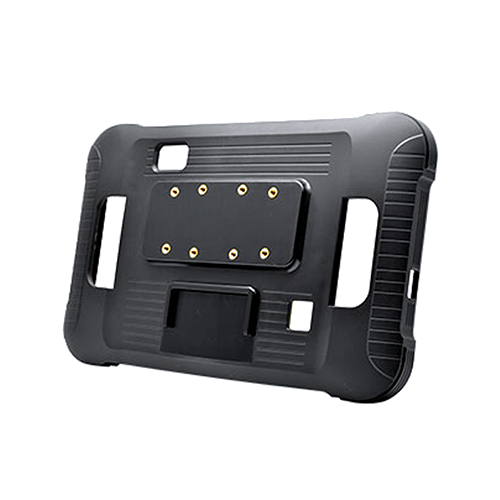

Rugged Rubber Boot

Model	D80U
Dimension	250.8 x 152.0 x 15.0 mm
OS	Android 9
CPU	Qualcomm 1.8 GHz Octa-core
Weight	700 g ( for standard version )
Display	8'' IPS LTPS
Memory	3 GB + 32 GB / 4 GB + 64 GB (optional)
Battery Capacity	Main battery: Li-ion, rechargeable, 8000 mAh . Standby: over 500 hours Continuous use: over 10 hours (depending on user environment),Charging time: 5-7 hours (with standard AC adaptor and USB cable)
Expansion slot	Micro SD(TF) card slot up to 128GB
Resolution	1920 x 1200 / IPS LTPS 1280 x 800
Keypad	1 front key, 1 volume key, 1 power key, direction key (Optional)
Sensor	Accelerometer sensor, light sensor, proximity sensor; geomagnetic sensor, gyroscope
Expansion Slot	1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots
2D barcode (Optional)	Zebra SE4710 (standard) , Zebra SE4850 (optional)
IP rating	IP65 per IEC sealing specifications
Drop Resistance	Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Camera	Rear camera 13MP AF with LED flash, Front Camera 5MP FF
Interface Configuration	USB 2.0 Type-C, OTG
3G/4G (Optional)	WWAN (Europe, Asia):4G: TDD-LTE: B34/B38/B39/B40/B41,FDD-LTE: B1/B3/B5/B7/B8/B20WWAN(America):4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B
Operate Temperature	-20°C ～ 50 °C
Store Temperature	-40°C ～ 70 °C
NFC/RFID	Supporting agreement: 13.56 MHz, ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Wifi	Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6
Bluetooth	Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
GNSS	GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
RFID UHF(Optional )	(Protocol standard: ISO18000-6C protocolFrequency 865-868 MHz / 920-925 MHz / 902-928 MHz(For detailed specification, please check D80U UHF part.)
Fingerprint (Optional)	TCS1 / TCS2 Capacitive or Optical Morpho CBM-E3(For detailed specification, please check D80U Fingerprint part.)
PSAM (Optional)	2 PSAM card slots, Protocol ISO7816
