Home > Products > Handheld Terminal PDA > H60

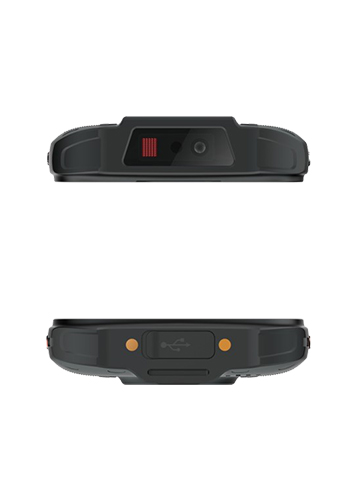

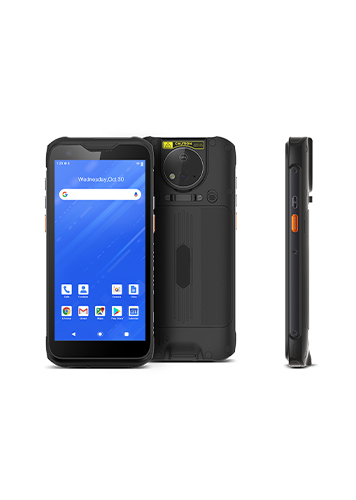

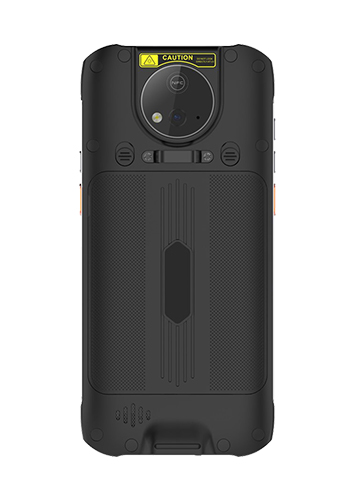

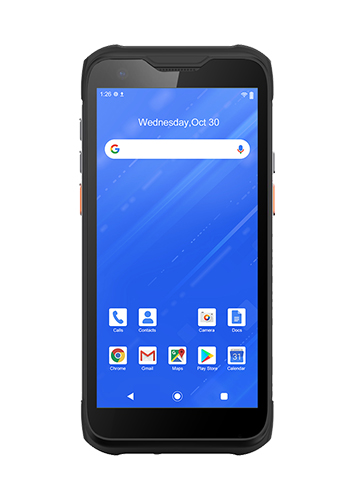

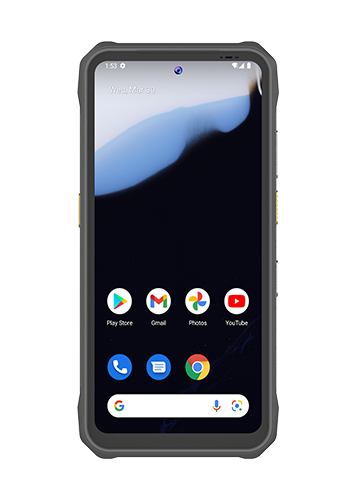

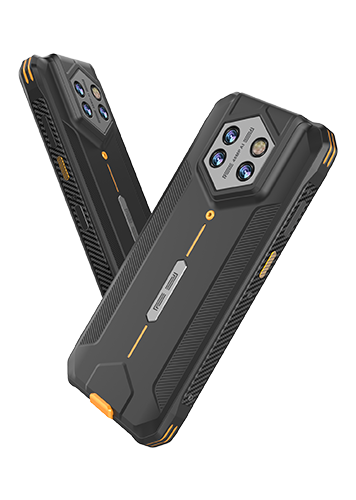

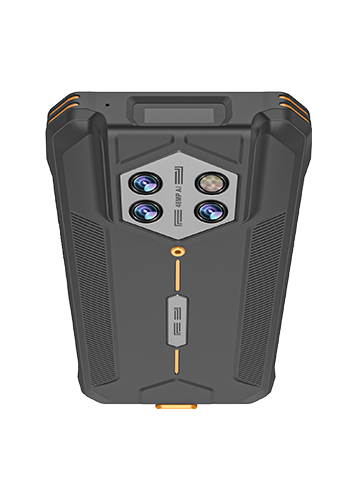

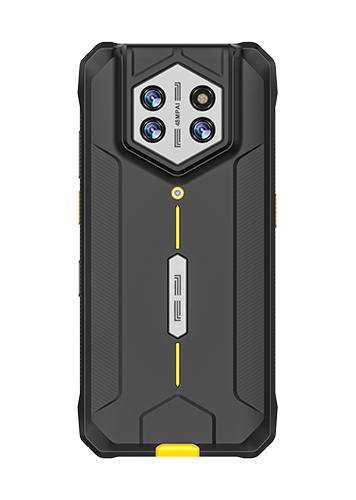

H60

6.56 inch Rugged IP68 Handheld PDA

Built for Tough Environments

With its immersive 6.56" screen, the H60 delivers exquisite visuals for you. Enjoy seamless tapping, multi-touching, and swiping with gloved or wet hands. 33W super Fast/Rapid charging. It boasts an lP68 rating and can withstand drops from up to 1.5 meters. with a ruggedesign, professional-grade materials, and the use of waterproof components andadvanced craftsmanship, this H60 delivers a new sensory experience with comprehensive protection. With an optional long-range scanning engine, it cancapture 1D/2D barcode.from distances of up to 10 meters, providing unparaleled accuracy and versatility.

Features
Specification
Accessories
Download


Model	H60
Dimension	170.280.714mm
OS	Android 14
CPU	MT6789Octa-core, two cores of 2.2GHz + six cores of 2.0GHz2A76 2.2GHz6A55 2.0GH
Weight	311g (device with battery)
Display	Type: TFTSize: 6.56-inch 20:9 Resolution: 720*1612Brightness: 670 NitSupport wet hand and glove touchPolyRainbow Cover, 5-point capacitive screen, Hardness above 7H, Scratch-resistant.
Memory	8GB + 128 GB / 8 GB + 256 GB
Battery Capacity	Built-in Polymer Lithium-ion Battery3.85V/5800mAh Charging Power: 33W/PD 3.0 PPS ProtocolBattery Life: About 17h24min (Default 70dB volume; Default 300nits screen brightness; Playing 1080P HD video)Charging Time: About 1h50min
I/O Interfaces	Type C 1 (Charging/Data/Earphone/Reverse Charging 6W）TF Card1SIM Card 2 Pogo Pin (Charging) 1

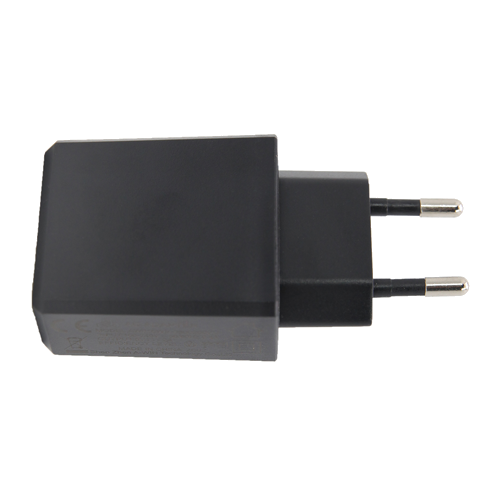

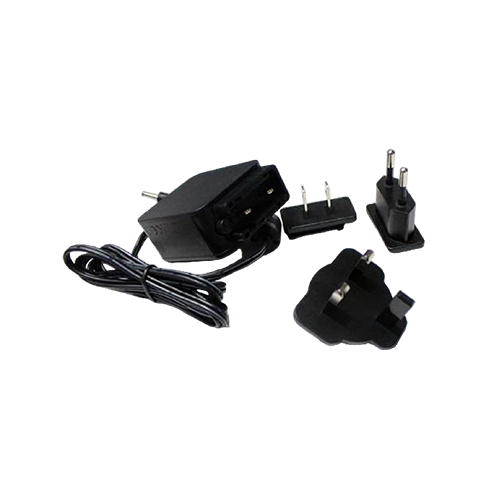

Power Adapter	33W Fast Charge Adapter
SDK	Support software Development Kit
Buttons	Power & Fingerprint 1Volume + Key 1Volume - Key 1Barcode Scanning Key 2 (Barcode scanning by default)
GPS	Supports GPS/Beidou/Galileo/GLONASSSupports AGPSCold Start Time: less than 60 seconds
1D/2D barcode (Optional)	Standard Zebra 4710, Optional Newland CM60 and Honeywell 6803FR (long-range scanner).
IP rating	IP68 per IEC sealing specifications
Drop Resistance	Multiple 1.5 m / 4.9 ft. drops (at least 28 times) to the concrete across the operating temperature range
Camera	Rear 48MP Autofocus with flash , Front Camera 32MP FF
Fingerprint	Power On/Off & Fingerprint 2-in-1，Support fingerprint unlocking
3G/4G LTE	GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDD(B34/38/39/40/41)+FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20//25/26/28A/28B/30/66)
Operate Temperature	-20°C ～ 55 °C
Store Temperature	-40°C ～ 70 °C
NFC/RFID	Supports ISO18092, ISO14443 A/B, ISO15693 protocols, Mifare compliance，Card reading distance from 0 to 4 cm; Frequency:13.56MHz
Wifi	WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G Dual-band WIFI, Supports AP seamless roaming
Bluetooth	BT5.1 (BLE) class1 Transmission Distance: 30m

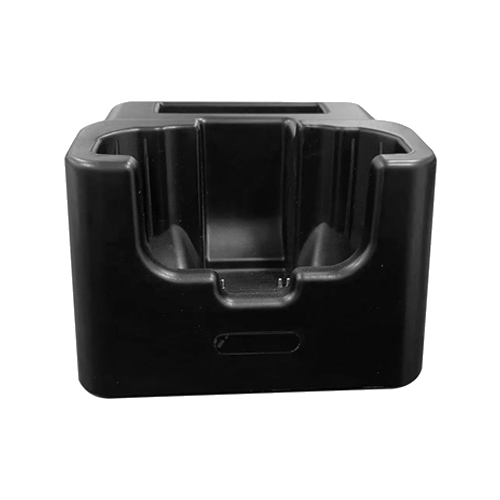

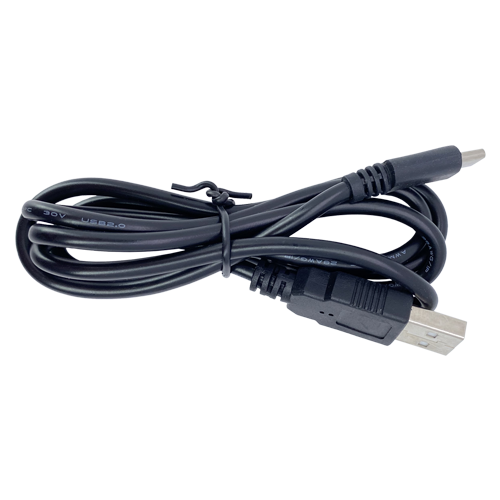

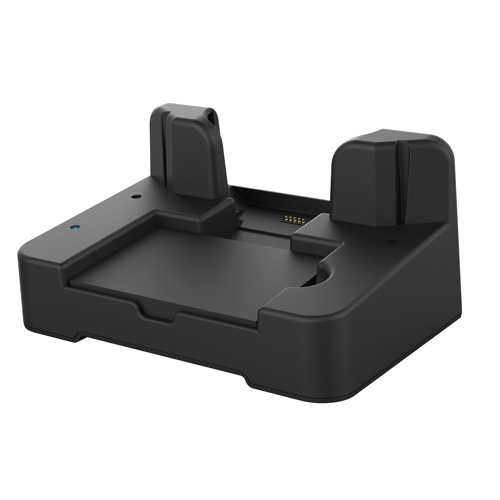

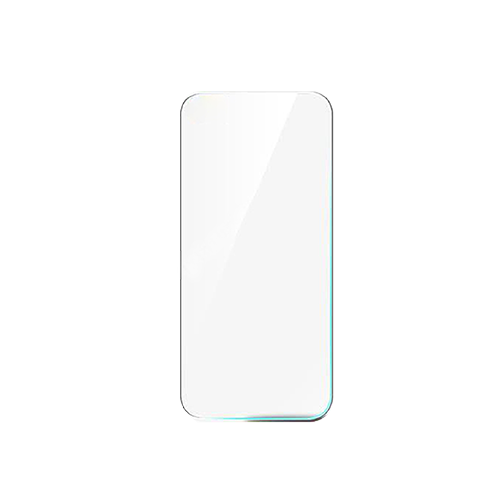

Accessories	Adaptor, USB Cable, Charging Cradle,Tempered Glass Film,Hand strap etc.
